Data List Reference Table

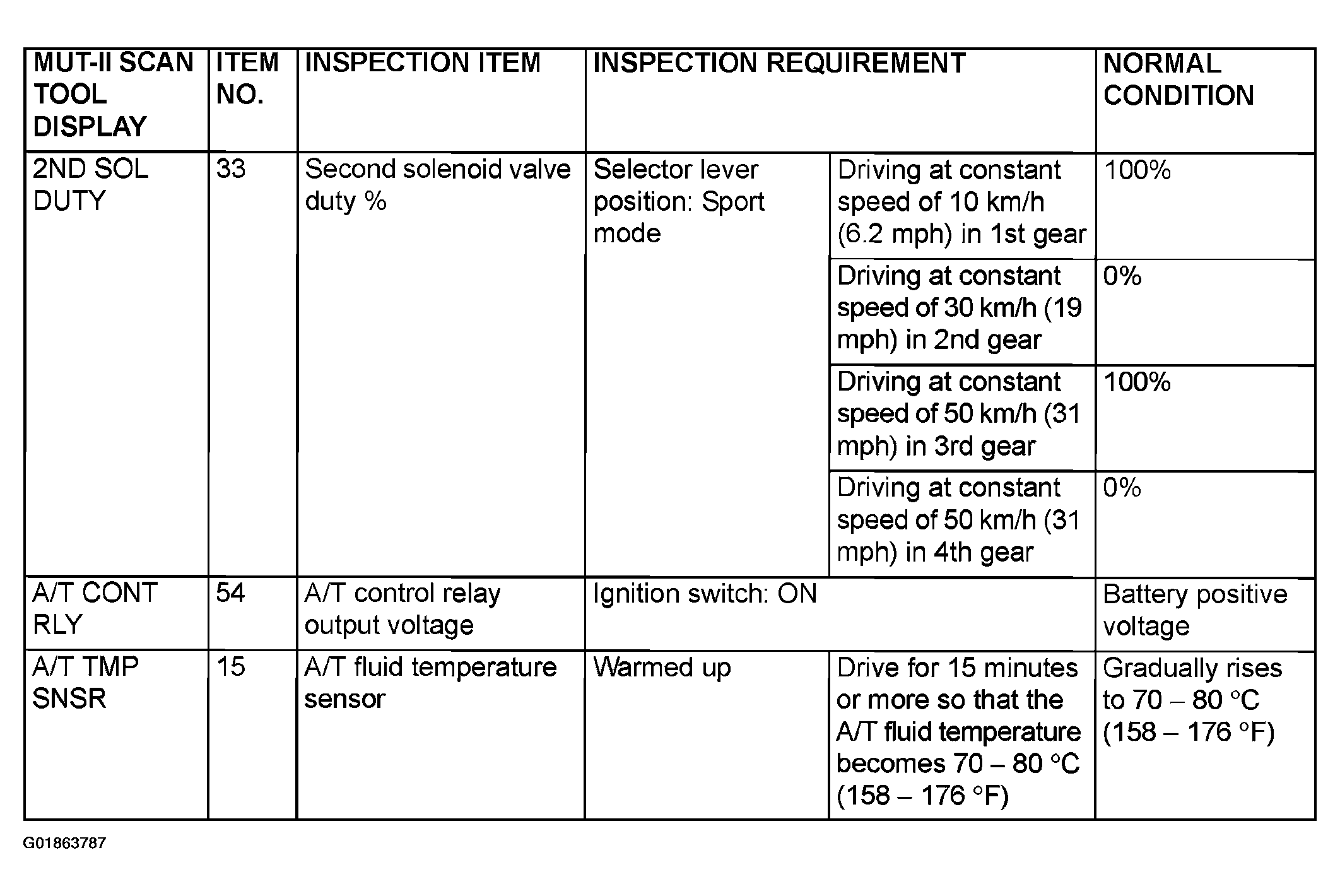

Fig 1: Data List Reference Chart (1 Of 5)

G01863787

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

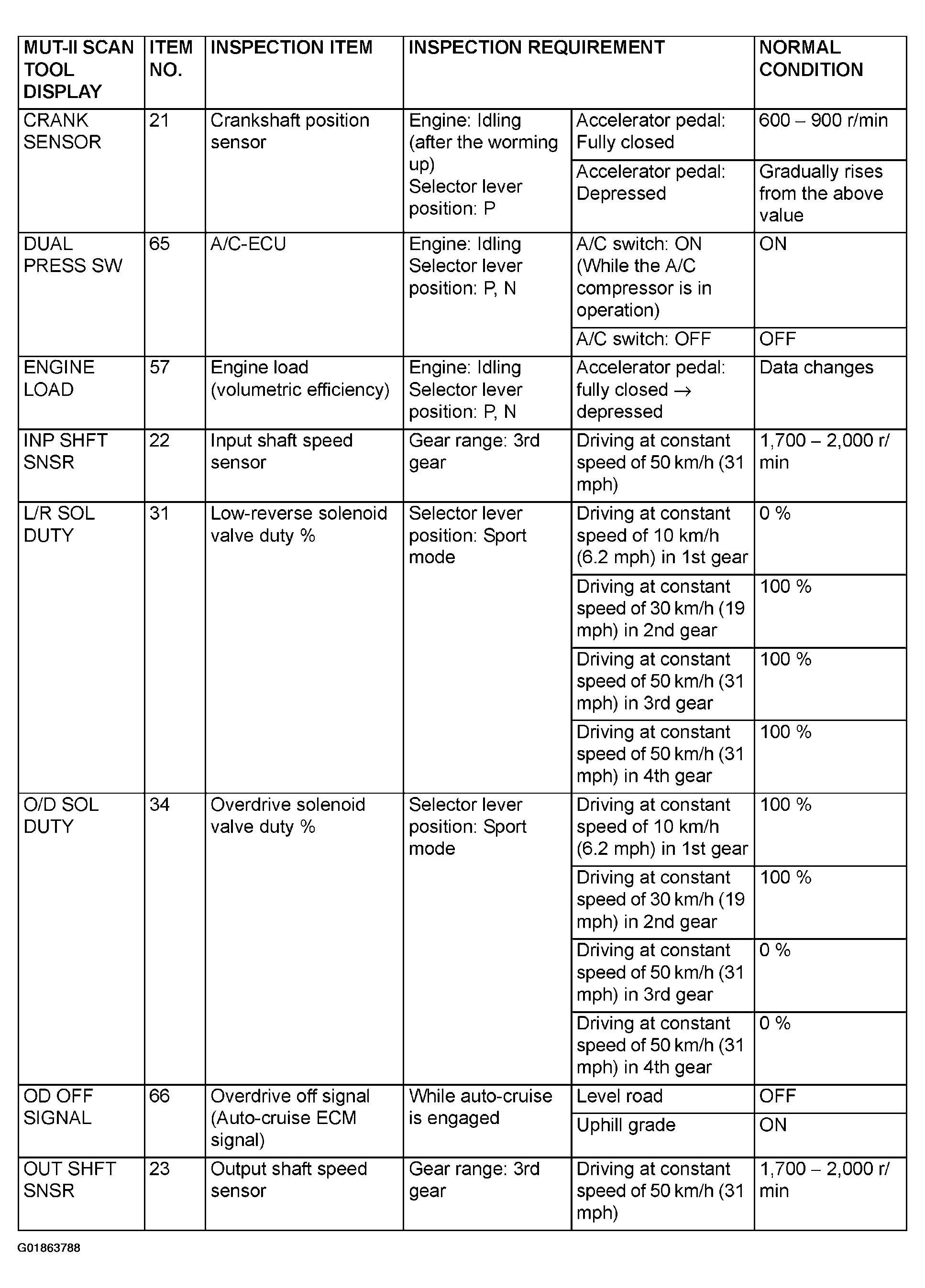

Fig 2: Data List Reference Chart (2 Of 5)

G01863788

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

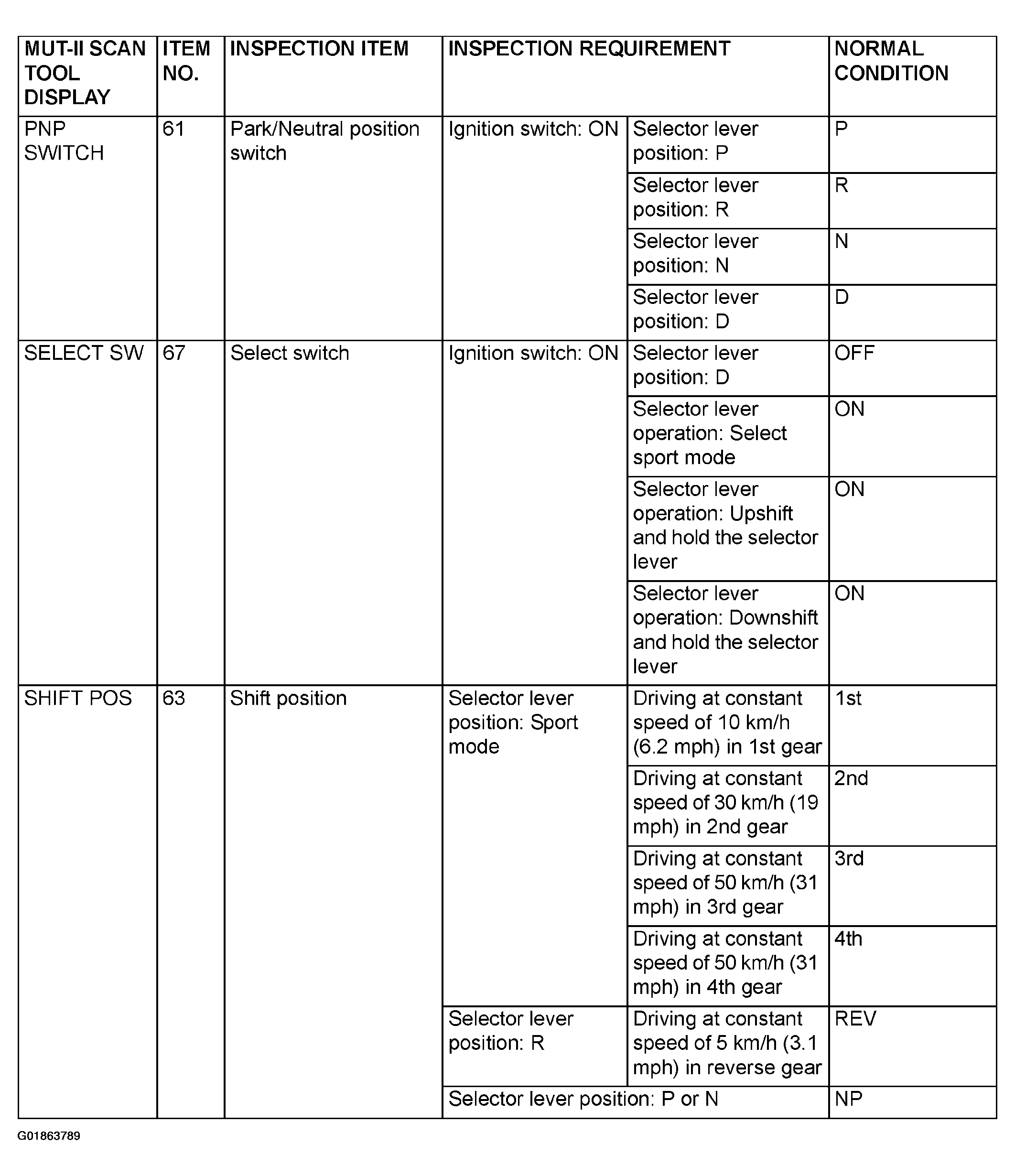

Fig 3: Data List Reference Chart (3 Of 5)

G01863789

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

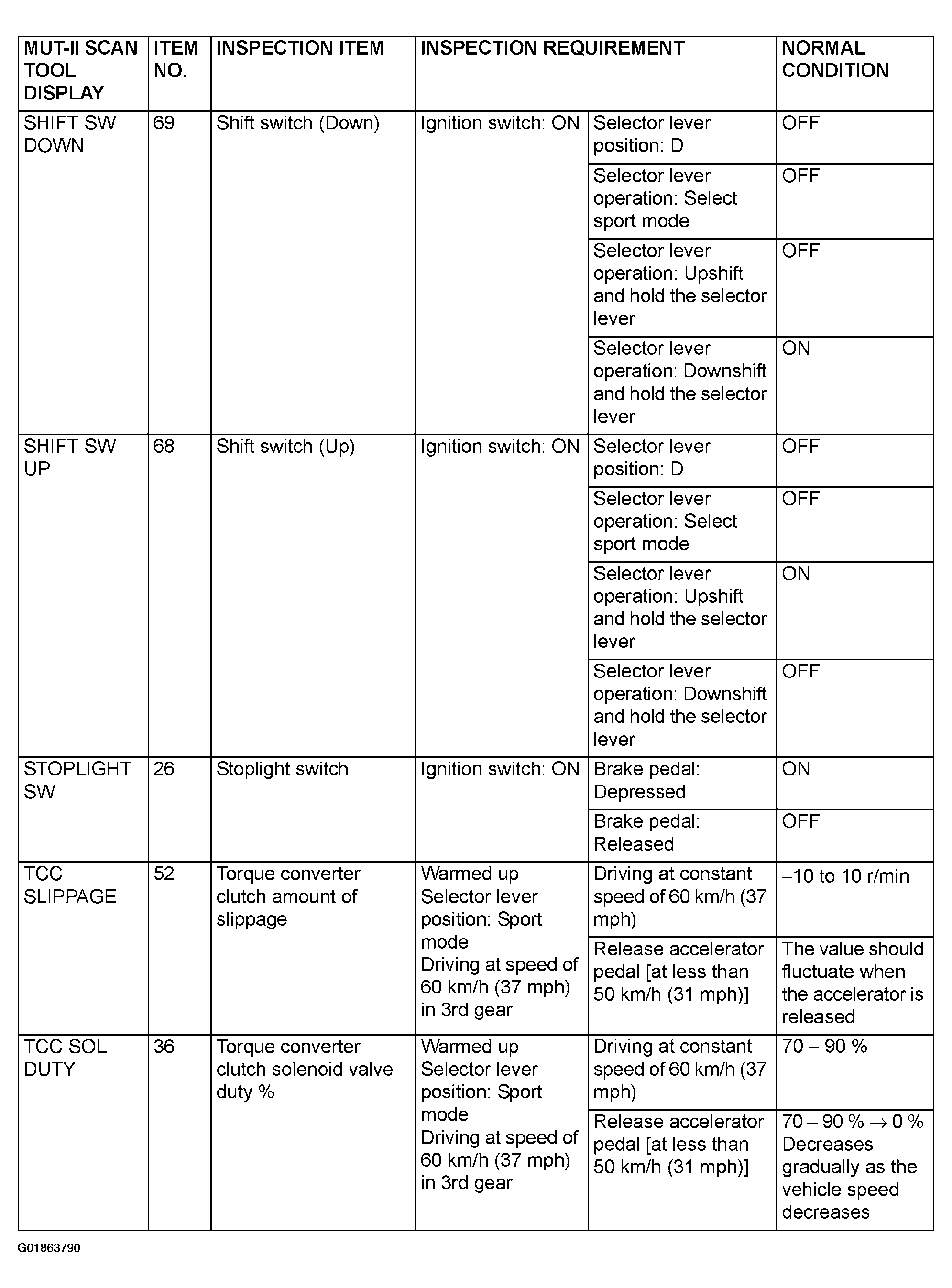

Fig 4: Data List Reference Chart (4 Of 5)

G01863790

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

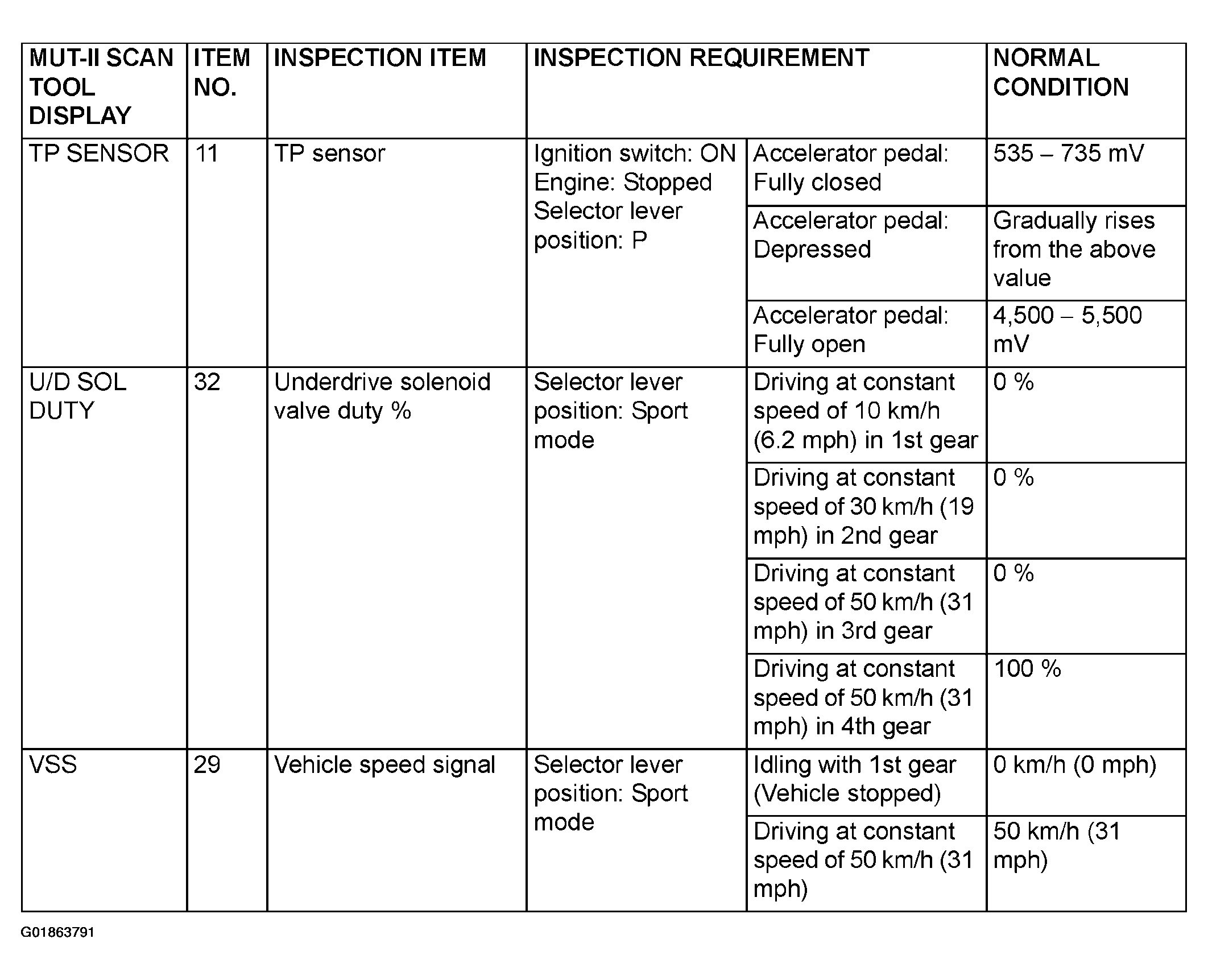

Fig 5: Data List Reference Chart (5 Of 5)

G01863791

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
