Outlander LS, AWD
>>
Repair and Diagnosis
>>
Transmission
>>
Automatic Trans
>>
Automatic Transaxle Diagnosis
>>
Inspection Procedure Using An Oscilloscope
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Inspection Procedure Using An Oscilloscope

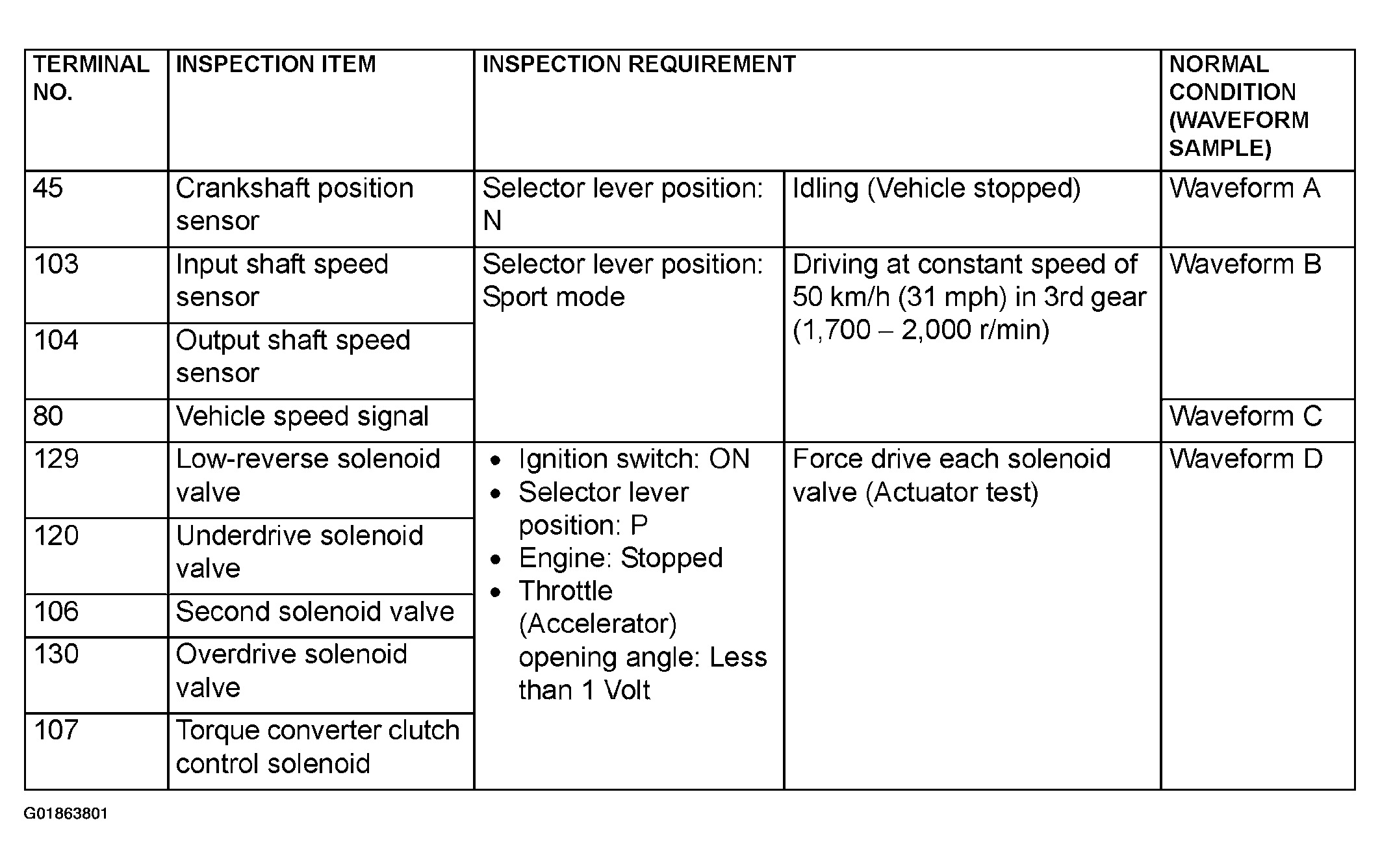

Fig 1: Inspection Procedure Chart Using An Oscilloscope (PCM)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Waveform sample

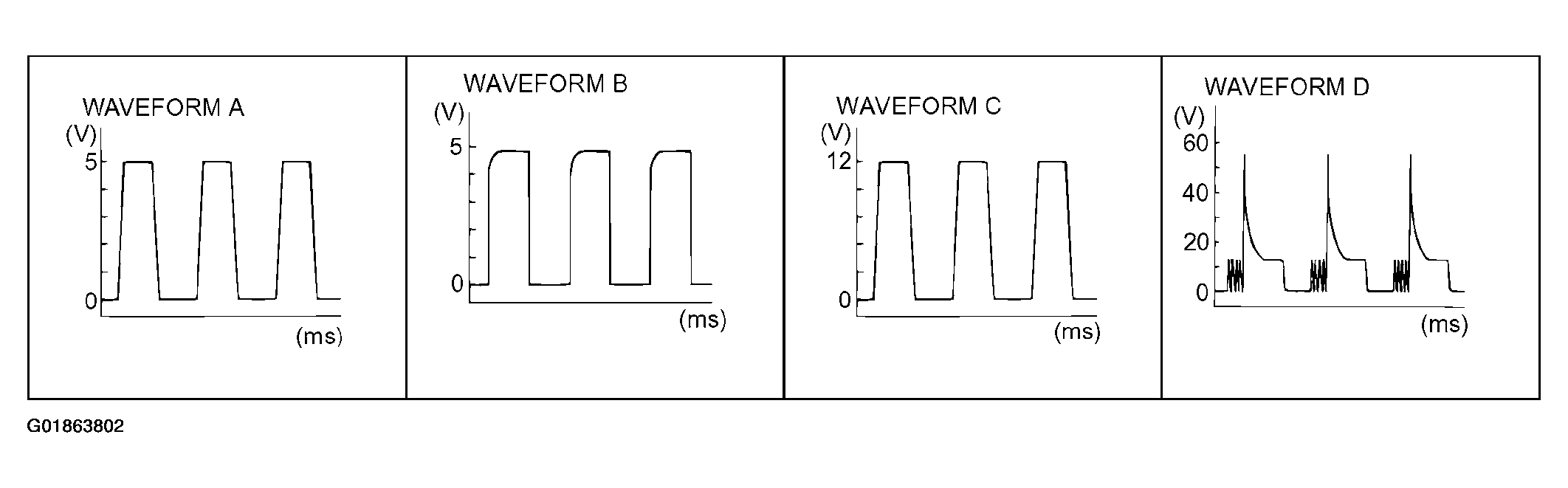

Fig 2: Waveform Samples
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
