Transfer Oil Replacement

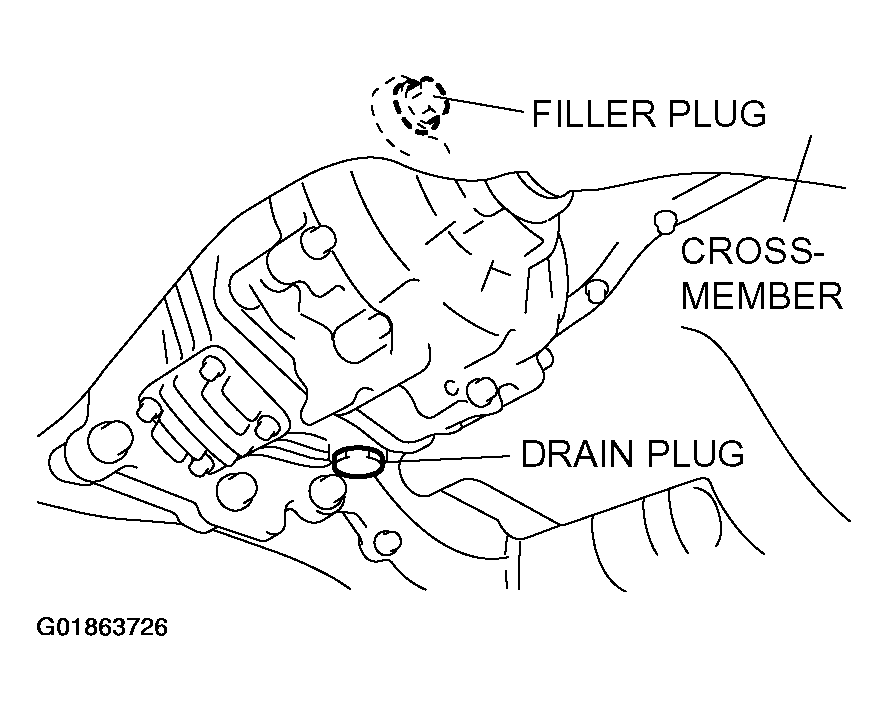

- Remove the drain plug and discharge the oil.
- Tighten the drain plug to the specified torque.
Tightening torque: 32 +/- 2 N.m (24 +/- 1 ft-lb)
- Fill oil to the bottom of the filler plug hole.
Specified oil: Gear oil SAE 75W - 90 or 75W - 85W conforming to API classification GL-4
Quantity: 0.53 dm 3 (0.56 quarts)
- Tighten the filler plug to the specified torque.
Tightening torque: 32 +/- 2 N.m (24 +/- 1 ft-lb)
CAUTION:
Cover the heat protector of the front exhaust pipe with cardboard or something similar when refilling transfer oil so that transfer oil does not enter the area between the front exhaust pipe and heat protector.
