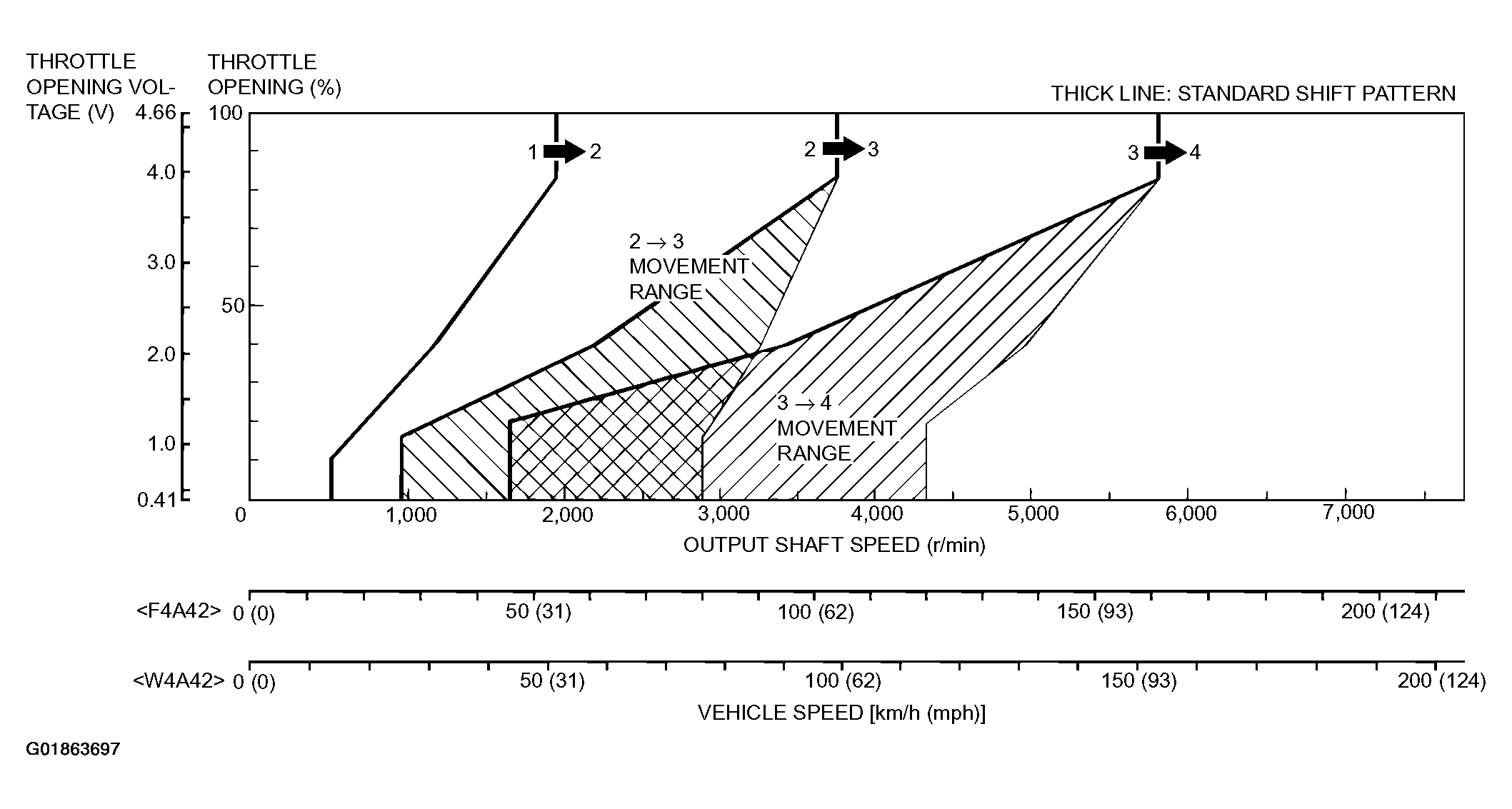

Fig 1: Identifying Shift Pattern Control (Upshift Pattern)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
NOTE:
Within 2 -to- 3 and 3 -to- 4 movement ranges, the PCM adjusts shift points according to the driving conditions by memorizing the accelerator pedal stroke and braking timing.
