Components And Functions

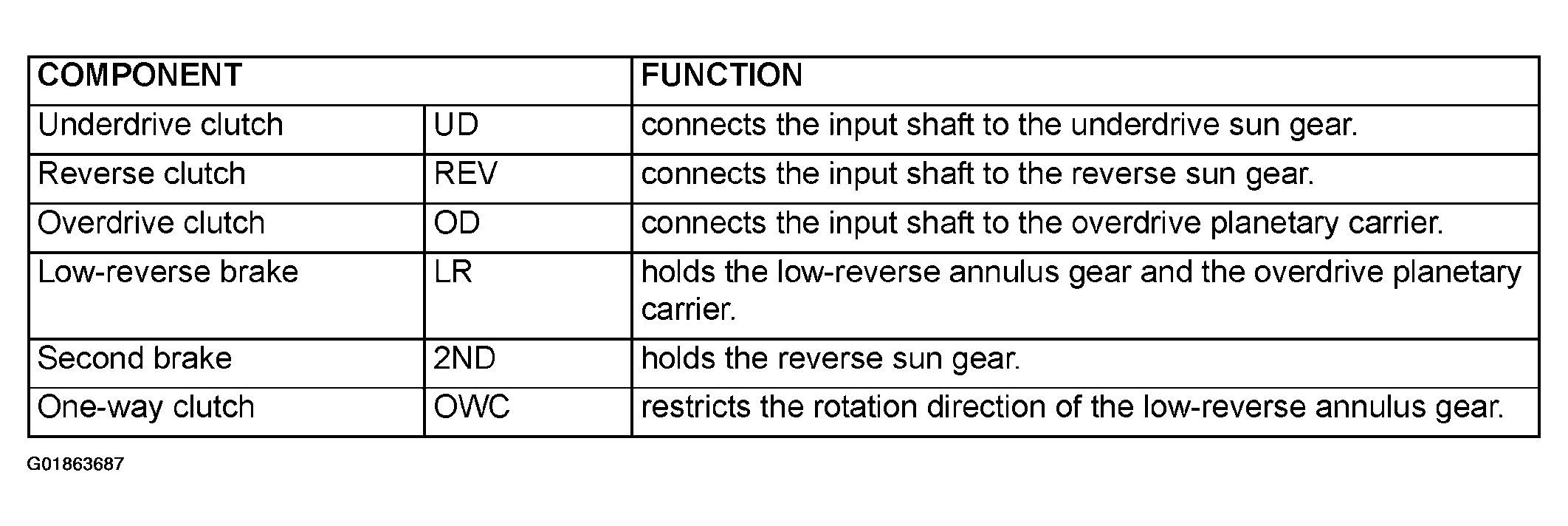

Fig 1: Identifying Transaxle Components And Functions
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
