Disassembly And Assembly

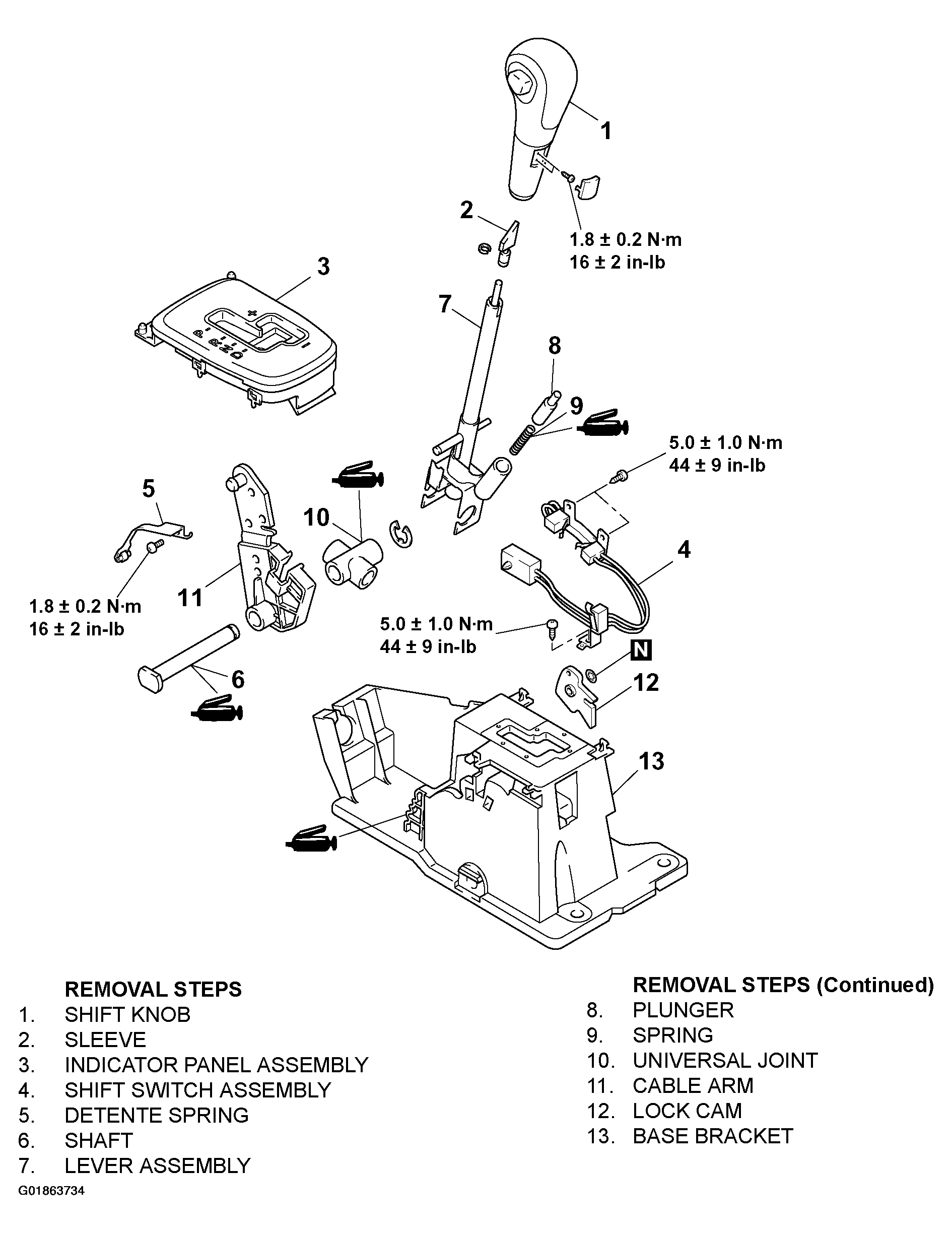

Fig 1: Exploded View Of Transaxle Control
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
