Shift Switch Assembly Continuity Check

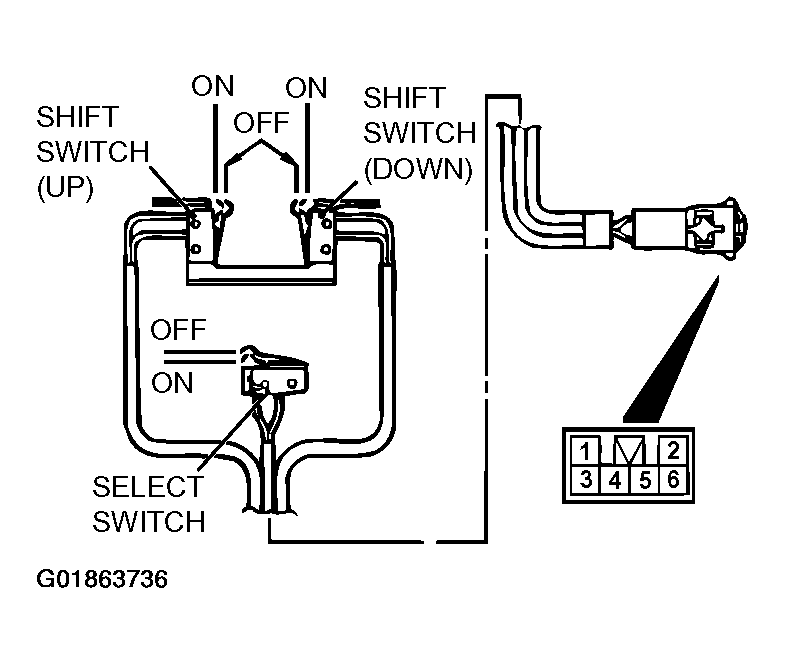

Fig 1: Identifying ON/OFF Position And Terminals Of Shift Switch Assembly
G01863736Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

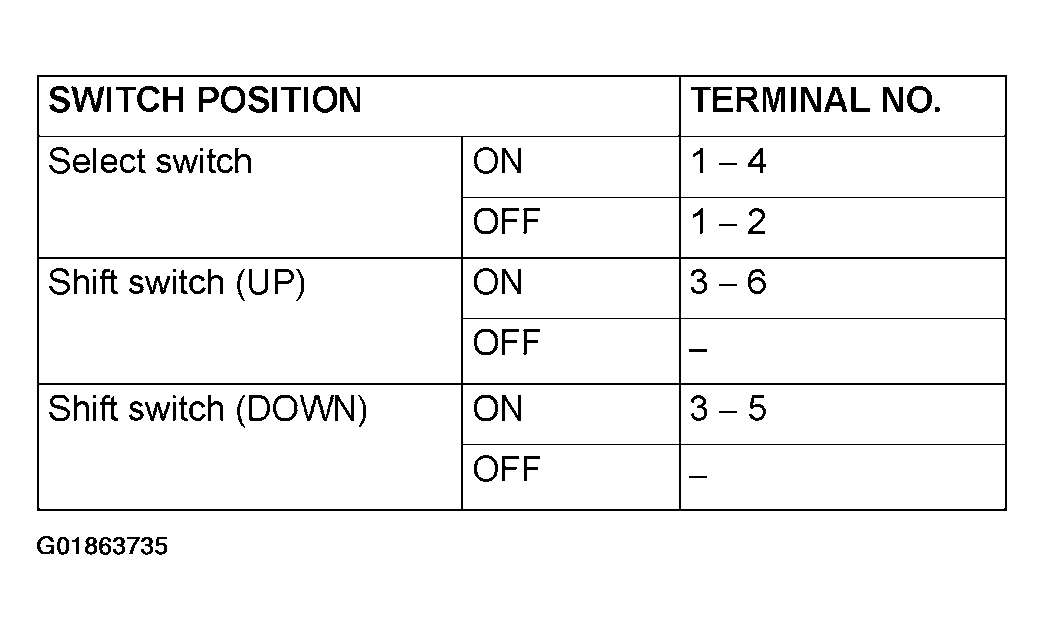

Fig 2: Shift Switch Assembly Continuity Chart
G01863735Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
