Diagnostic Result Display Method When Using The Auto-Cruise Control Indicator Light: Notes

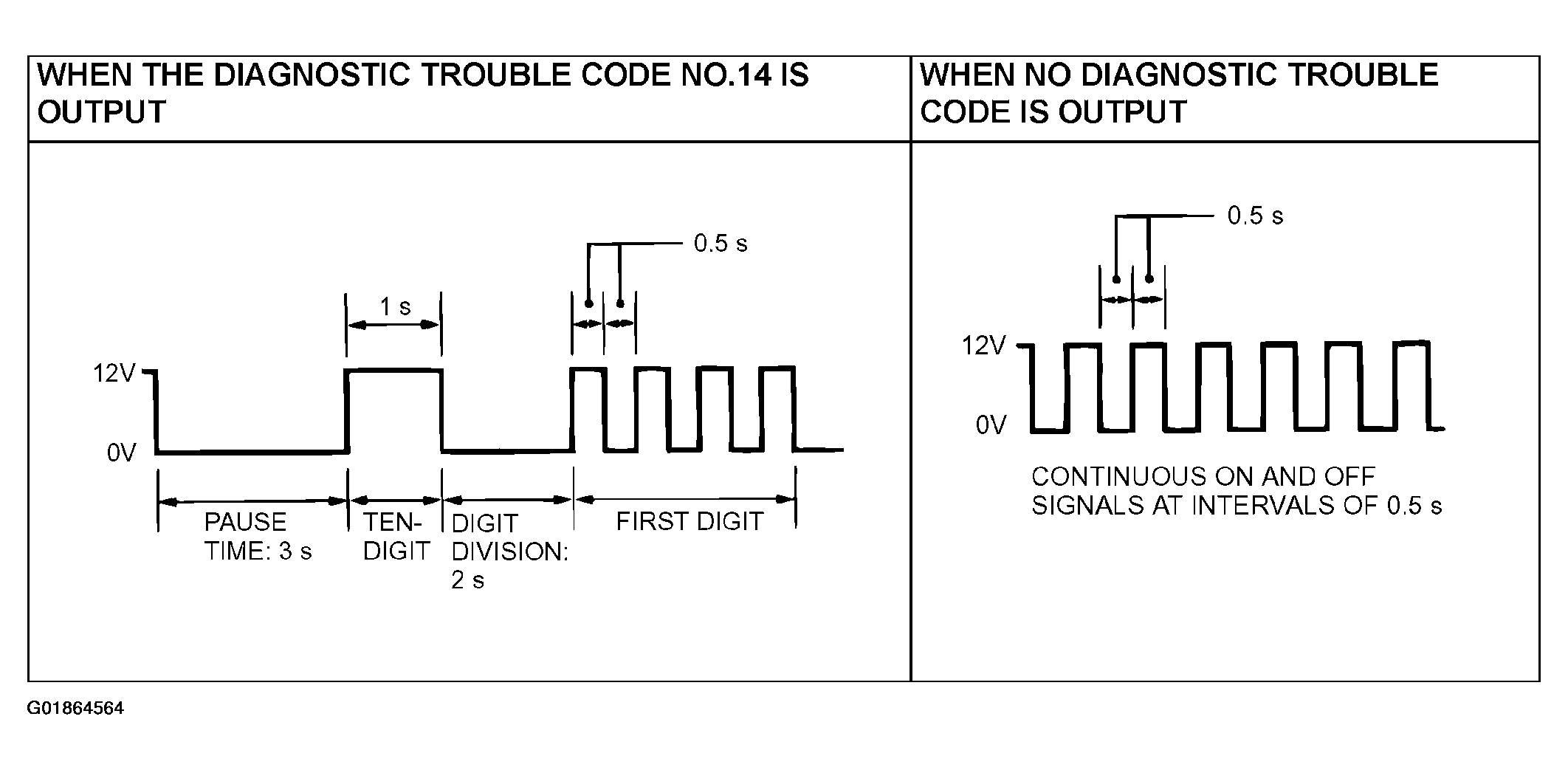

Fig 1: Diagnostic Result Display Identification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

NOTE: Other on-board diagnostic items are also out-put as voltage waveforms corresponding to diagnostic trouble code numbers.
