Inspection Using Scan Tool MB991502 Data List

Required Special Tool :

MB991502: Scan Tool (MUT-II)

CAUTION: To prevent damage to scan tool MB991502, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991502.

Connect scan tool MB991502 to the data link connector.

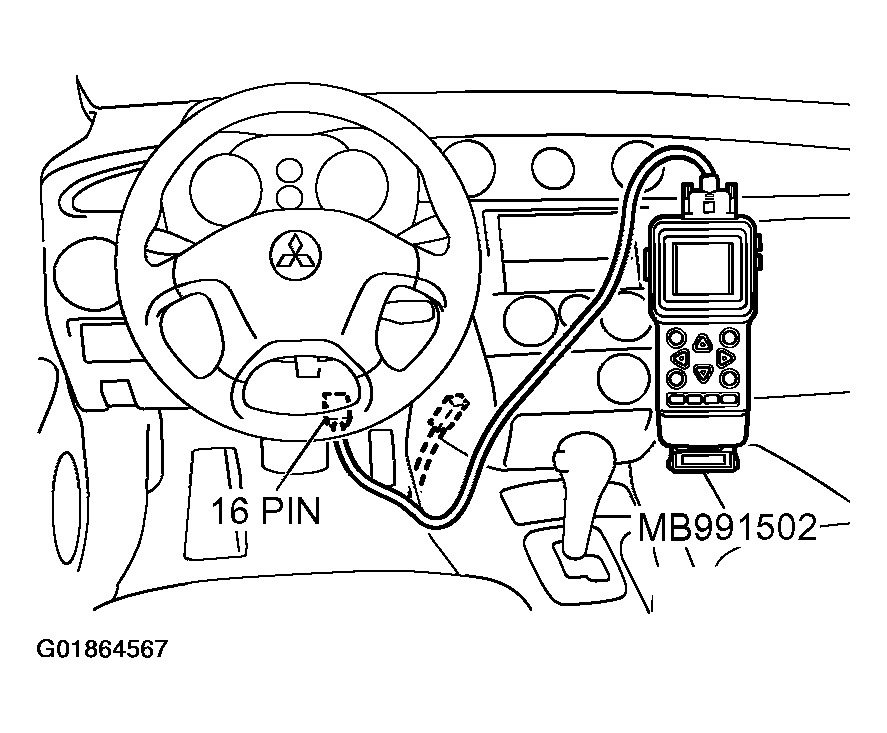

Fig 1: Connecting Scan Tool MB991502 To Data Link Connector
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Turn the ignition switch to the "ON" position.
Carry out inspection by means of the data list. If there is an abnormality, check and repair the chassis harnesses and components. (Refer to DATA LIST REFERENCE TABLE .)
Re-check using scan tool MB991502 and check to be sure that the abnormal input and output have returned to normal because of the repairs.
Erase the diagnostic trouble code(s).
Turn the ignition switch to the "LOCK" (OFF) position.
Disconnect scan tool MB991502 from the data link connector.
Start the engine again and do a test drive to confirm that the problem is eliminated.
