Auto-cruise Control Check

Measure the resistance between the terminals when each of the "SET," "RESUME," "CANCEL" and "MAIN" switches is pressed. If the values measured at the time correspond to those in the table below, the resistance values are correct.

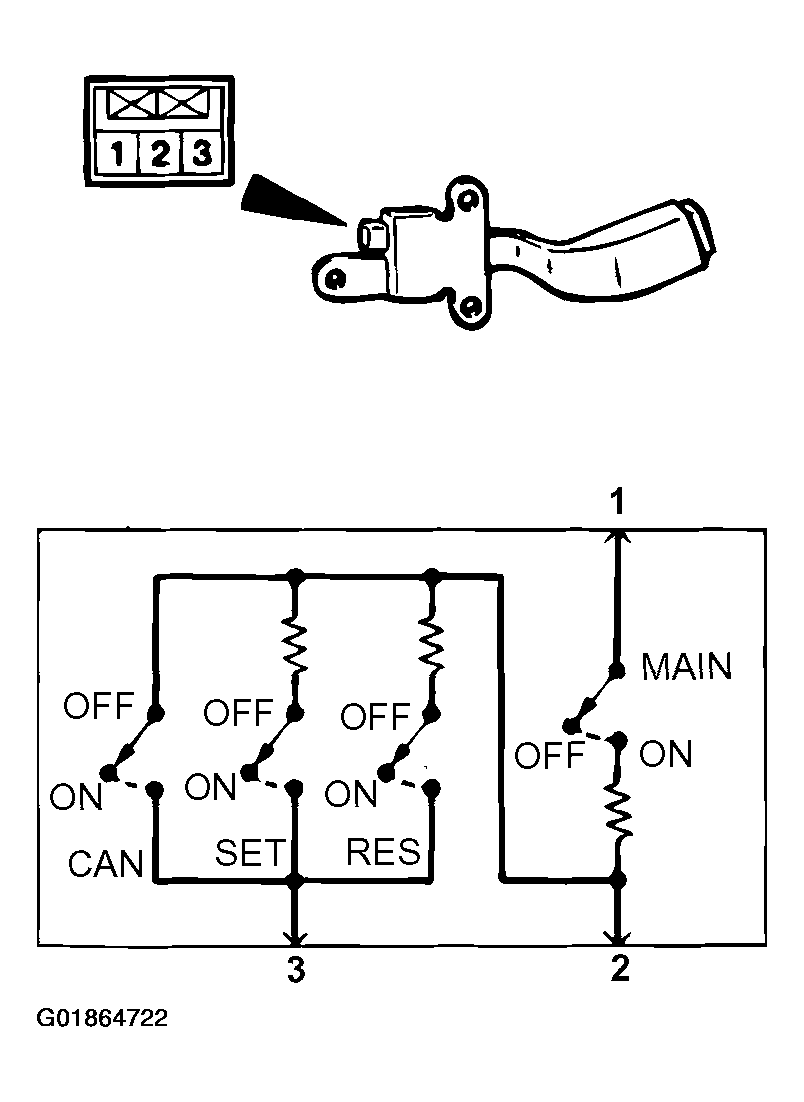

Fig 1: Measuring Resistance Between Terminals

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

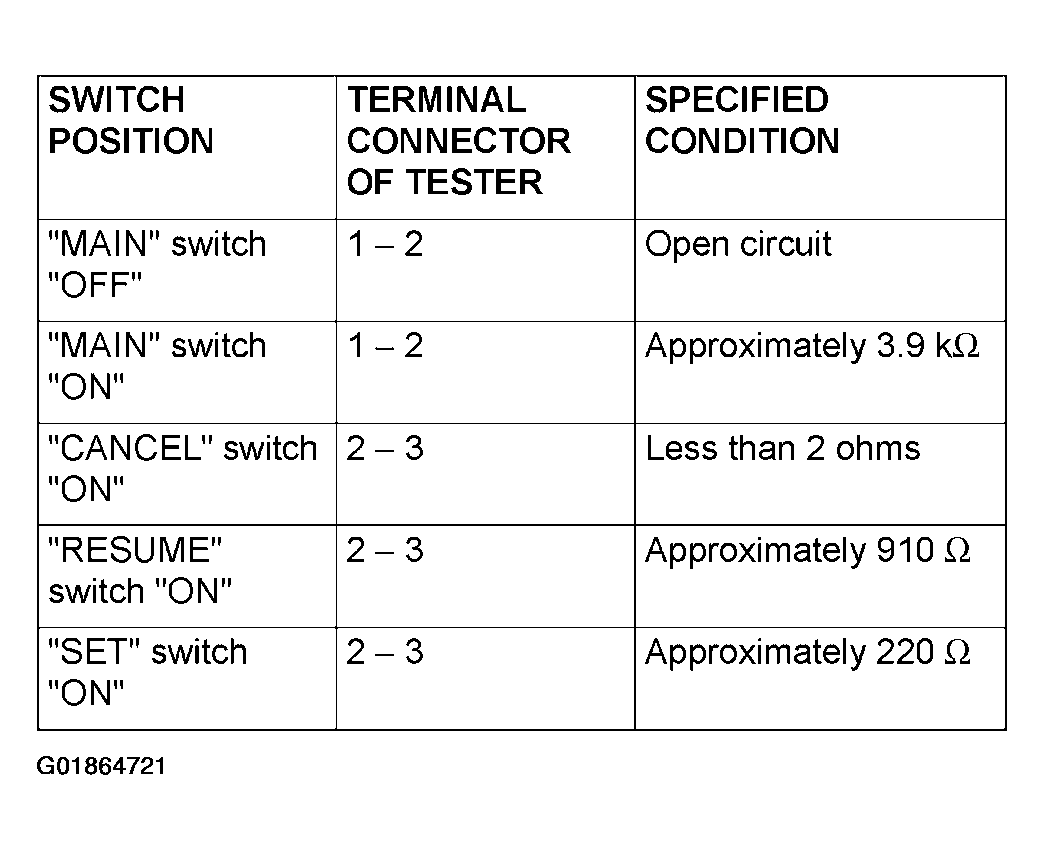

Fig 2: Identifying Switch Position And Specified Conditions

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
