Removal And Installation: Notes

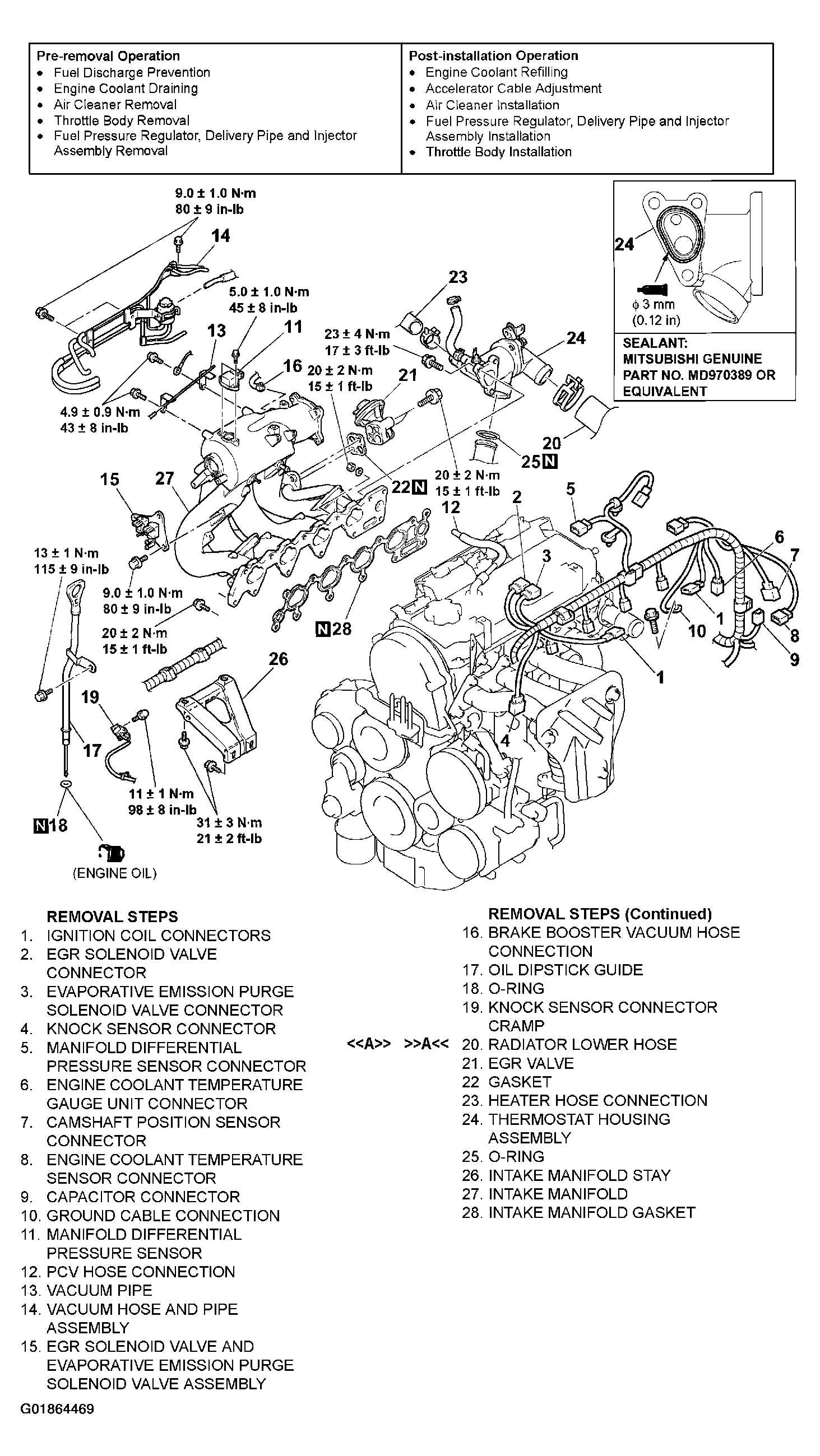

Fig 1: Removing & Installing Intake Manifold
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
