Special Tools

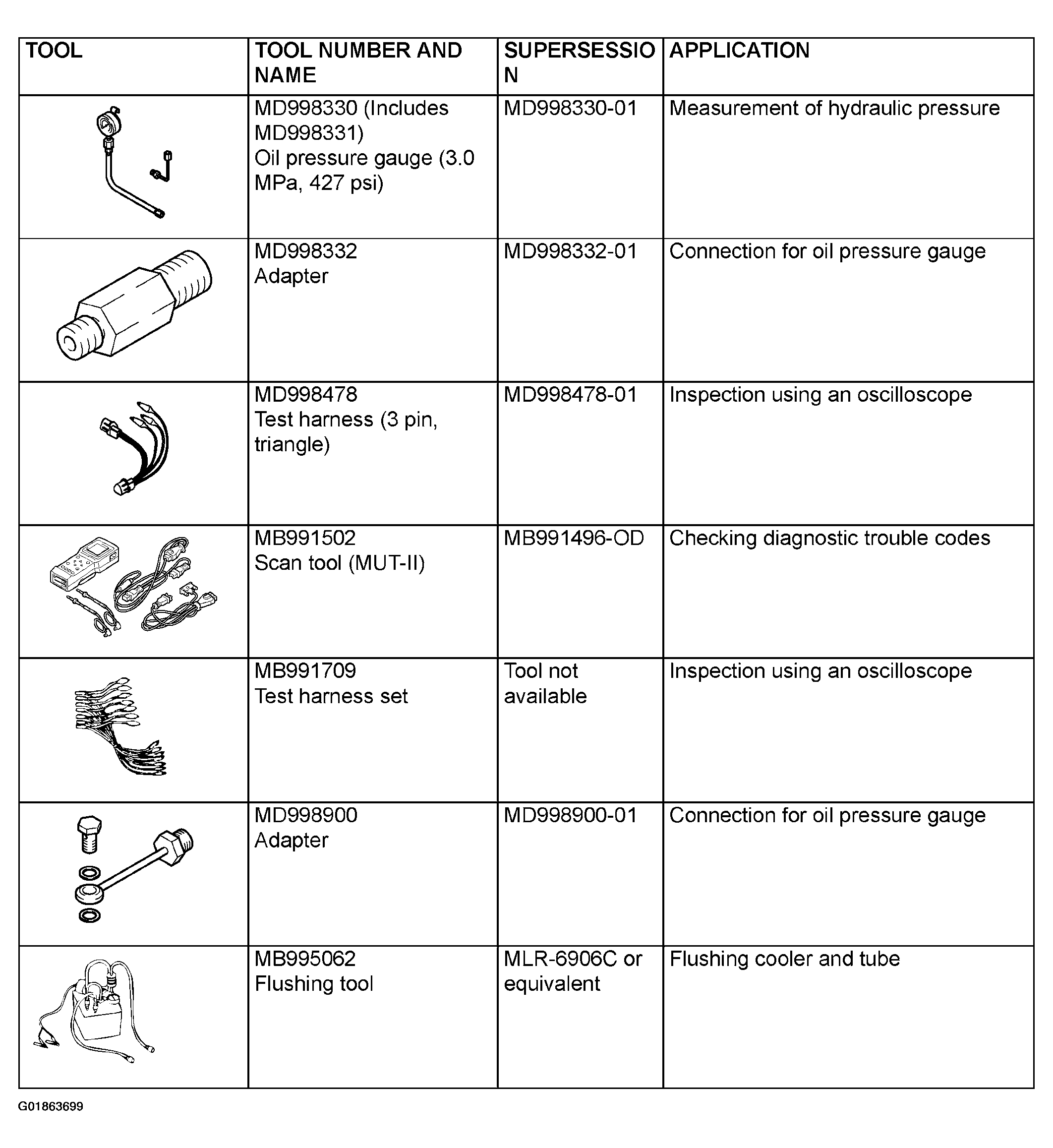

Fig 1: Identifying Special Tools (1 Of 2)
G01863699Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

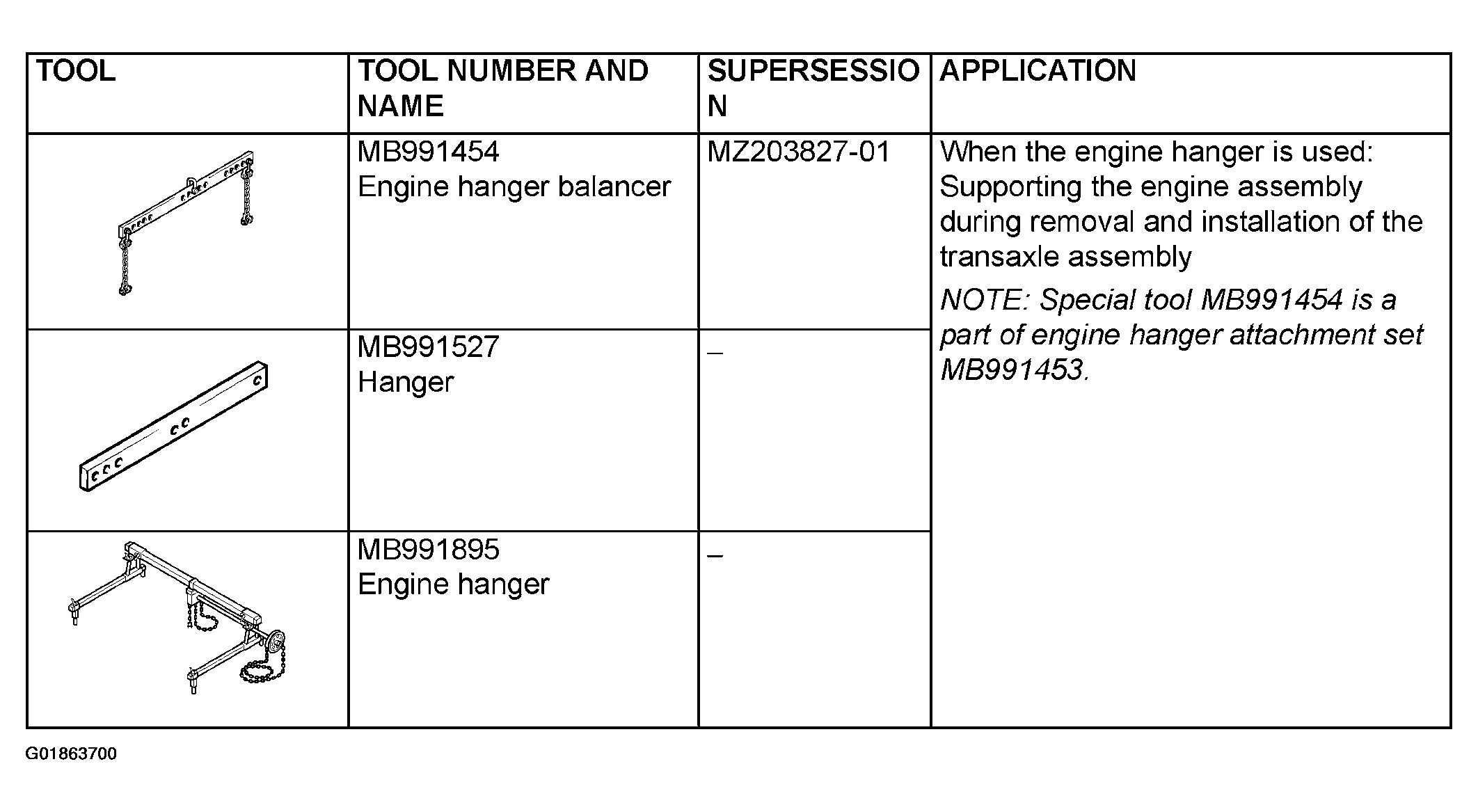

Fig 2: Identifying Special Tools (2 Of 2)
G01863700Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
