< 2.4L Engine> Downshift Pattern

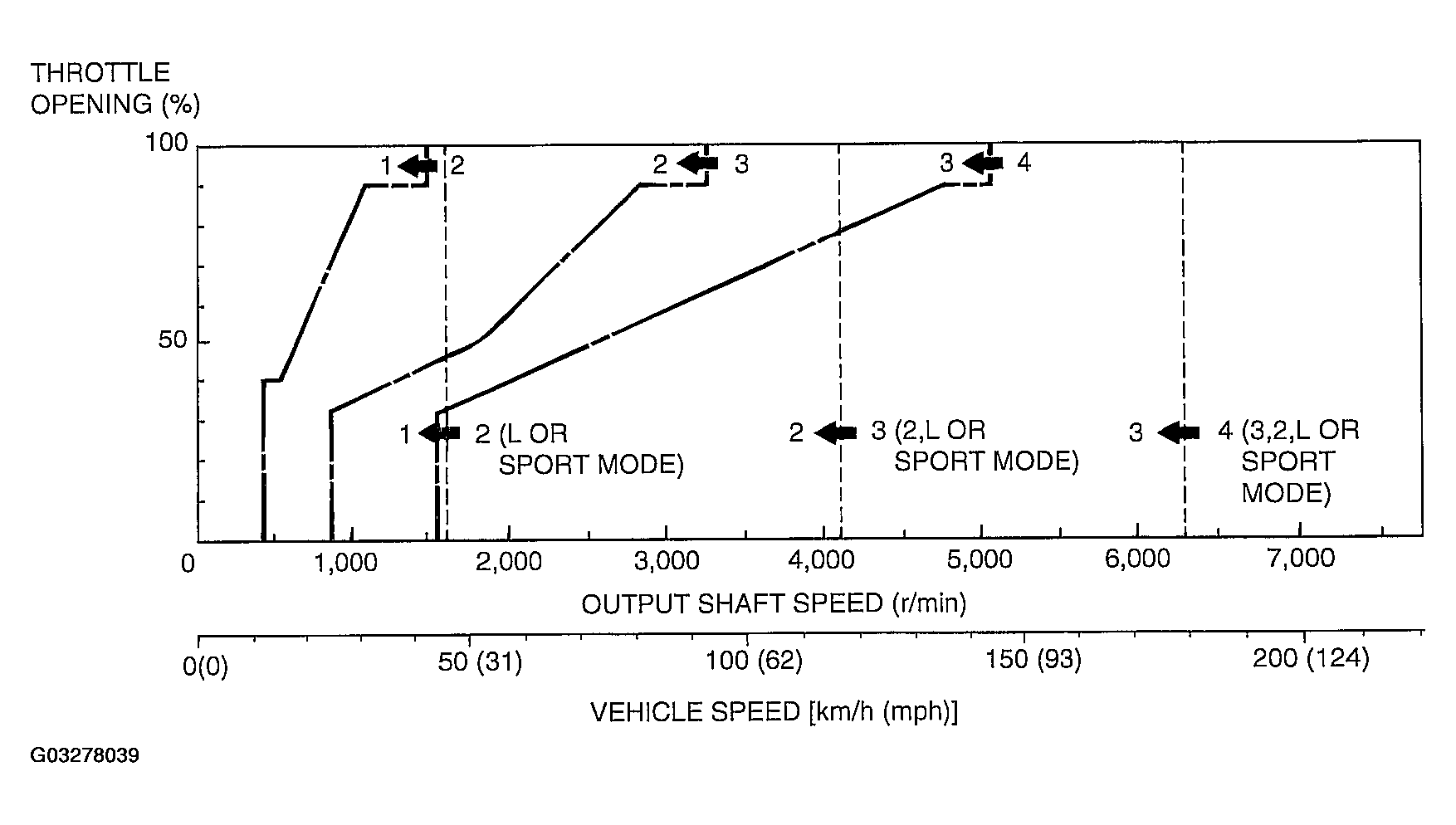

Fig 1: Shift Pattern Control - (2.4L Engine) Downshift Pattern
G03278039Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
