>>C<< Nut Installation

  1. Place the transaxle manual control lever in the "N" position.
  2. Place the selector lever in the "N" position.

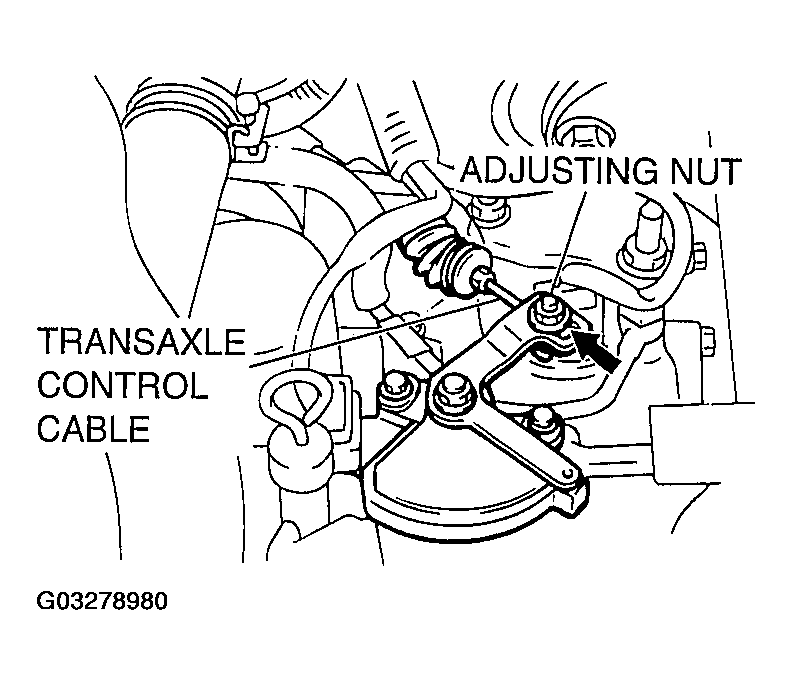

    3. Fig 1: Installing Transaxle Control Cable Nut
    G03278980Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  3. Place the cable stud into the manual control lever slot and install the nut loosely. Gently push the transaxle control cable in the direction of the arrow until the cable is taut Tighten the nut to the specified torque.

    Tightening torque: 12 plus/minus 2 N-m (102 plus/minus 22 in-lb)
