Special Tools

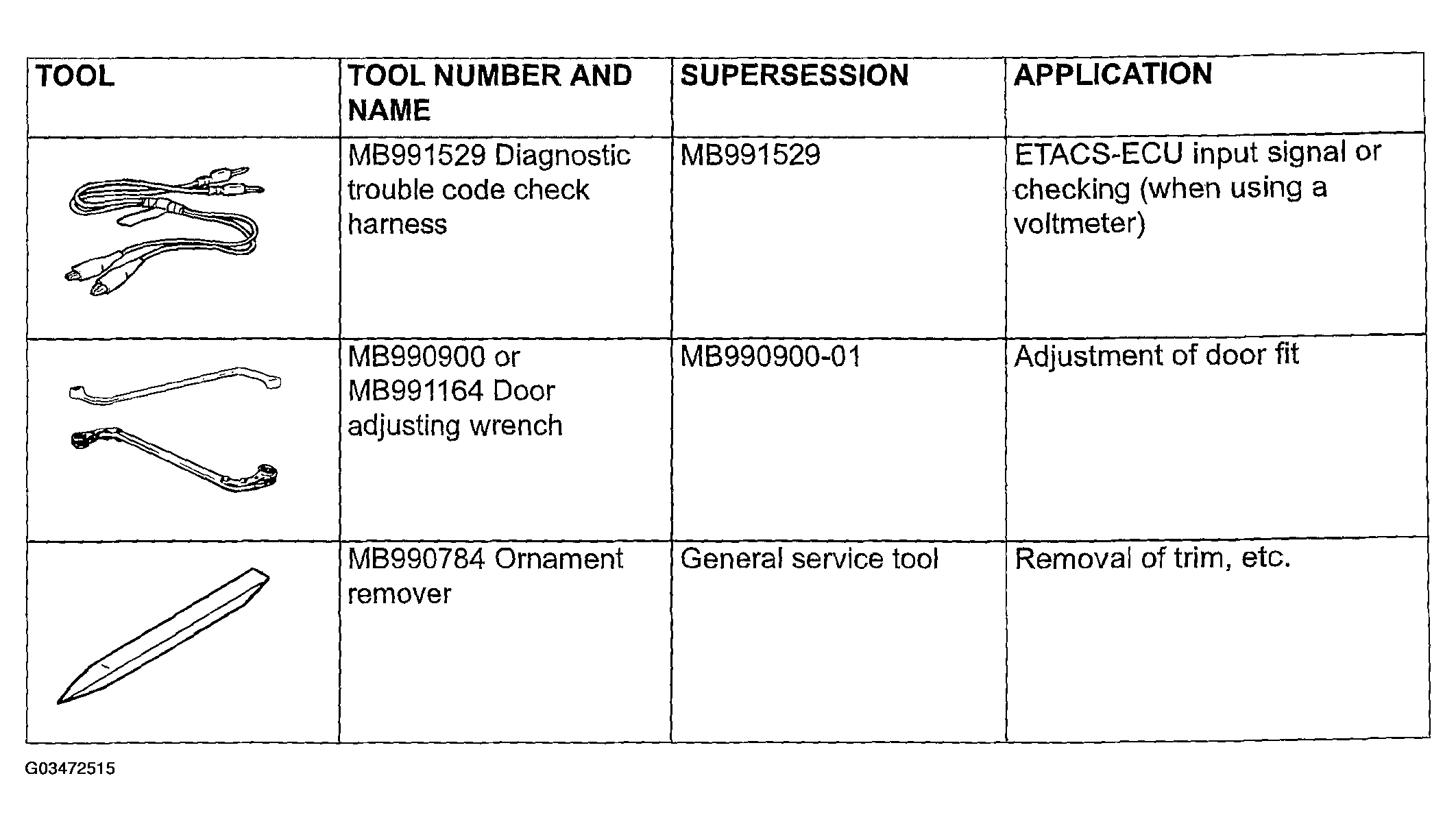

Fig 1: Identifying Special Tools Chart (1 Of 2)
G03472515Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

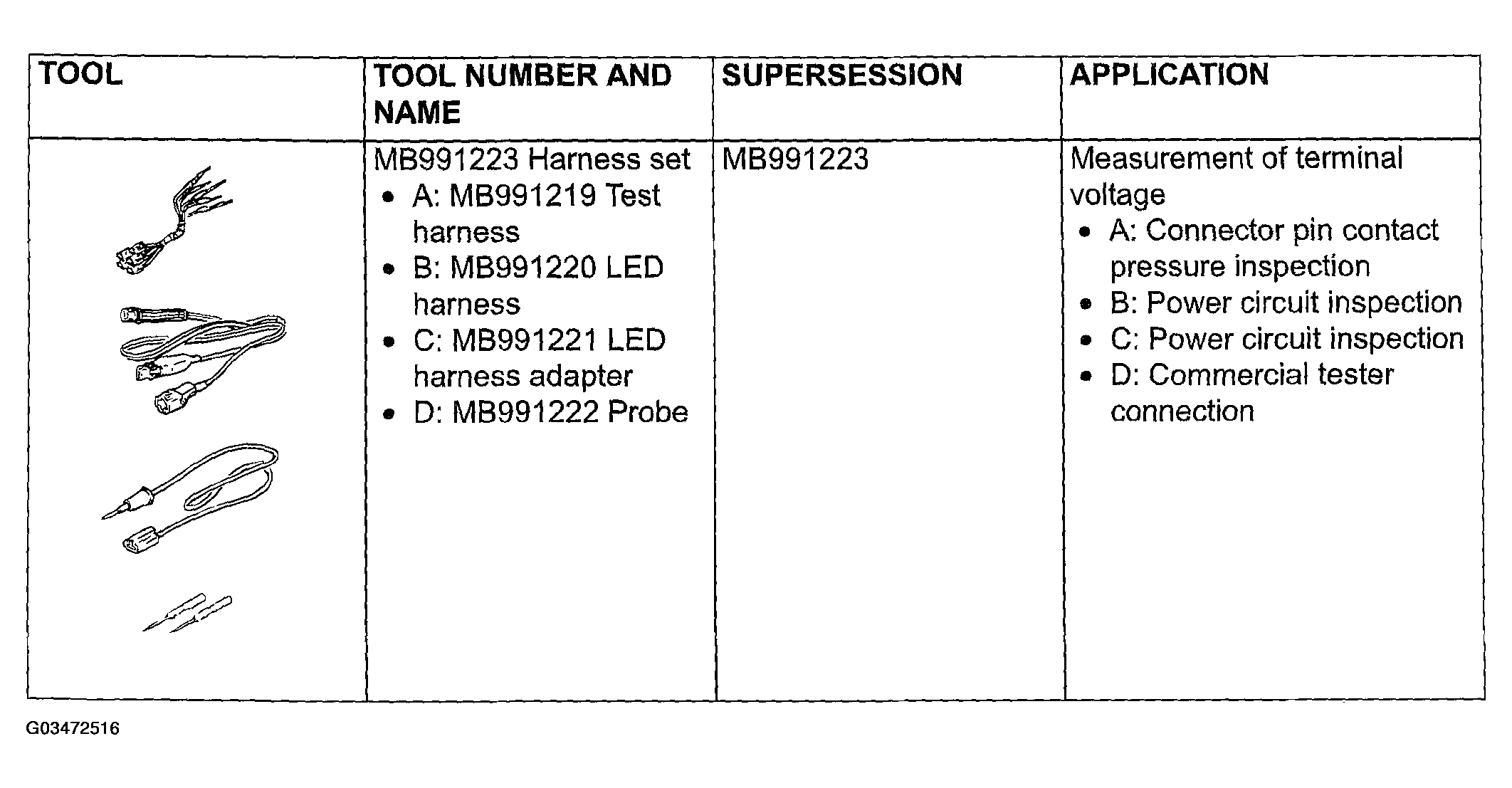

Fig 2: Identifying Special Tools Chart (2 Of 2)
G03472516Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
