Power Steering Line/Hose

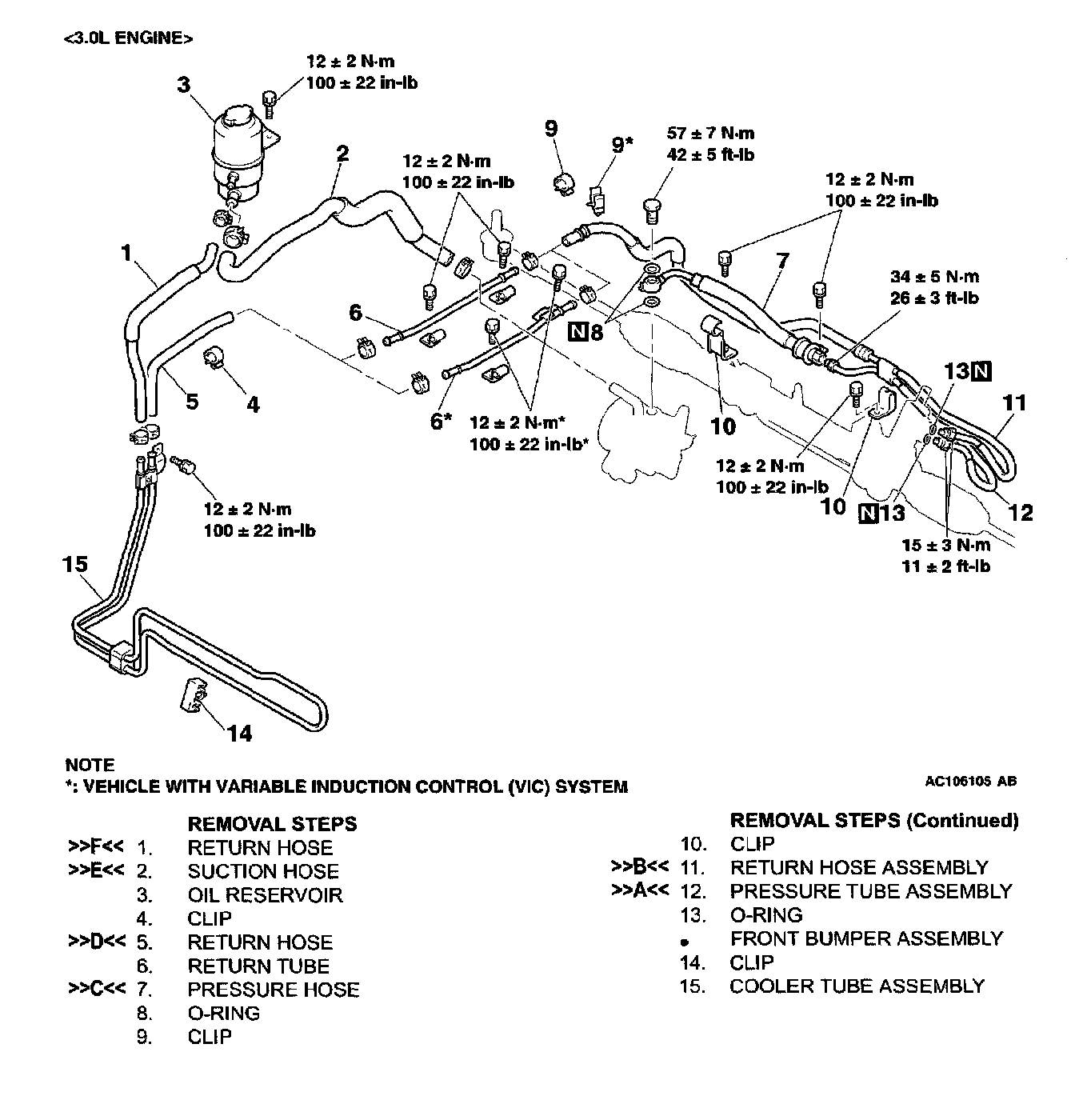

Part 1 Of 2:

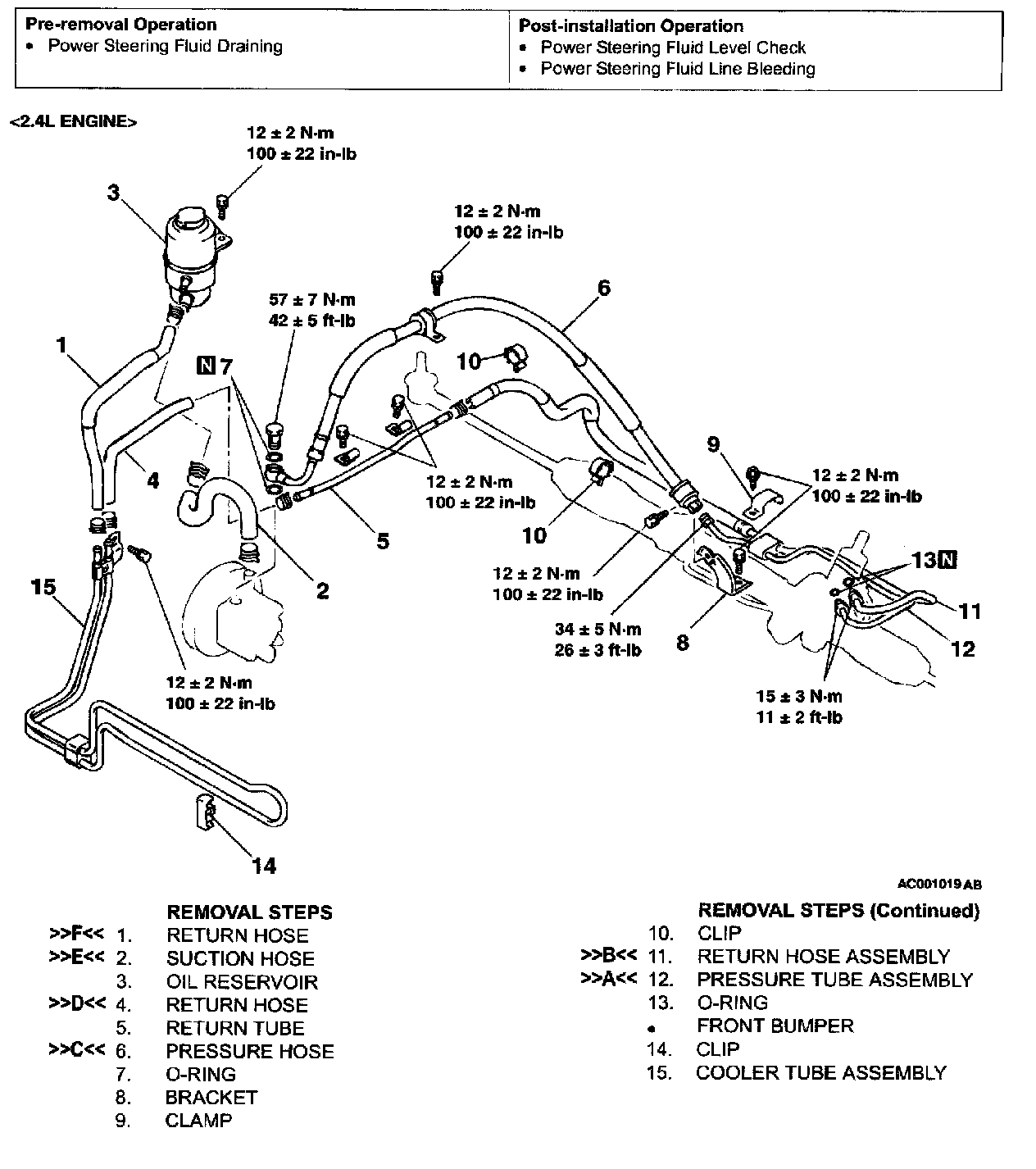

Part 2 Of 2:





POWER STEERING HOSES REPLACEMENT W/ RELATED COMPONENTS
