Actuator List Reference Table

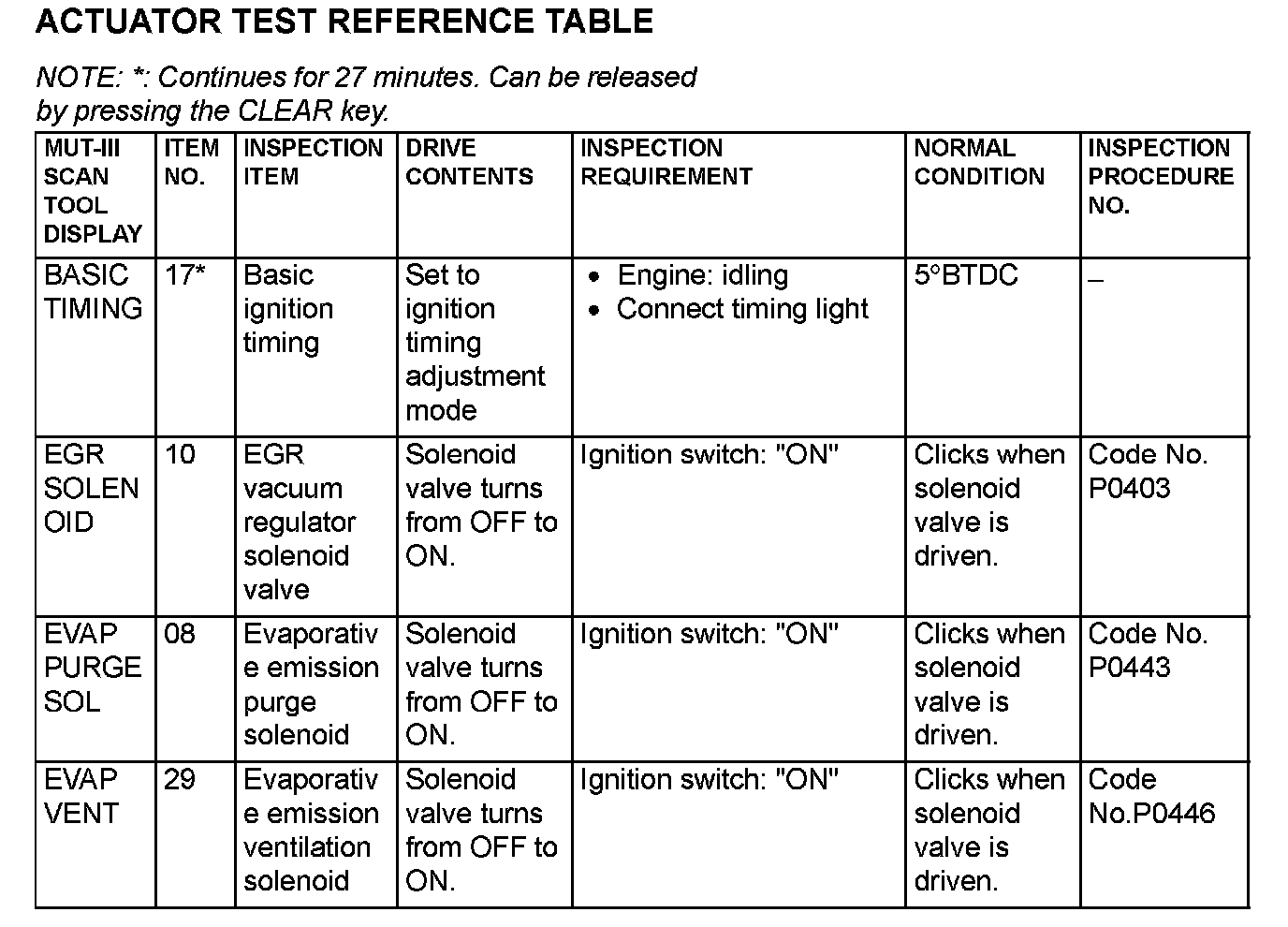

Actuator Test Reference Table Part 1:

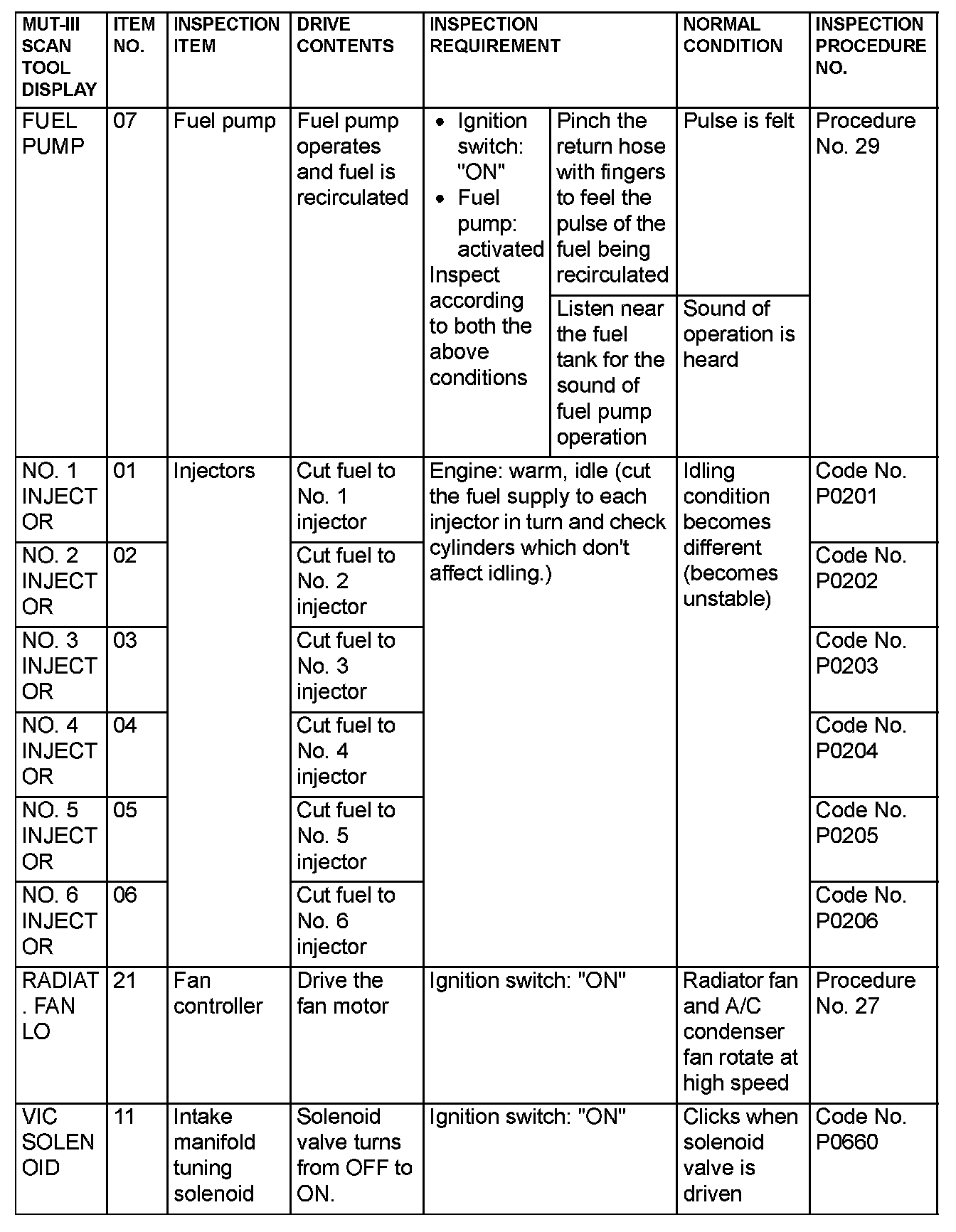

Actuator List Reference Table Part 2:
