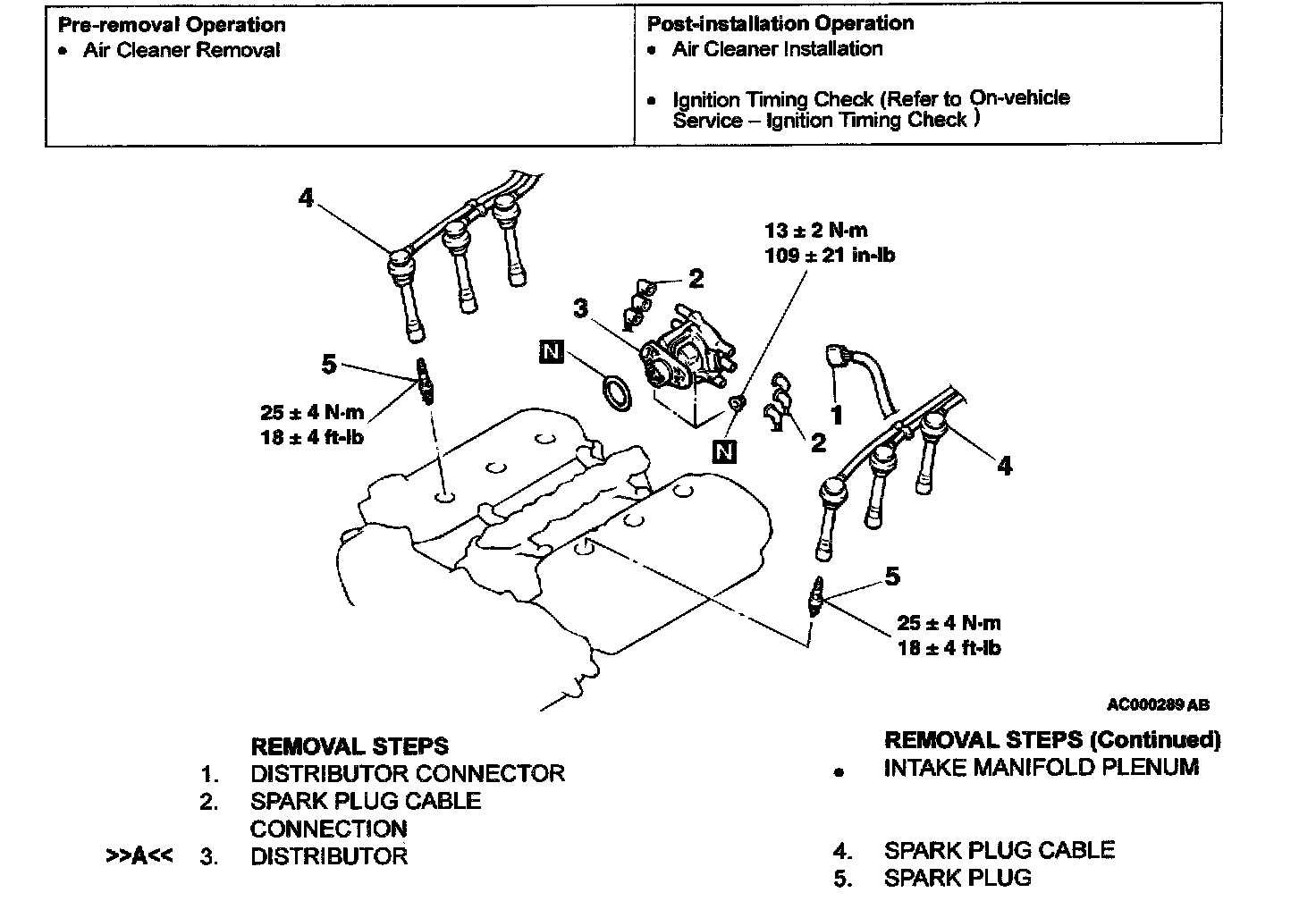

Removal and Installation

INSTALLATION SERVICE POINT




>>A<< DISTRIBUTOR INSTALLATION
1. Set the number 1 cylinder to top dead compression center.
2. Align the mating marks on the distributor housing and coupling, and then install the distributor to the engine.
3. Check that the ignition timing is at the standard value. (Refer to On-vehicle - Ignition Timing Check.)
