Timing Belt

Part 1 Of 2:





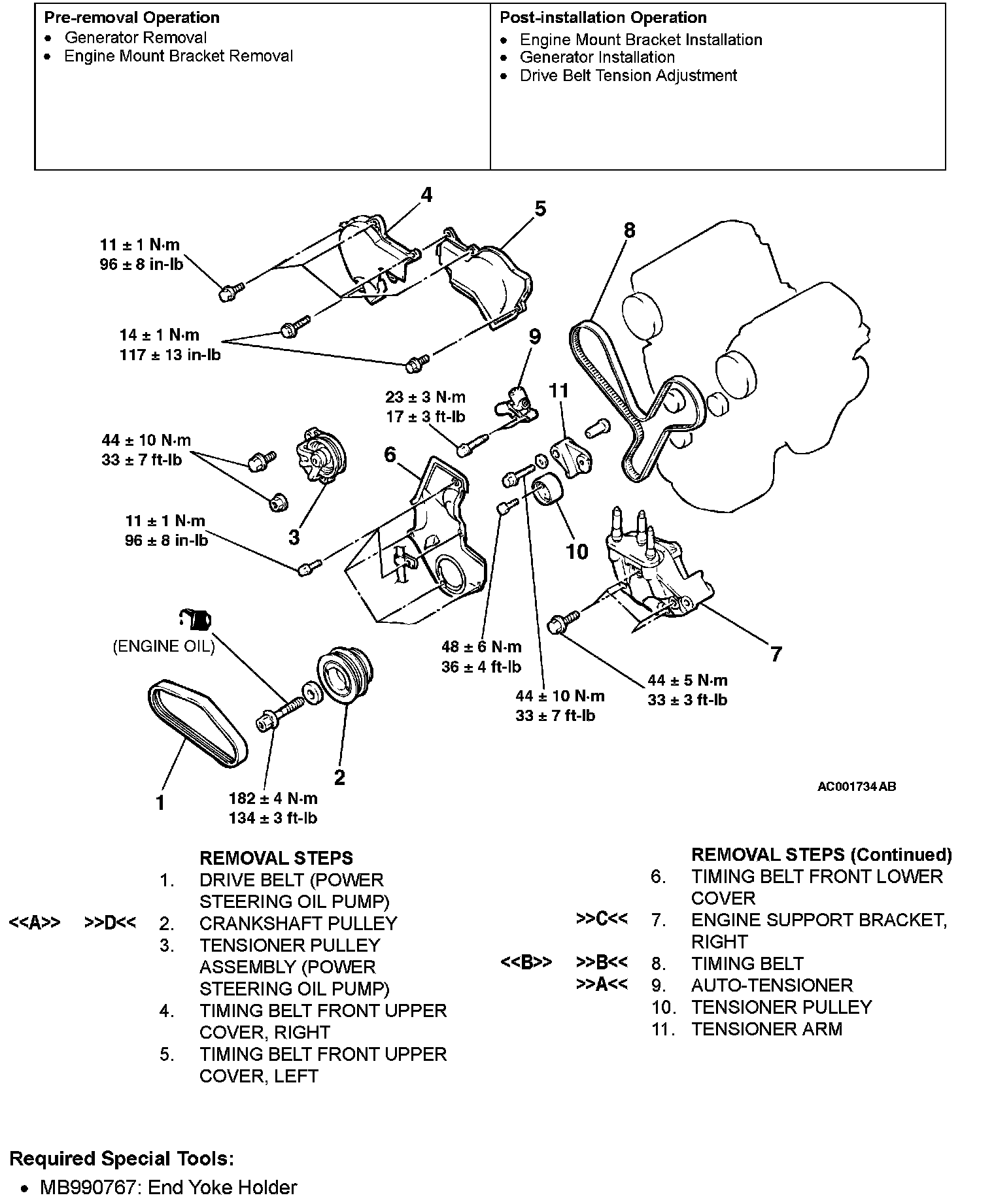

Install the timing belt on each sprocket and pulley in the following sequence. Do not leave the belt slack between each sprocket and pulley.
1. Crankshaft sprocket
2. Idler pulley
3. Left bank camshaft sprocket
4. Water pump pulley
5. Right bank camshaft sprocket
6. Tensioner pulley
