Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|
| Engine Compartment Relay Box | Left side of engine compartment.Figure . |

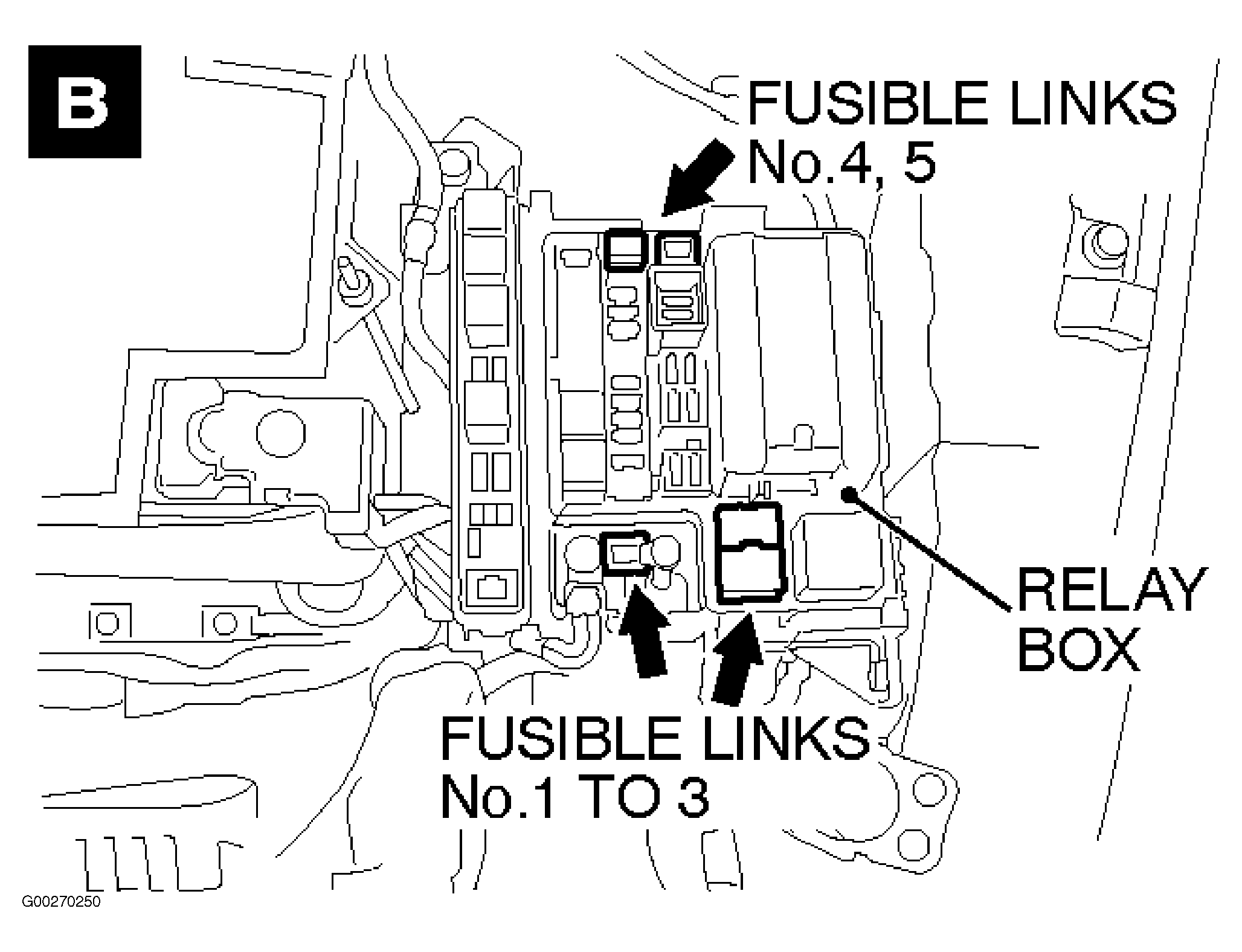

| Fusible Link No. 1 - 5 | On engine compartment relay box.Figure . |

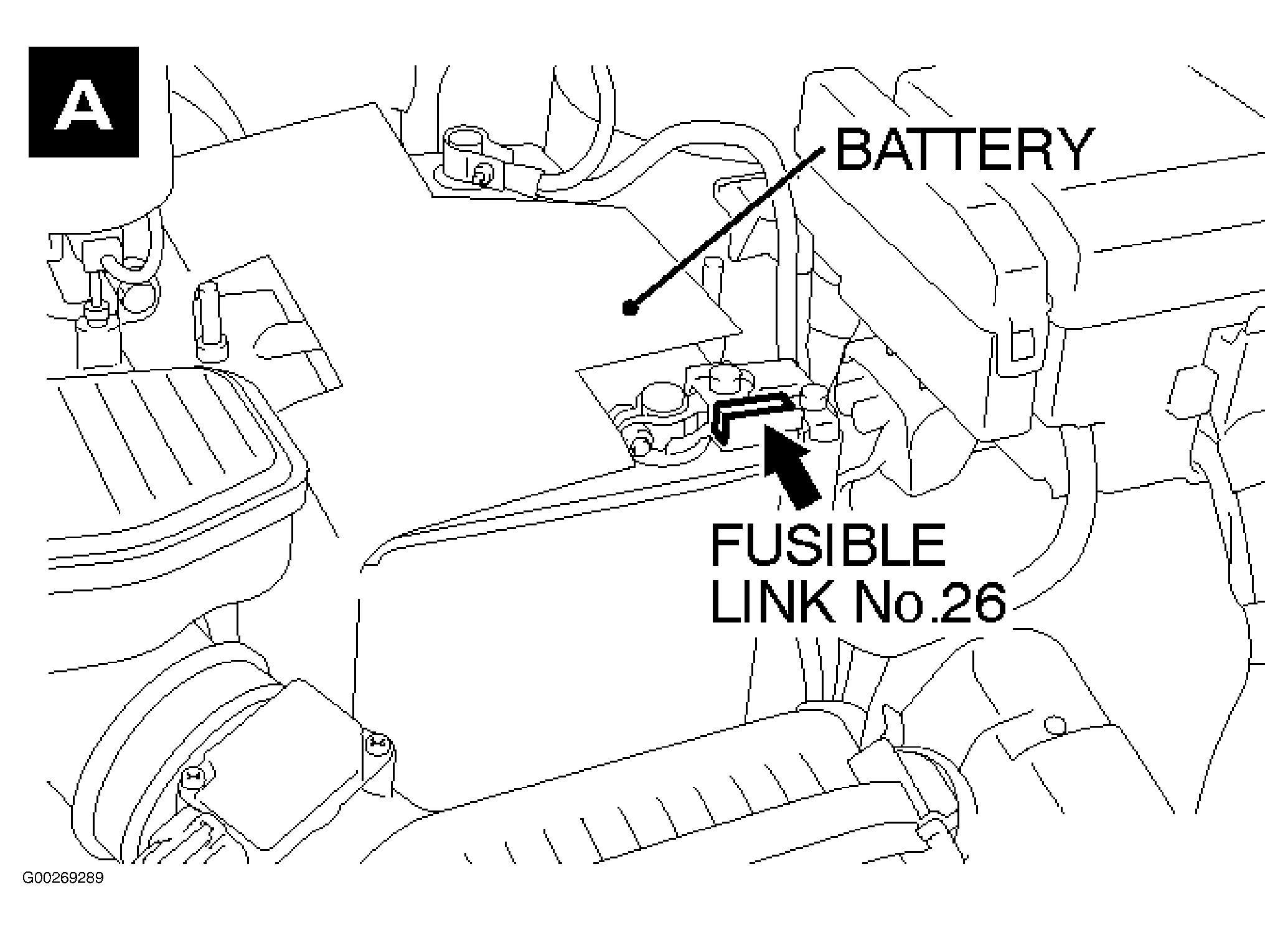

| Fusible Link No. 26 | At positive battery terminal connection.Figure . |

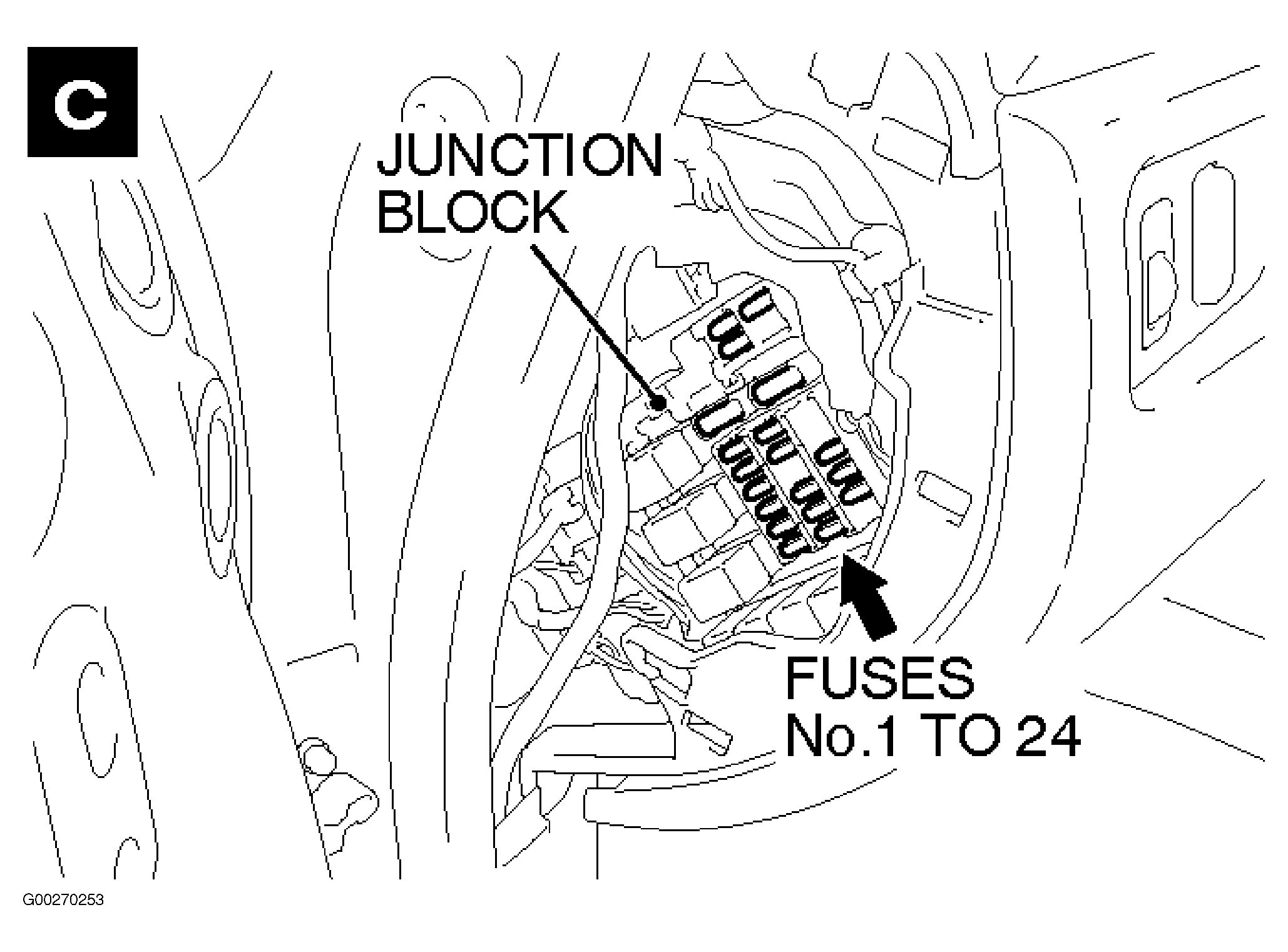

| Junction Block | Left end of dash. See Figure . |
