Connector Views

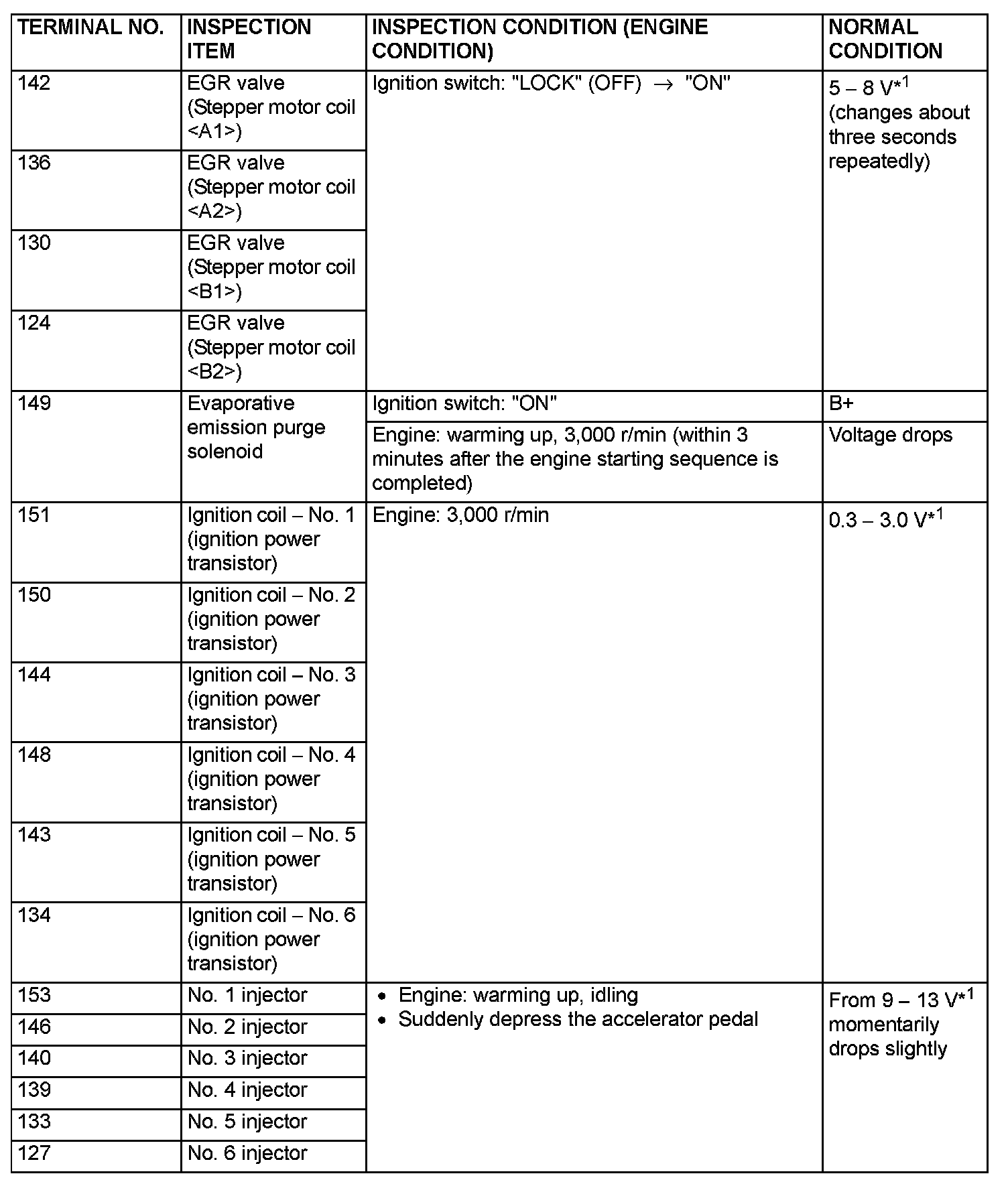

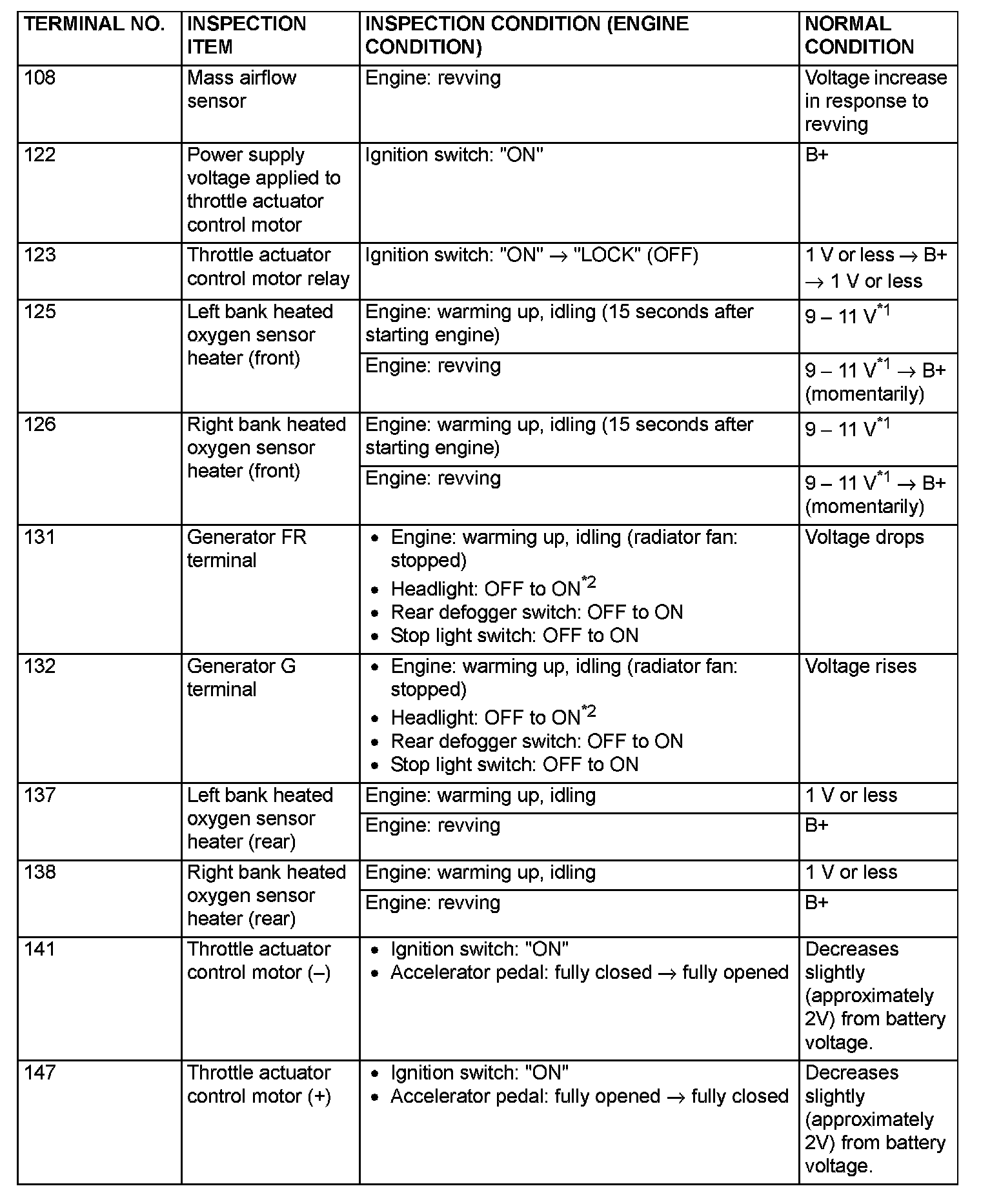

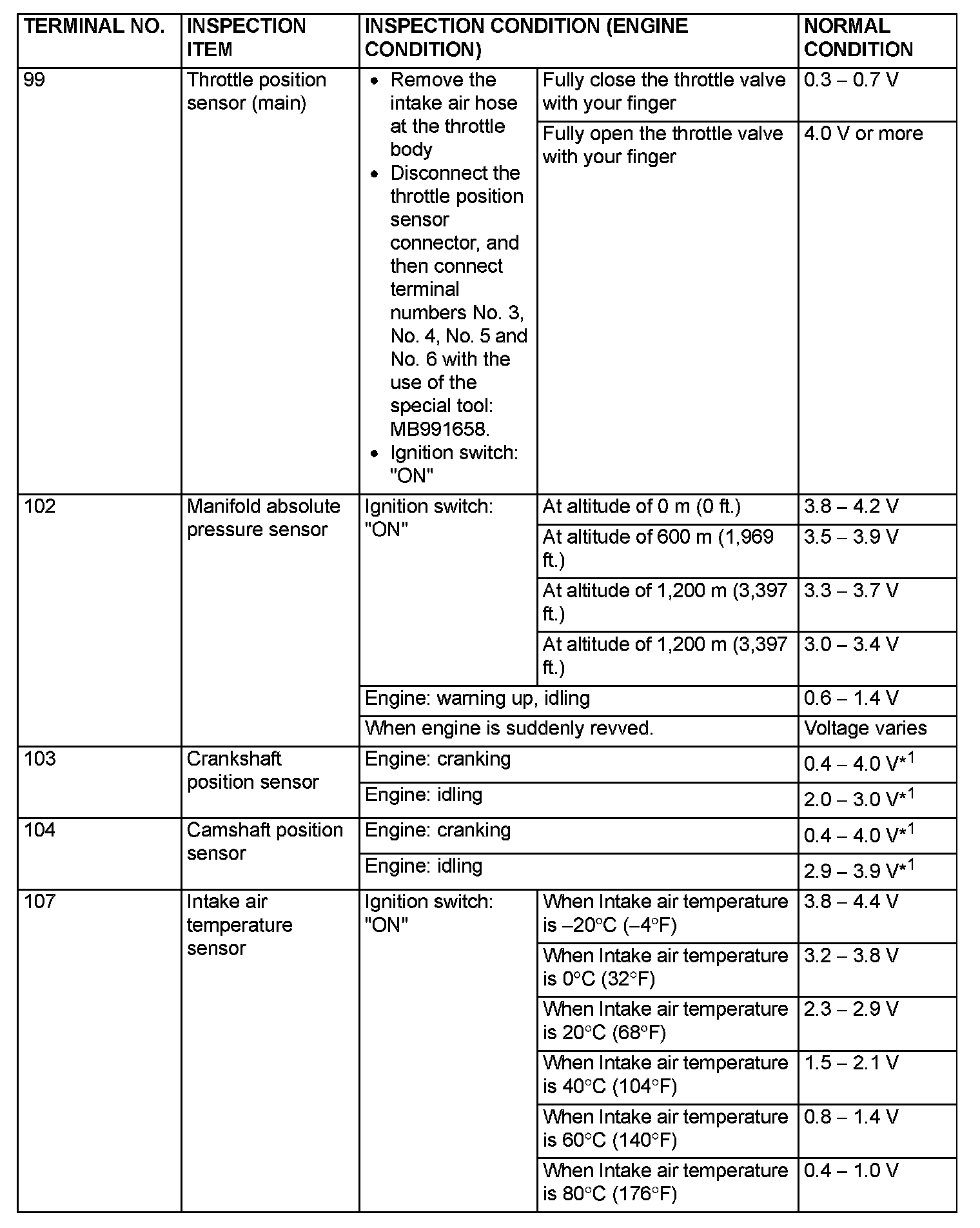

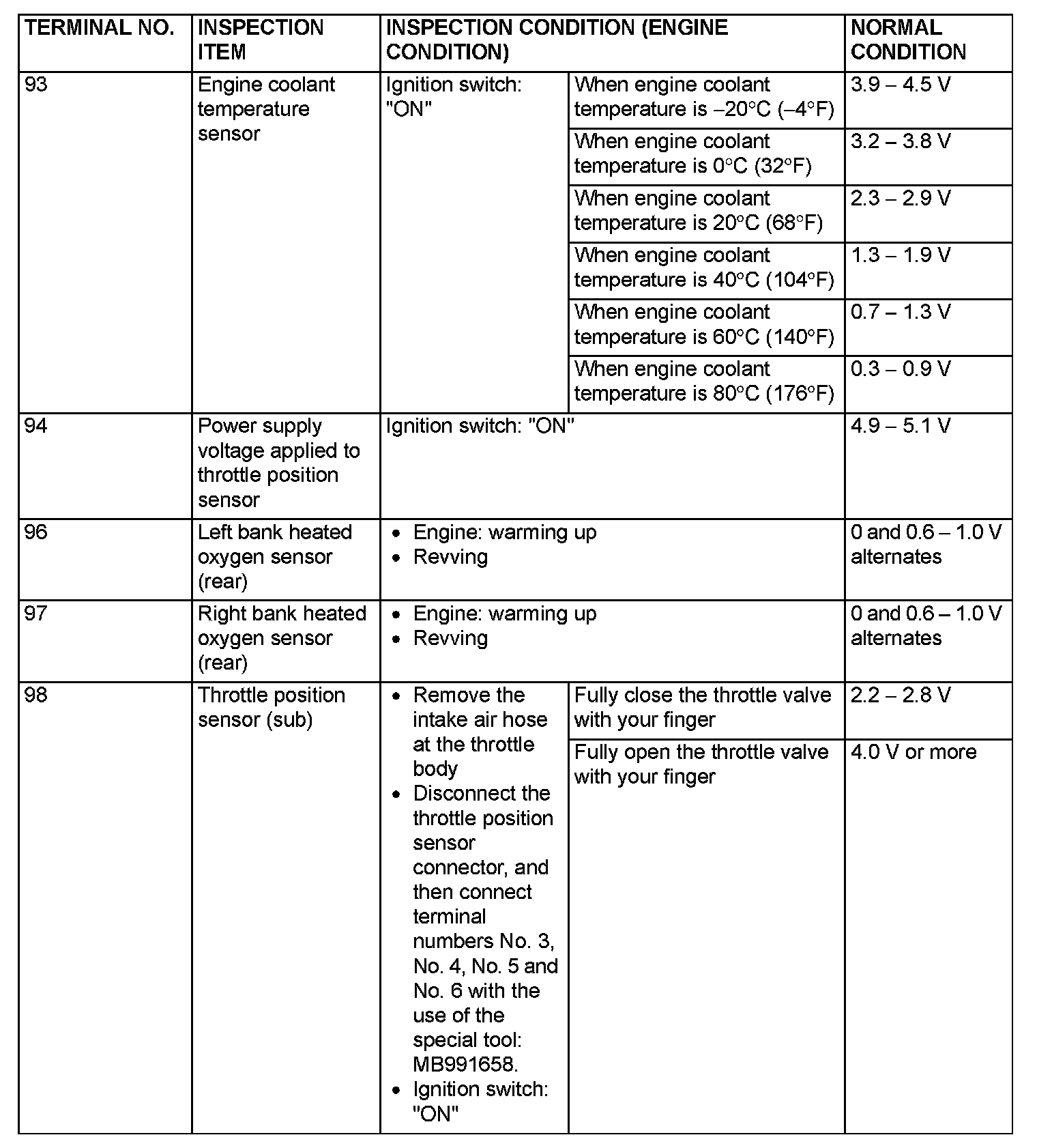

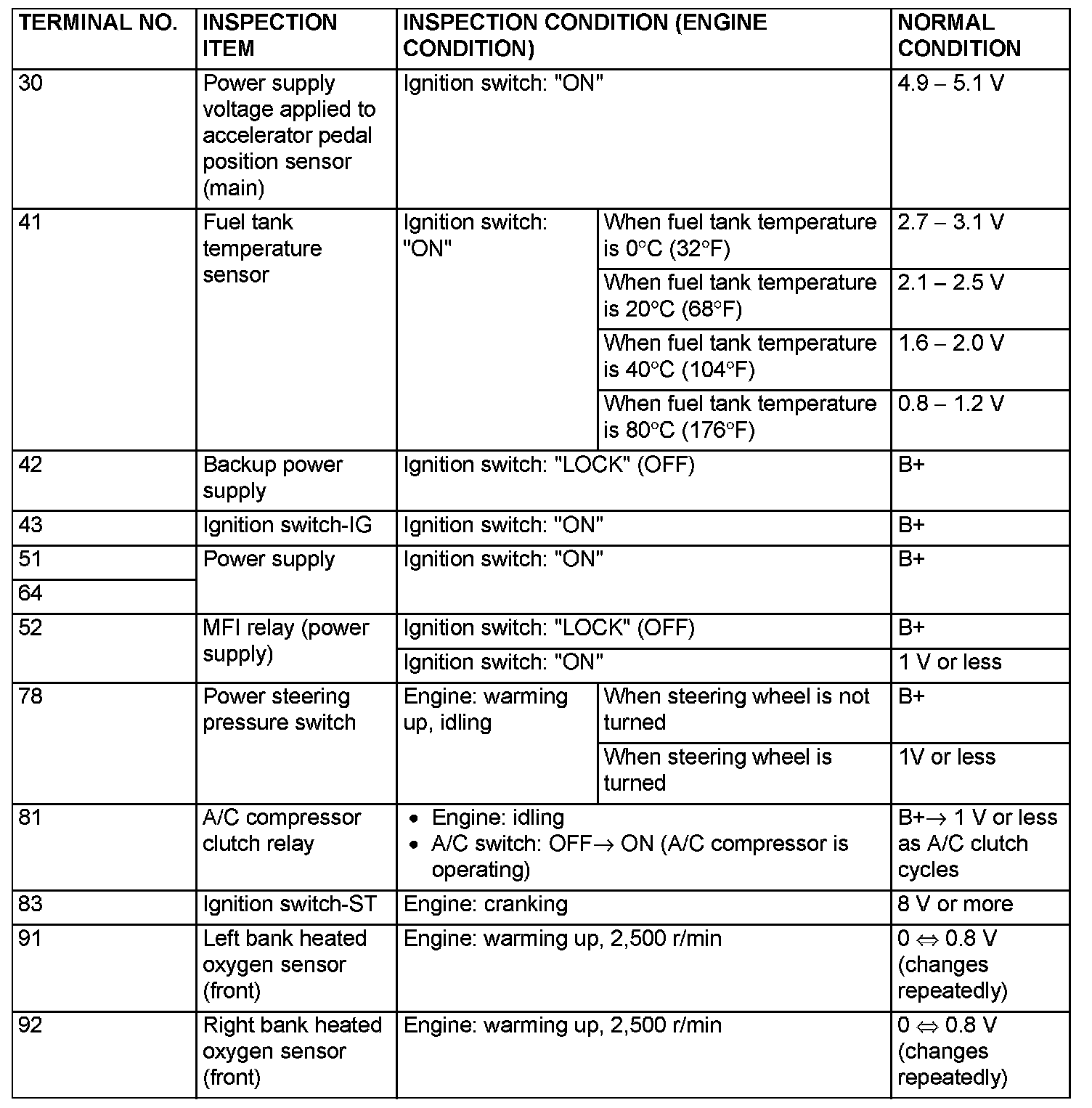

TERMINAL VOLTAGE CHECK CHART

Part 1:






Part 2:





Part 3:





Part 4:





Part 5:





Part 6:

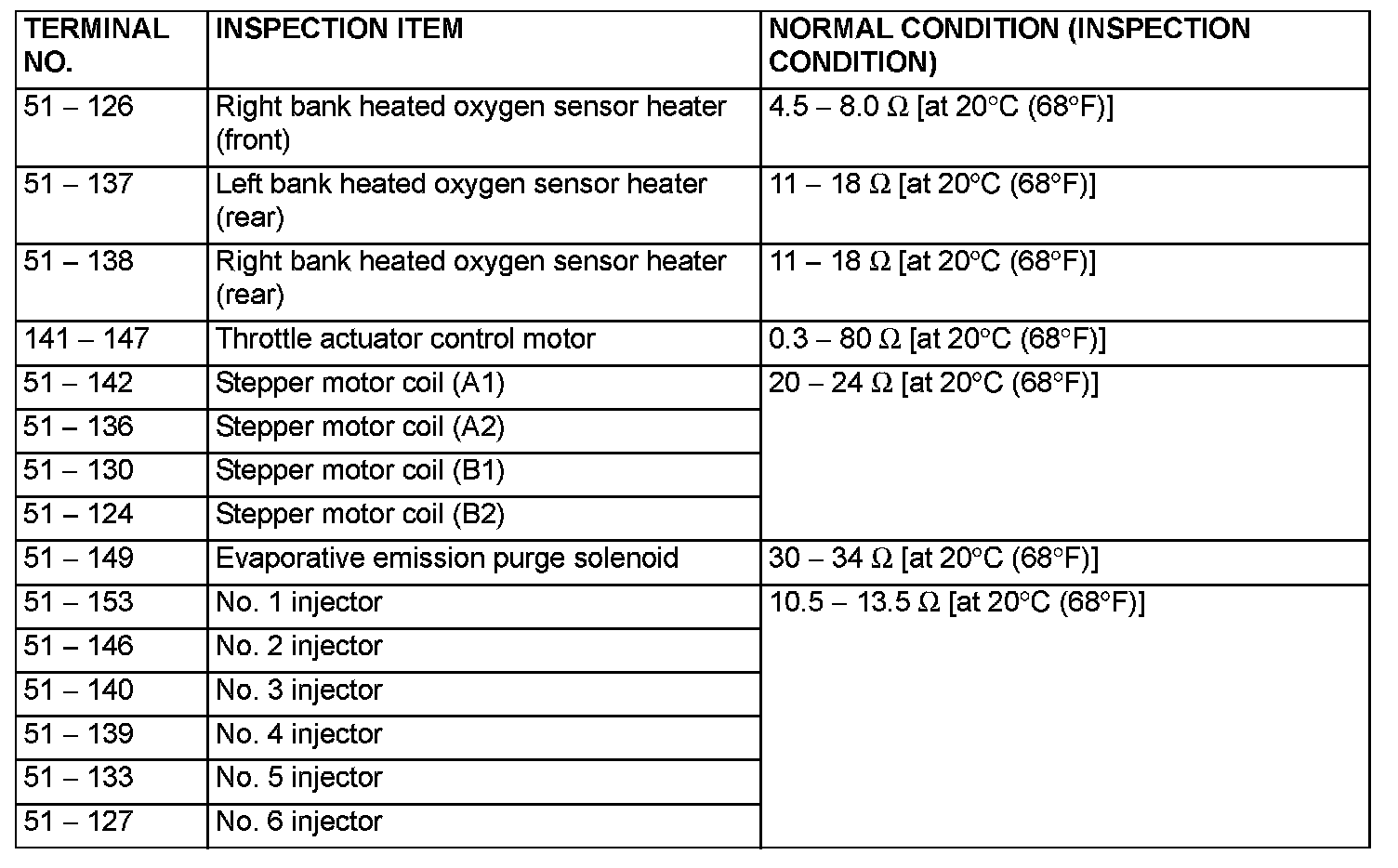

TERMINAL RESISTANCE AND CONTINUITY CHECK

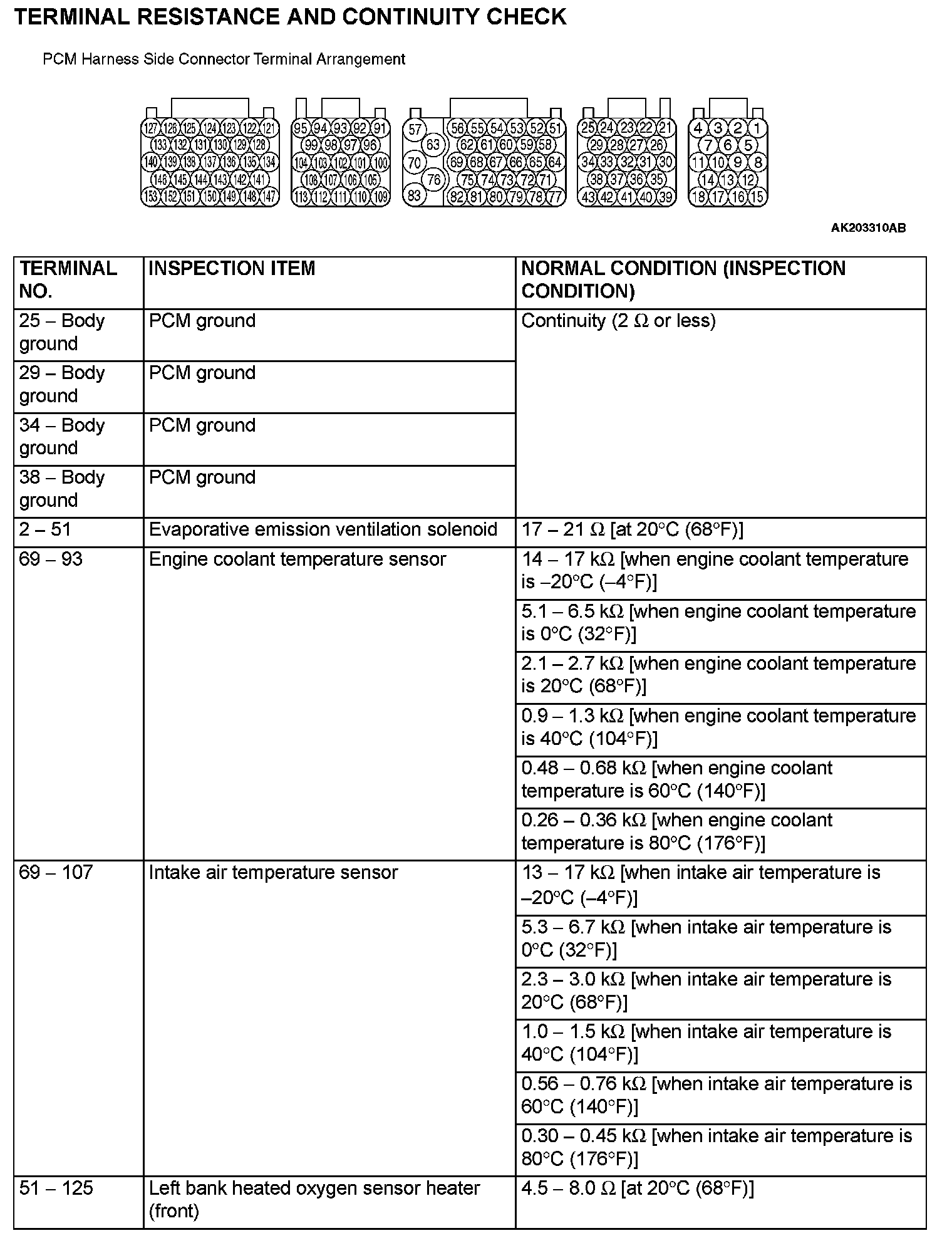

PCM Harness Side Connector Terminal Arrangement Part 1:

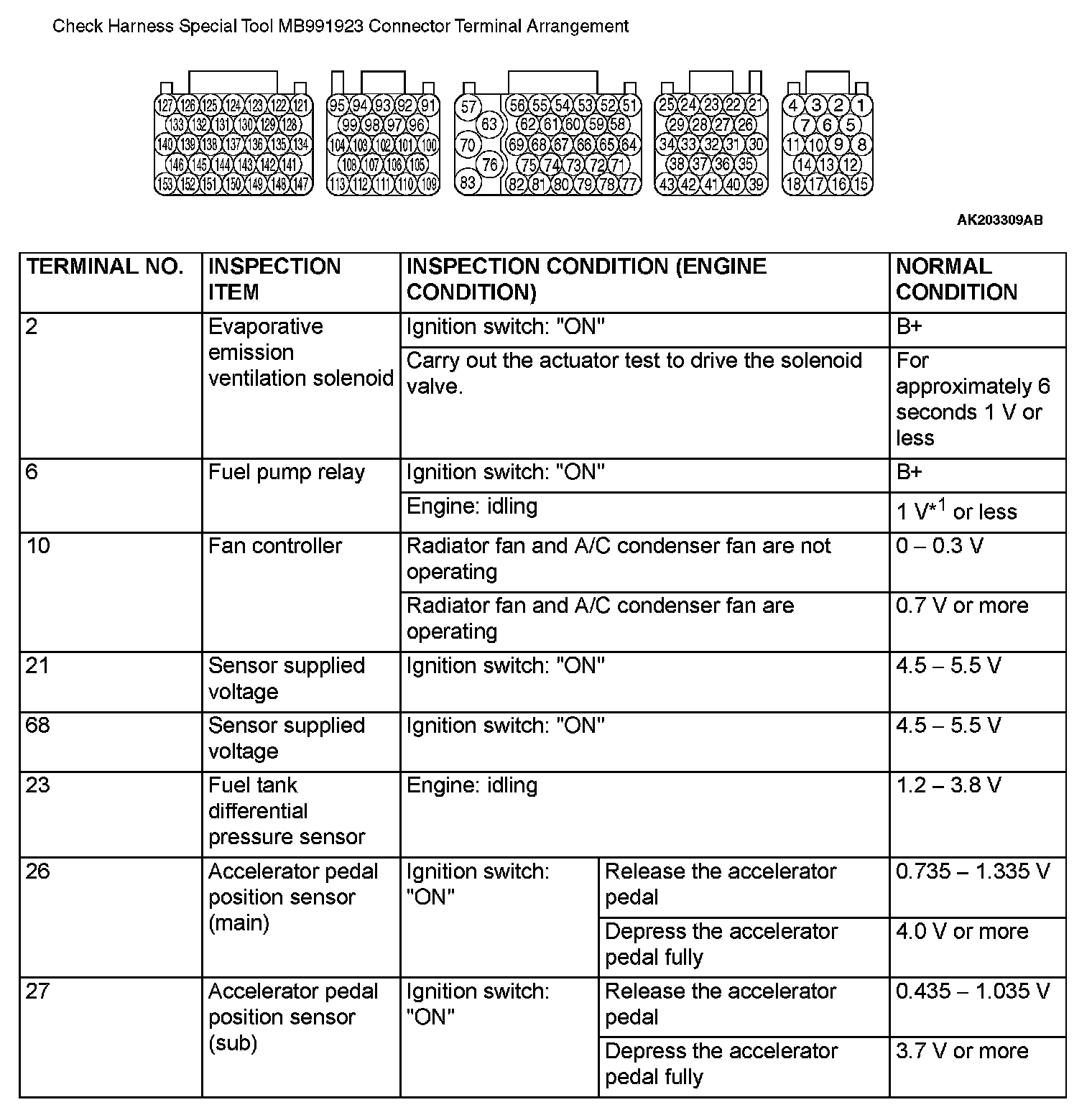

PCM Harness Side Connector Terminal Arrangement Part 2:
