Scan Tool Testing and Procedures

The table shows the service data and their normal condition, which are displayed during the "Data List."

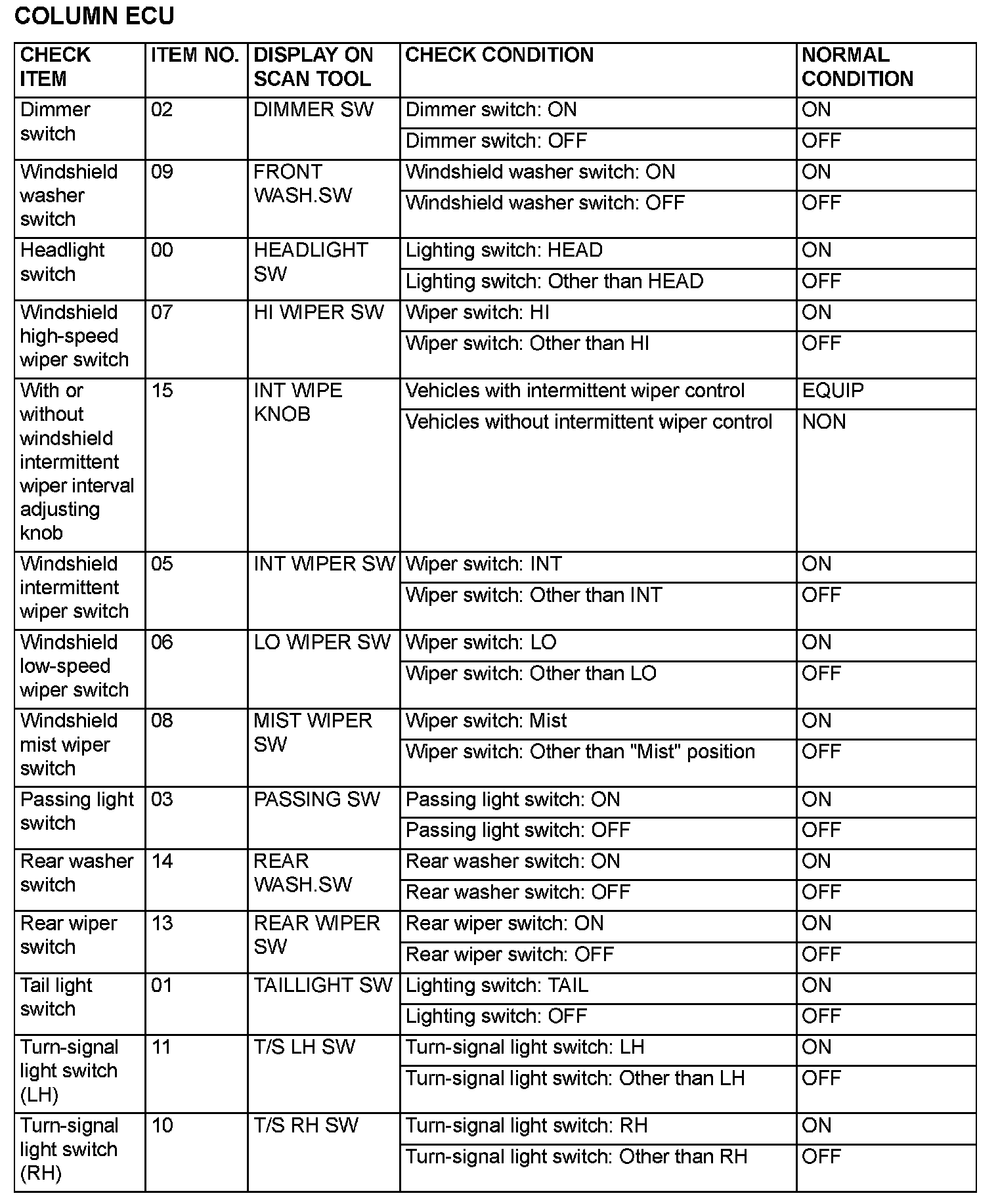

COLUMN ECU

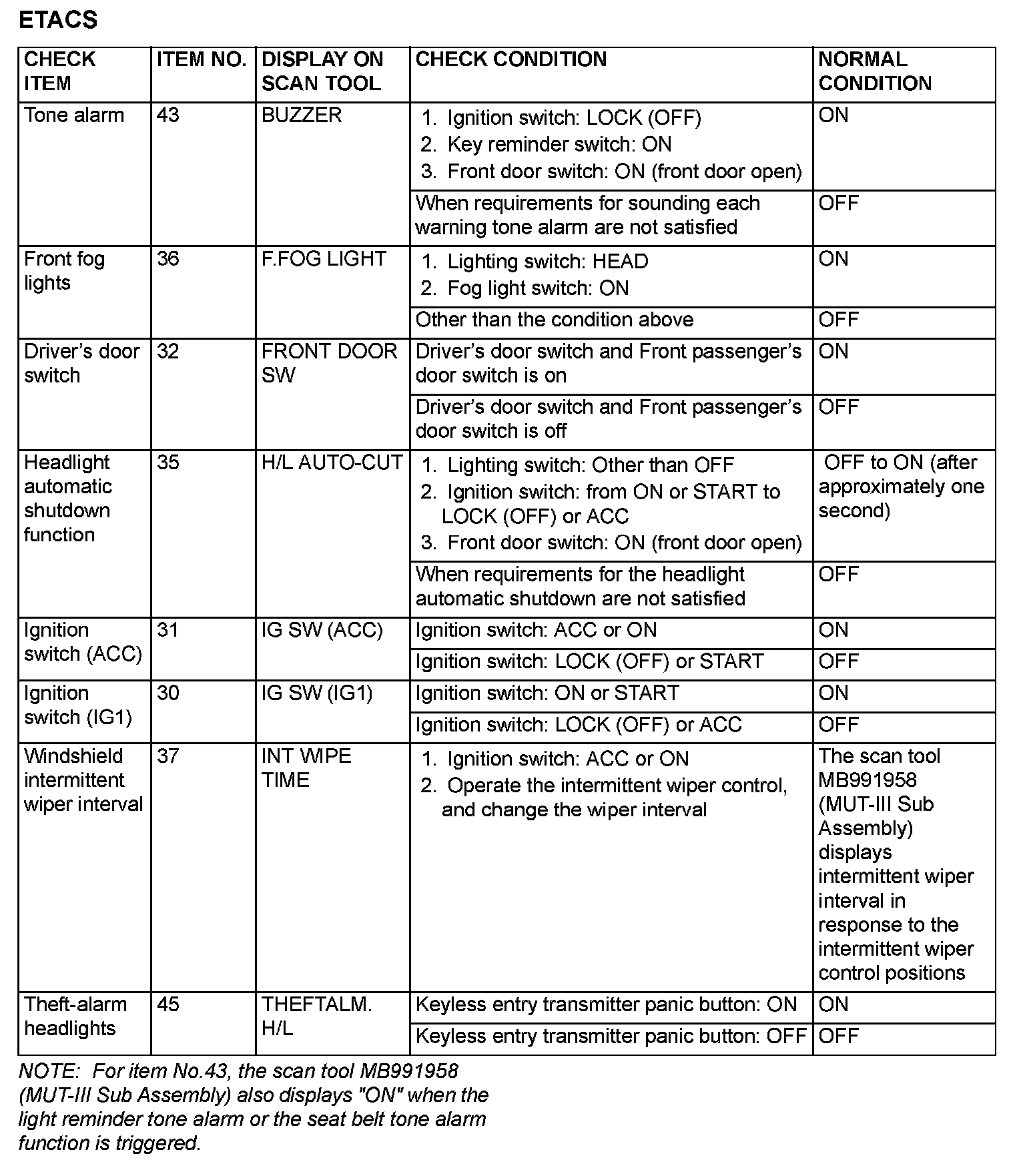

ETACS

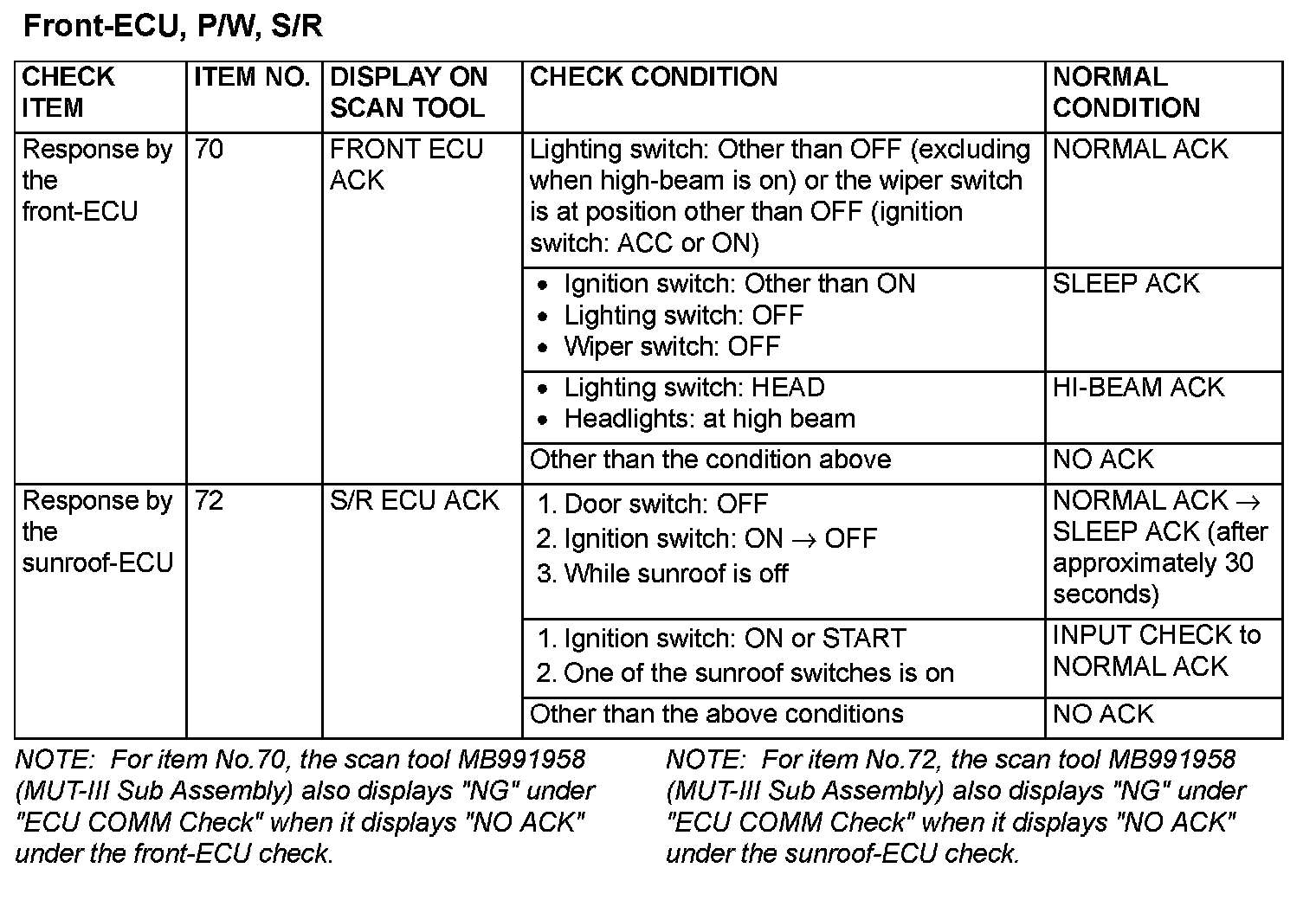

Front-ECU, P/W, S/R


The table shows the service data and their normal condition, which are displayed during the "Function Diag." The column "Normal condition" shows values, which are shown when each operation is made.

Part 1:

Part 2:

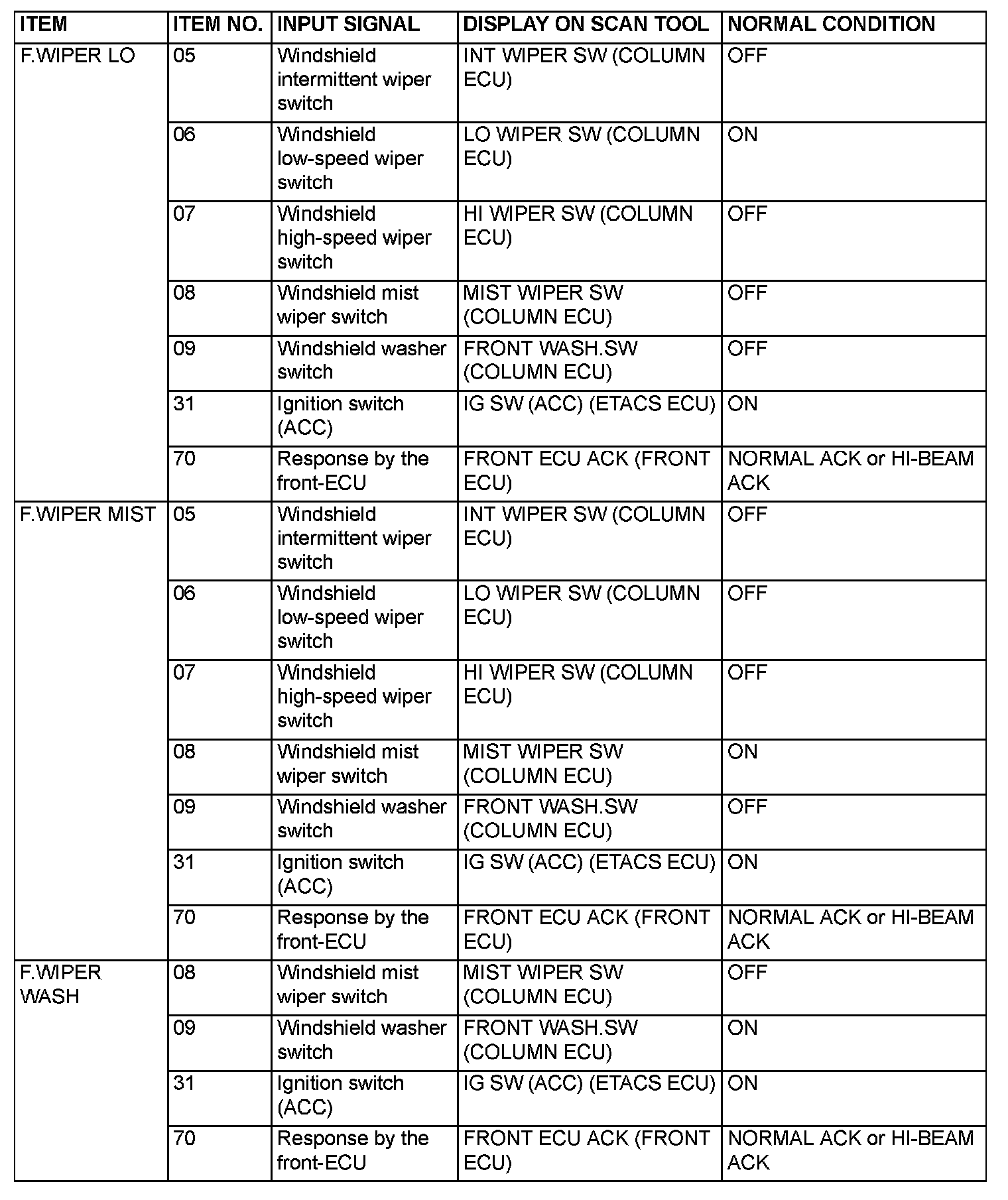

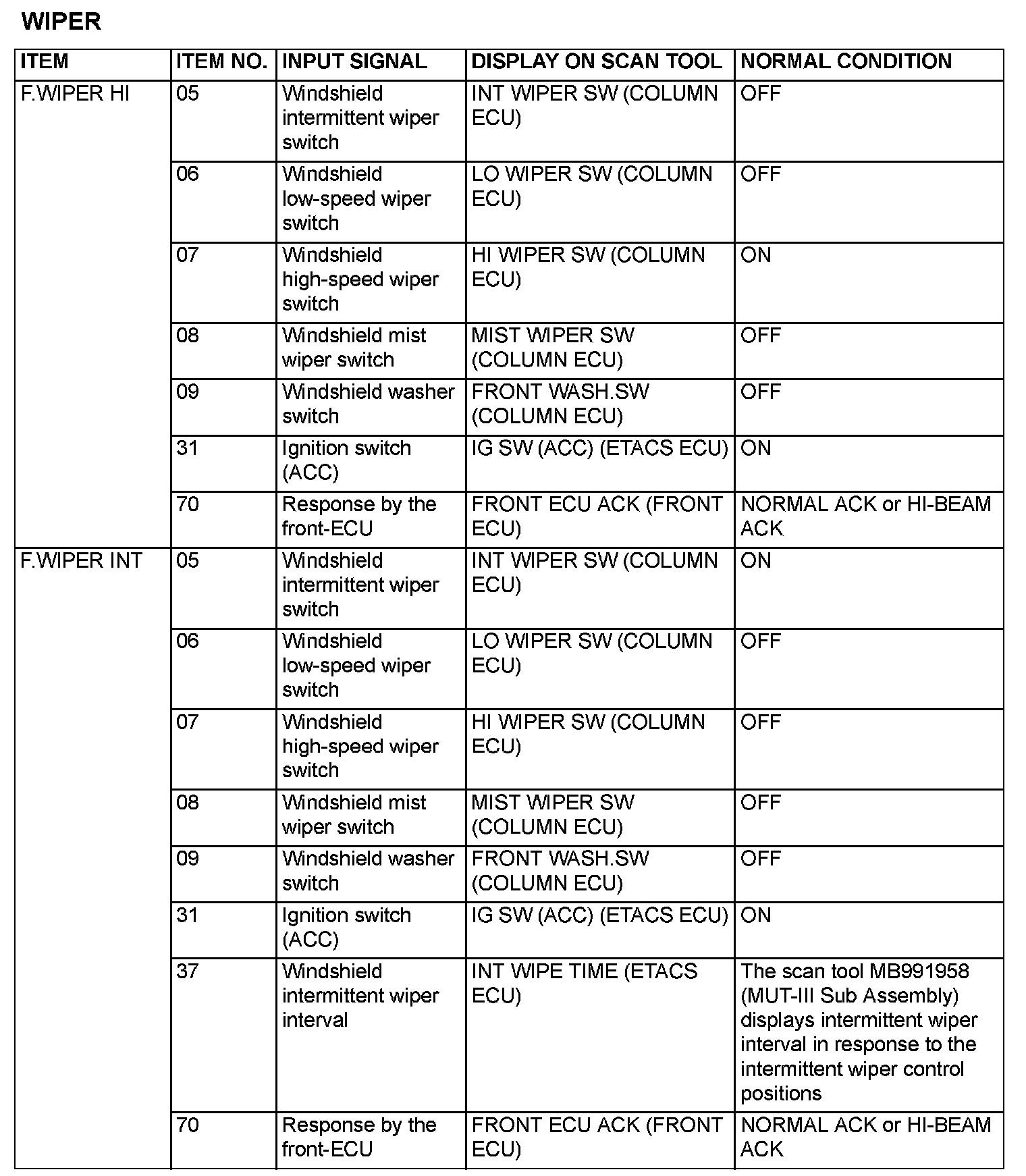

WIPER

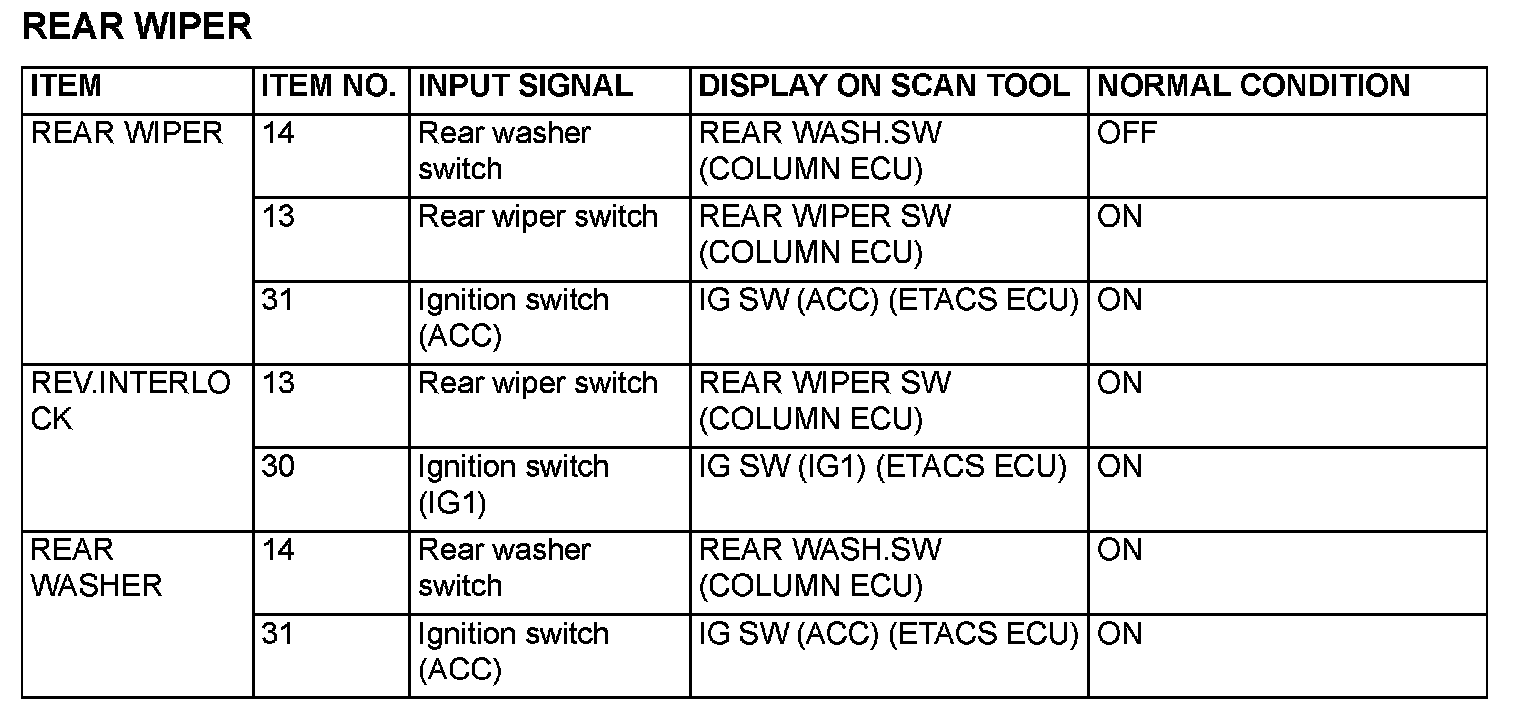

REAR WIPER

Part 1:

Part 2:

Part 3:

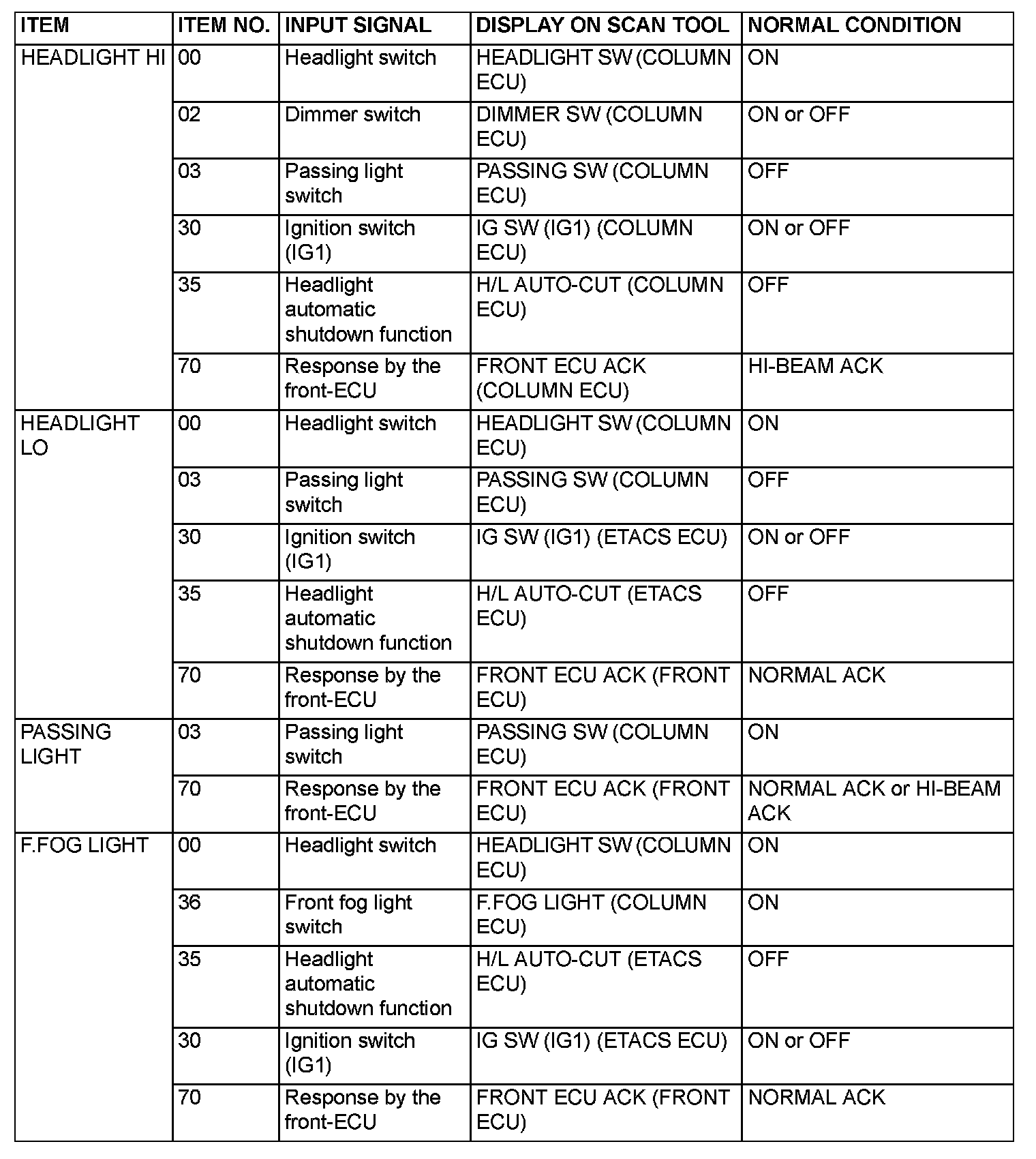

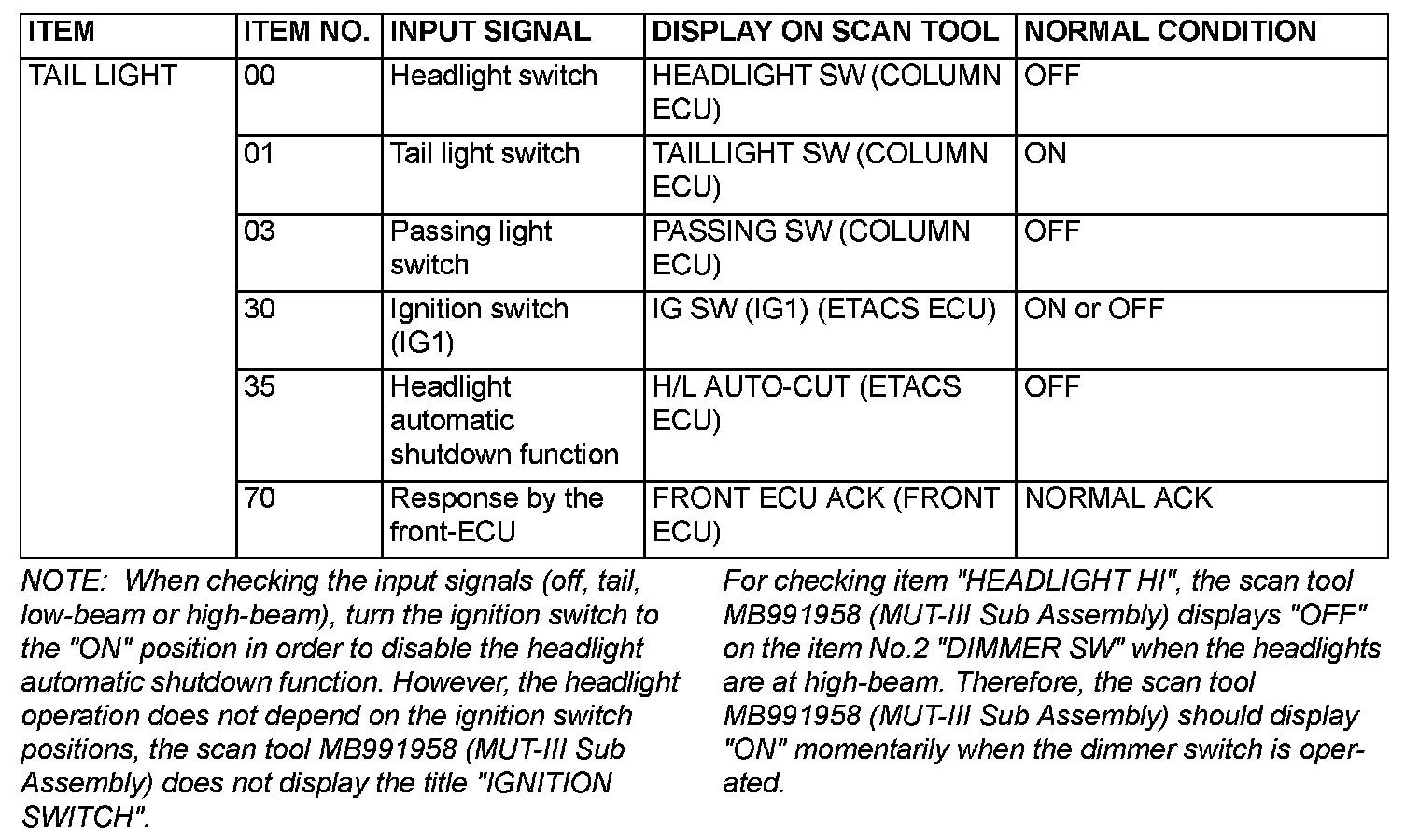

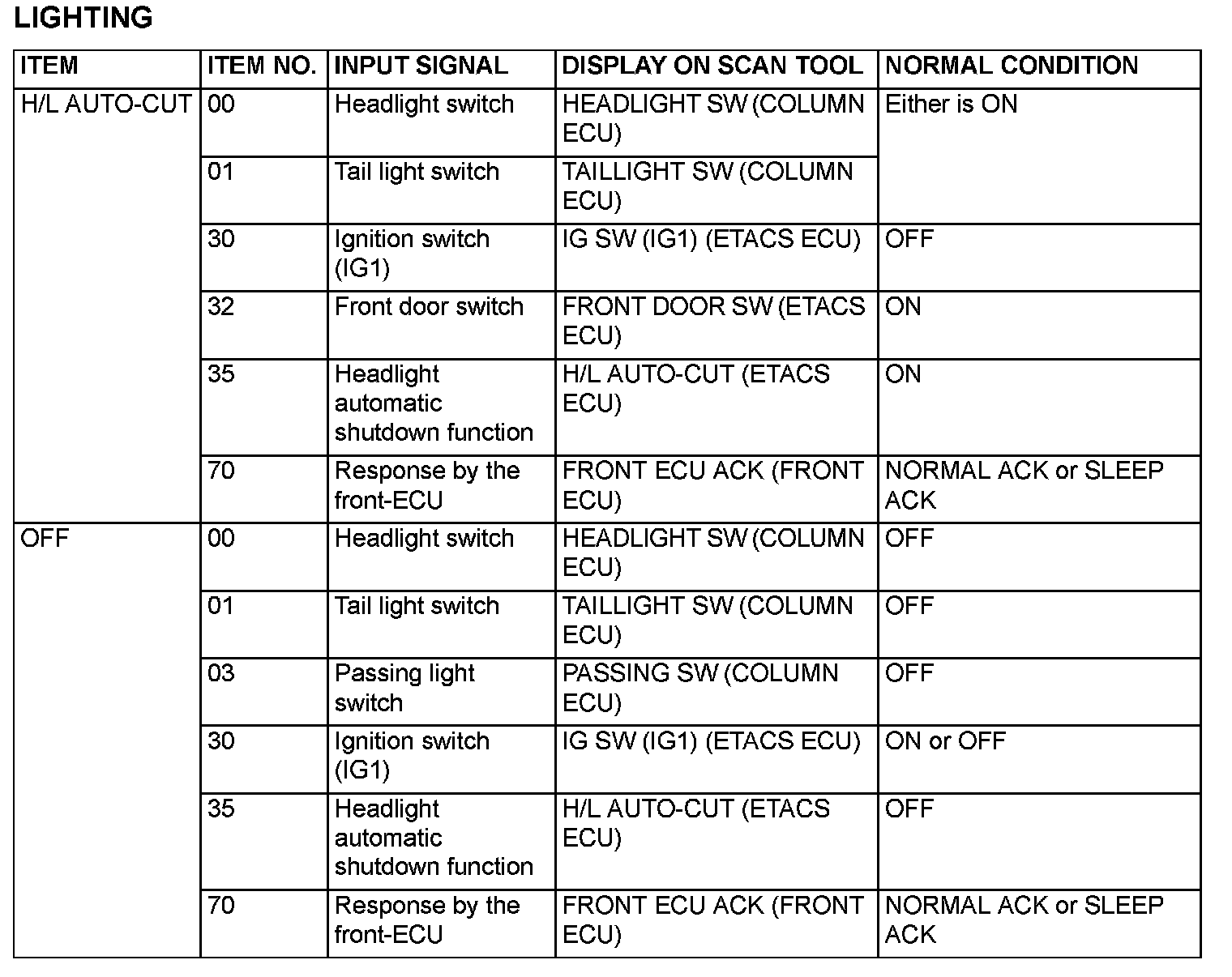

LIGHTING




TURN SIGNAL

Part 1:

Part 2:

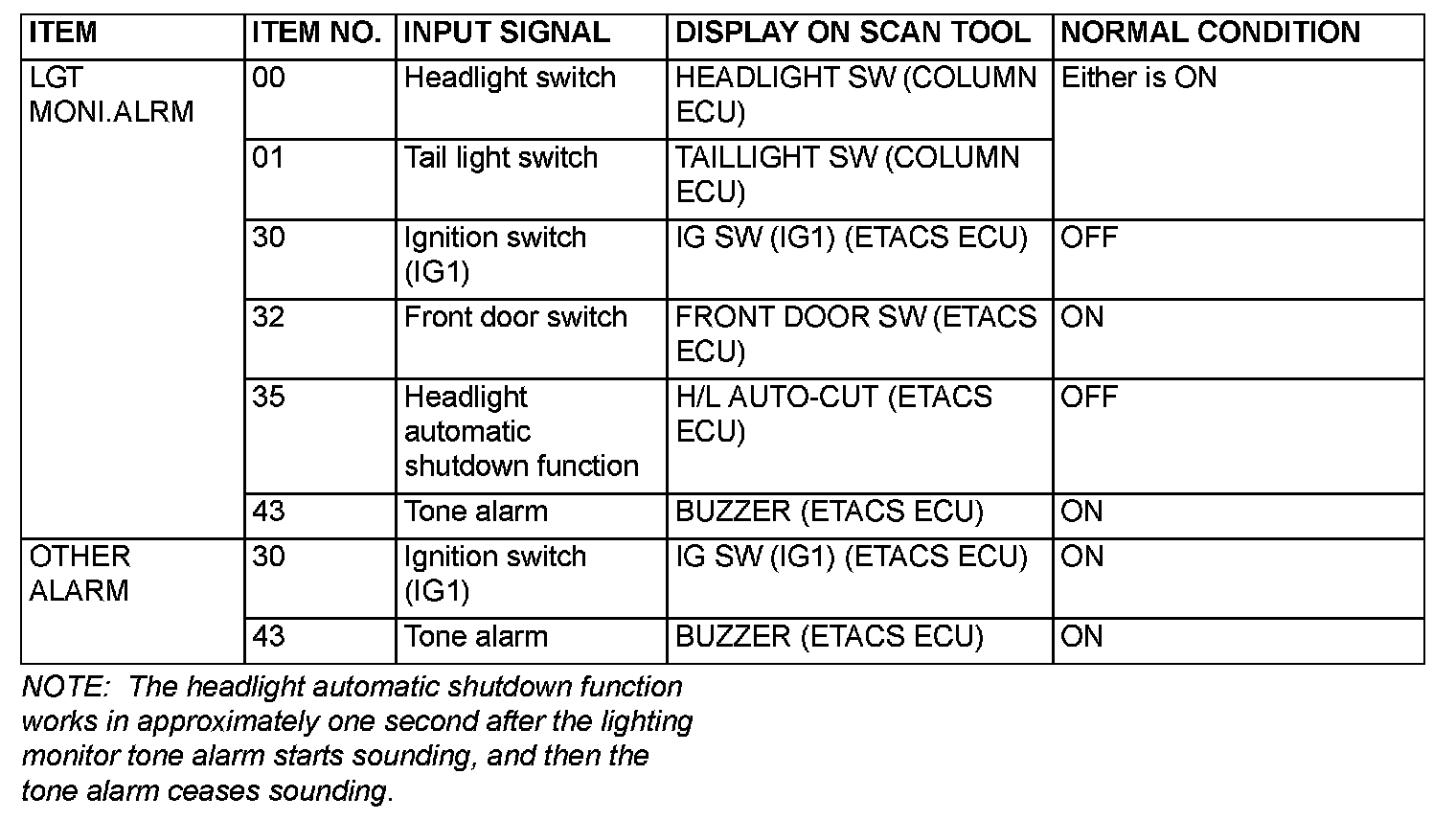

BUZZER




SUNROOF




THEFT-ALARM
