Oxygen Sensor: Service and Repair

EXHAUST MANIFOLD

Part 1:

Part 2:

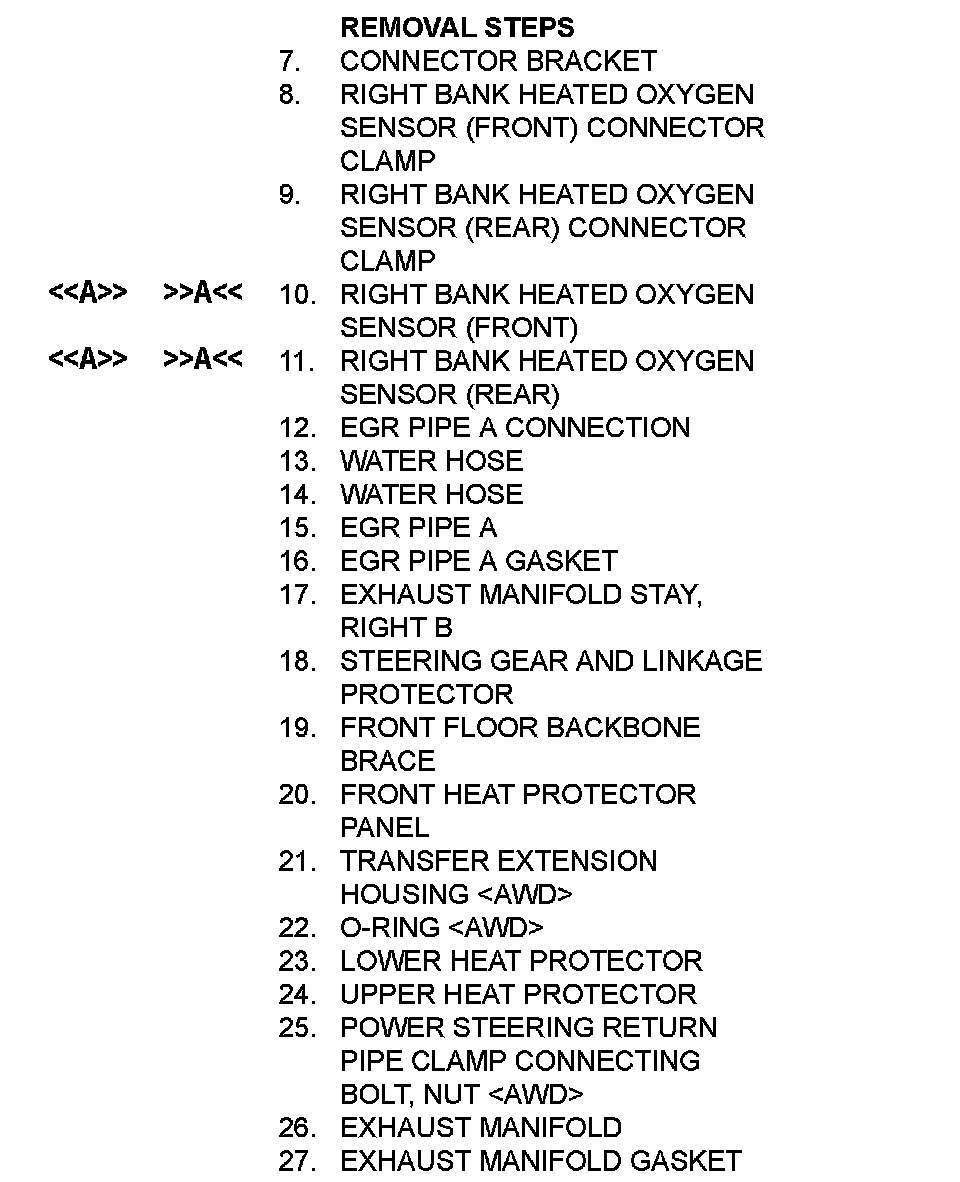

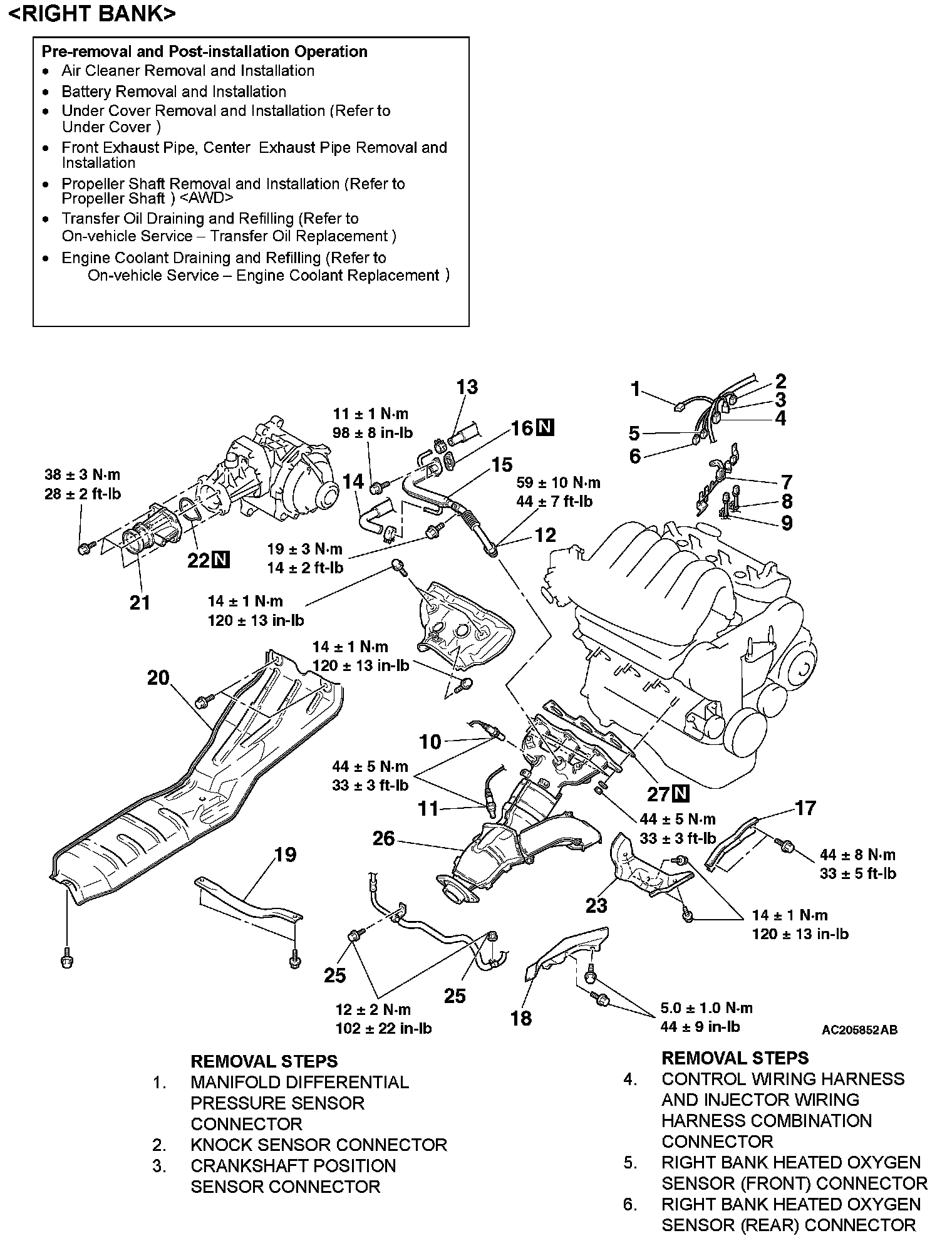

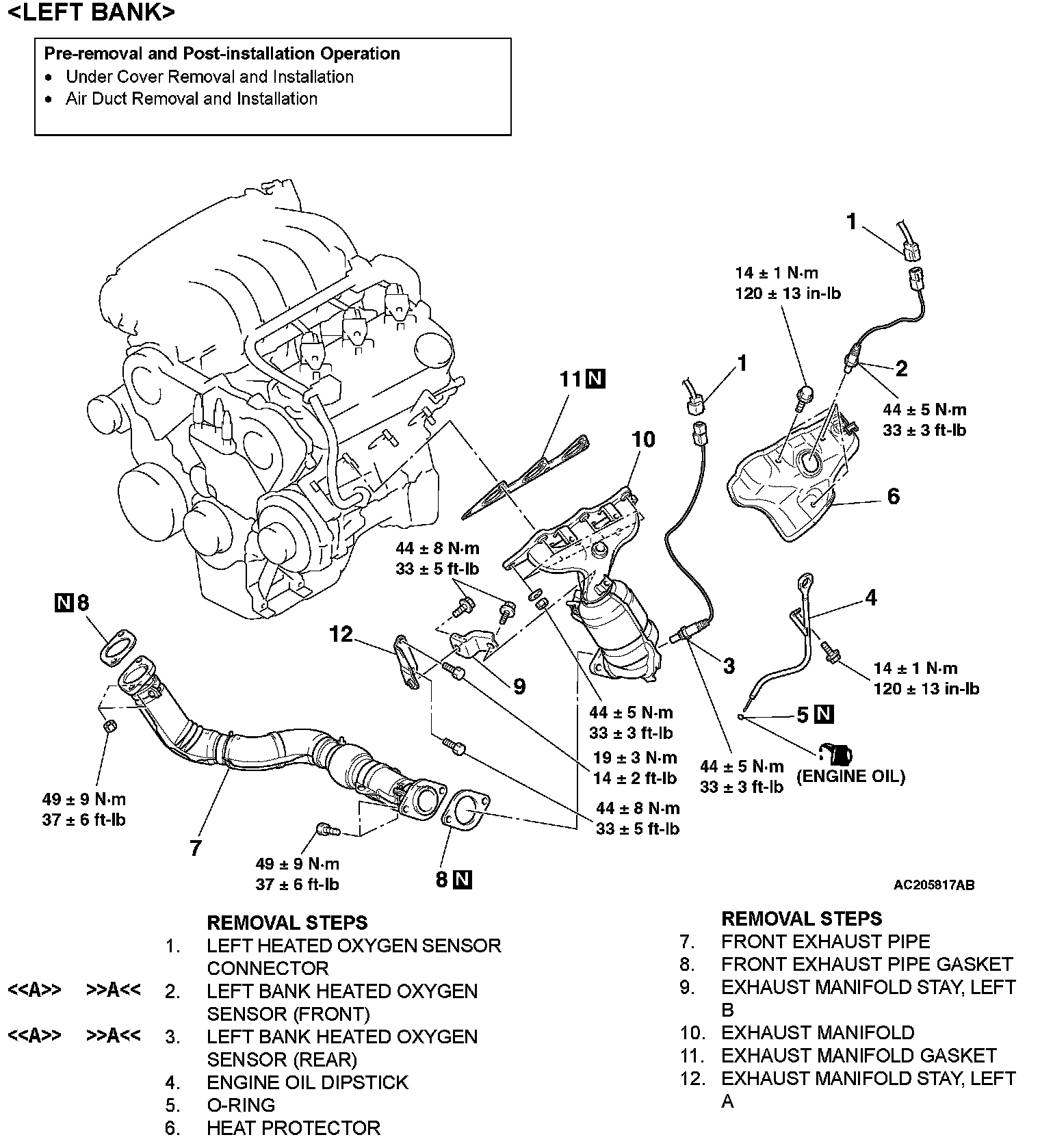

REMOVAL AND INSTALLATION

Required Special Tool:
- MD998770: Oxygen sensor wrench

REMOVAL SERVICE POINT

<>HEATED OXYGEN SENSOR REMOVAL

Use special tool MD998770 to remove the oxygen sensor.

INSTALLATION SERVICE POINT

>>A<< HEATED OXYGEN SENSOR INSTALLATION




Use special tool MD998770 to install the oxygen sensor.

INSPECTION
Check the following points; replace the part if a problem is found.

Exhaust Manifold Check

1. Check for damage or cracking of any part.
2. Using a straight edge and a feeler gauge, check for distortion of the cylinder head installation surface.

Standard value: 0.15 mm (0.006 inch) or less

Limit: 0.20 mm (0.008 inch)
