Special Tools

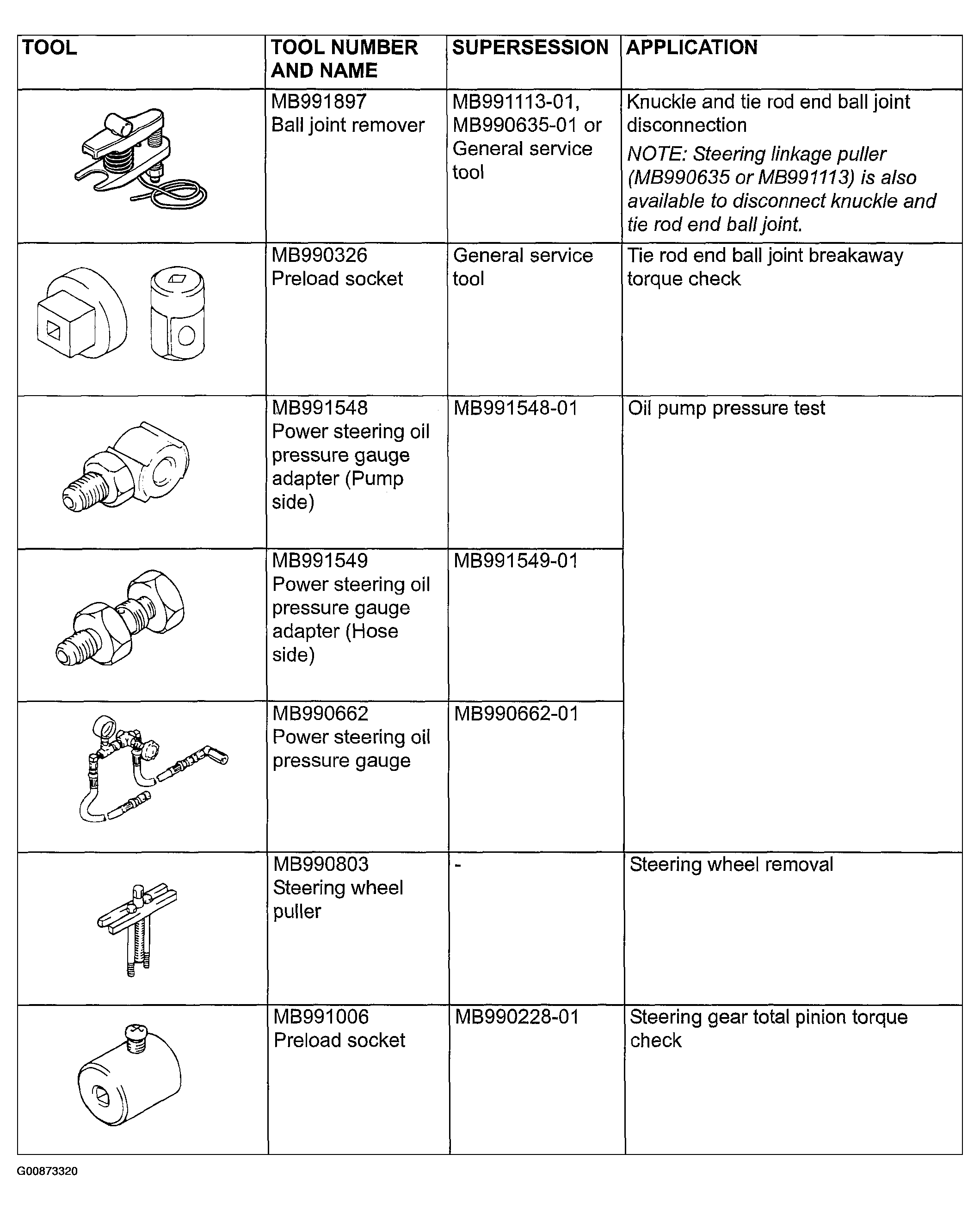

Fig 1: Identifying Special Tools (1 Of 4)
G00873320Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

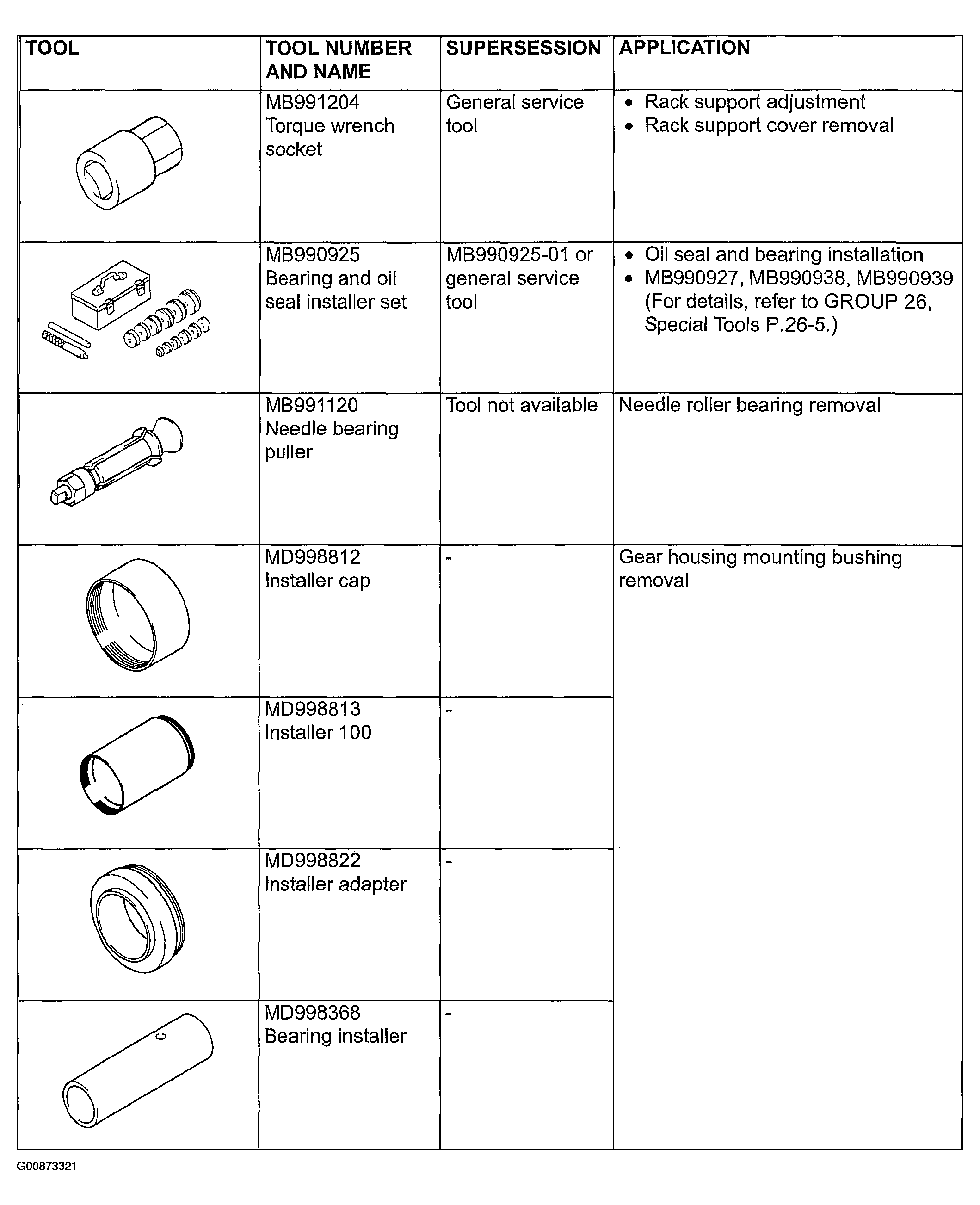

Fig 2: Identifying Special Tools (2 Of 4)
G00873321Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

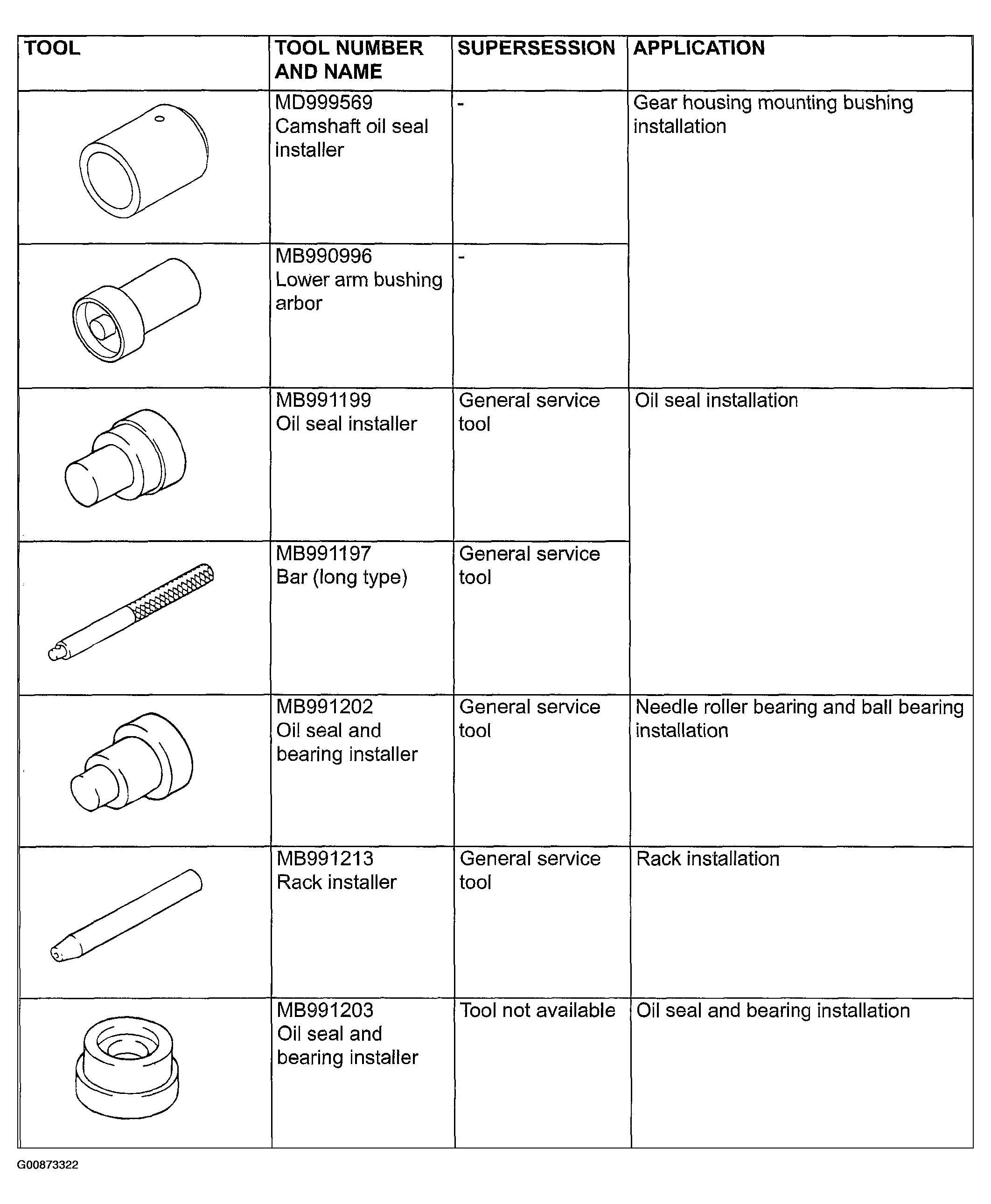

Fig 3: Identifying Special Tools (3 Of 4)
G00873322Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

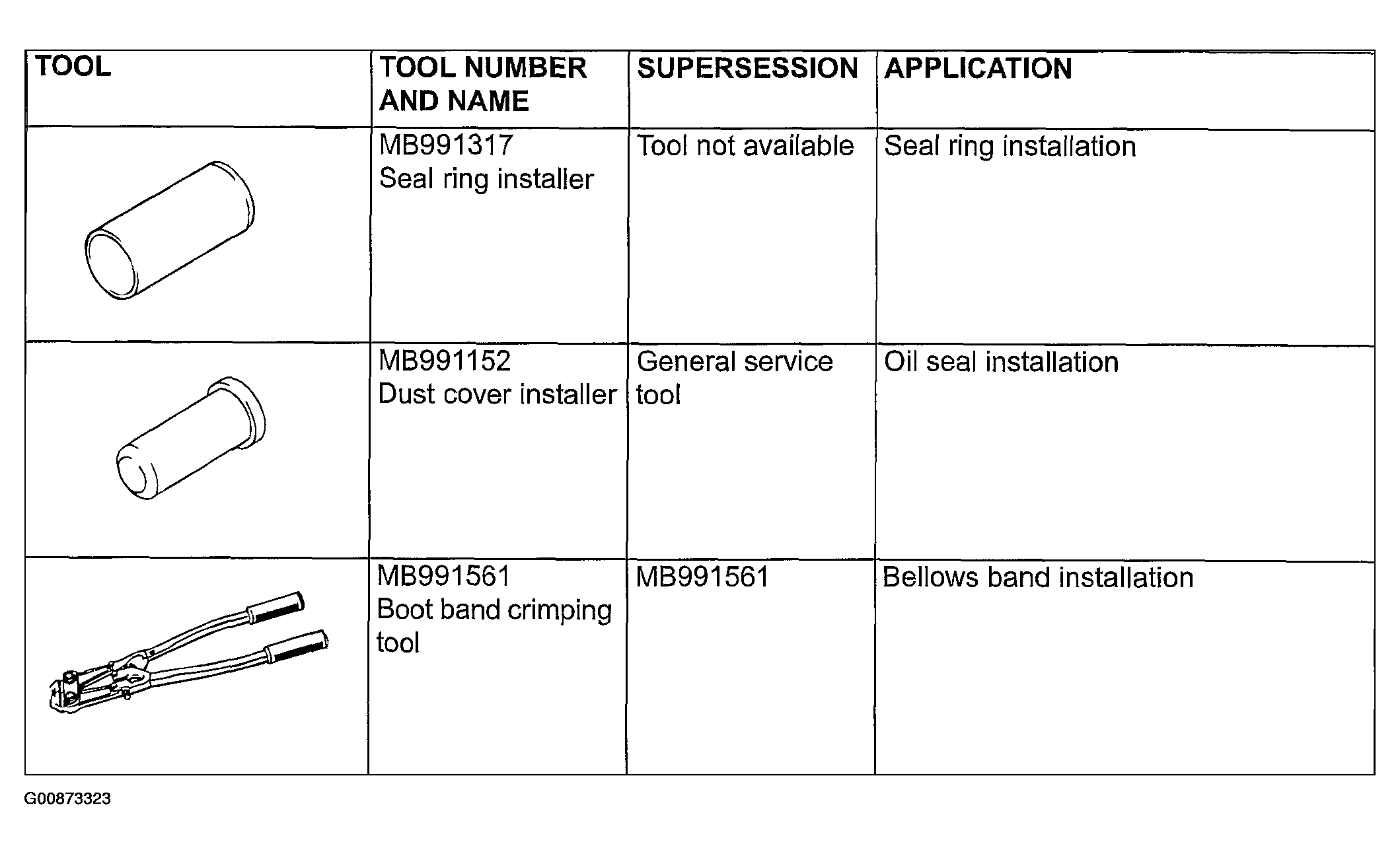

Fig 4: Identifying Special Tools (4 Of 4)
G00873323Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
