Data List Reference Table

CAUTION:

When shifting the selector lever to "D" range, apply the brakes should be applied so that the vehicle does not move forward.
Driving tests always need two persons: one driver and one observer.

NOTE: *: After the inspection is completed, disconnect the throttle position sensor connector, and then delete the diagnostic trouble code using use of scan tool MB991958.

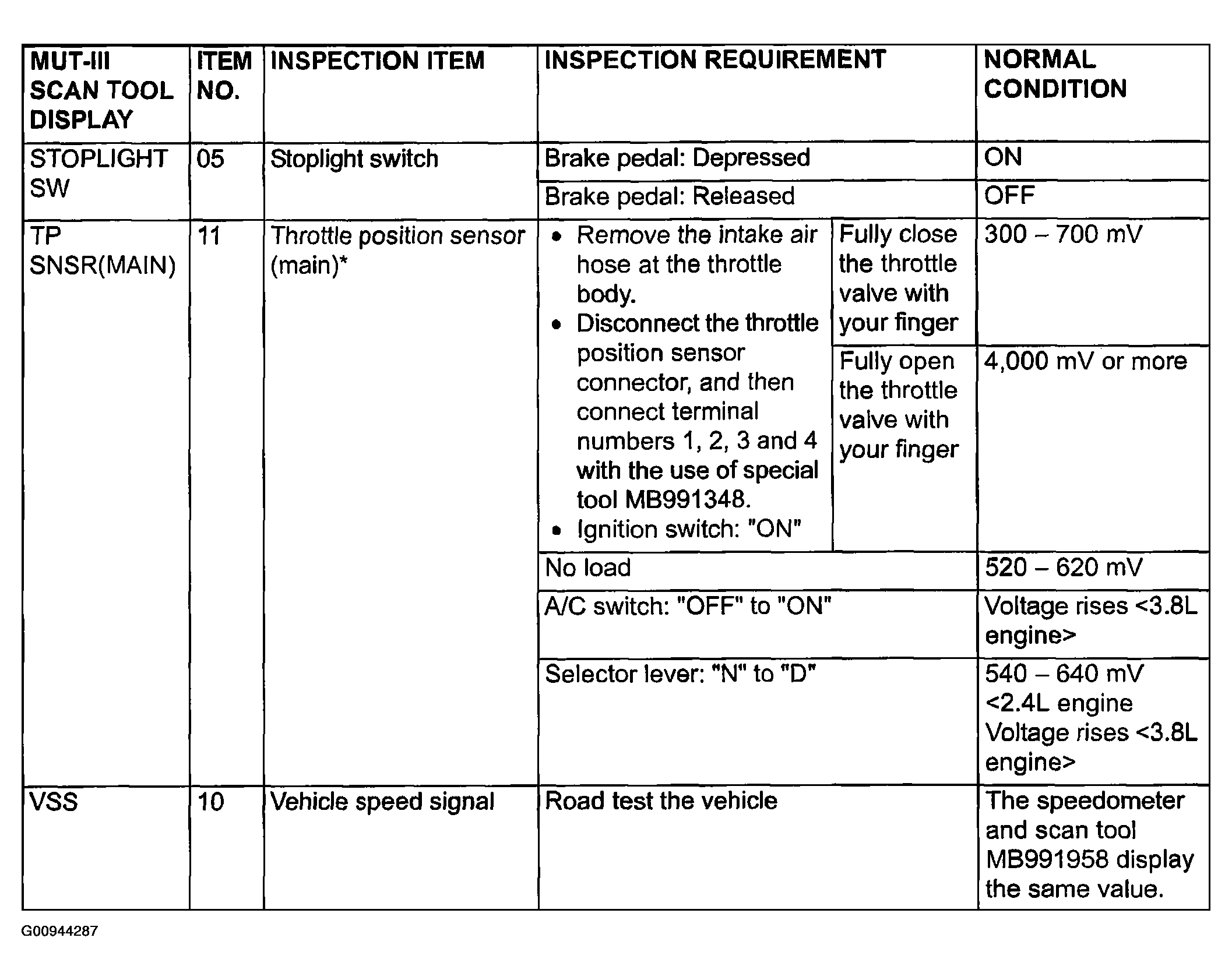

Fig 1: Identifying Data List Reference Table (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

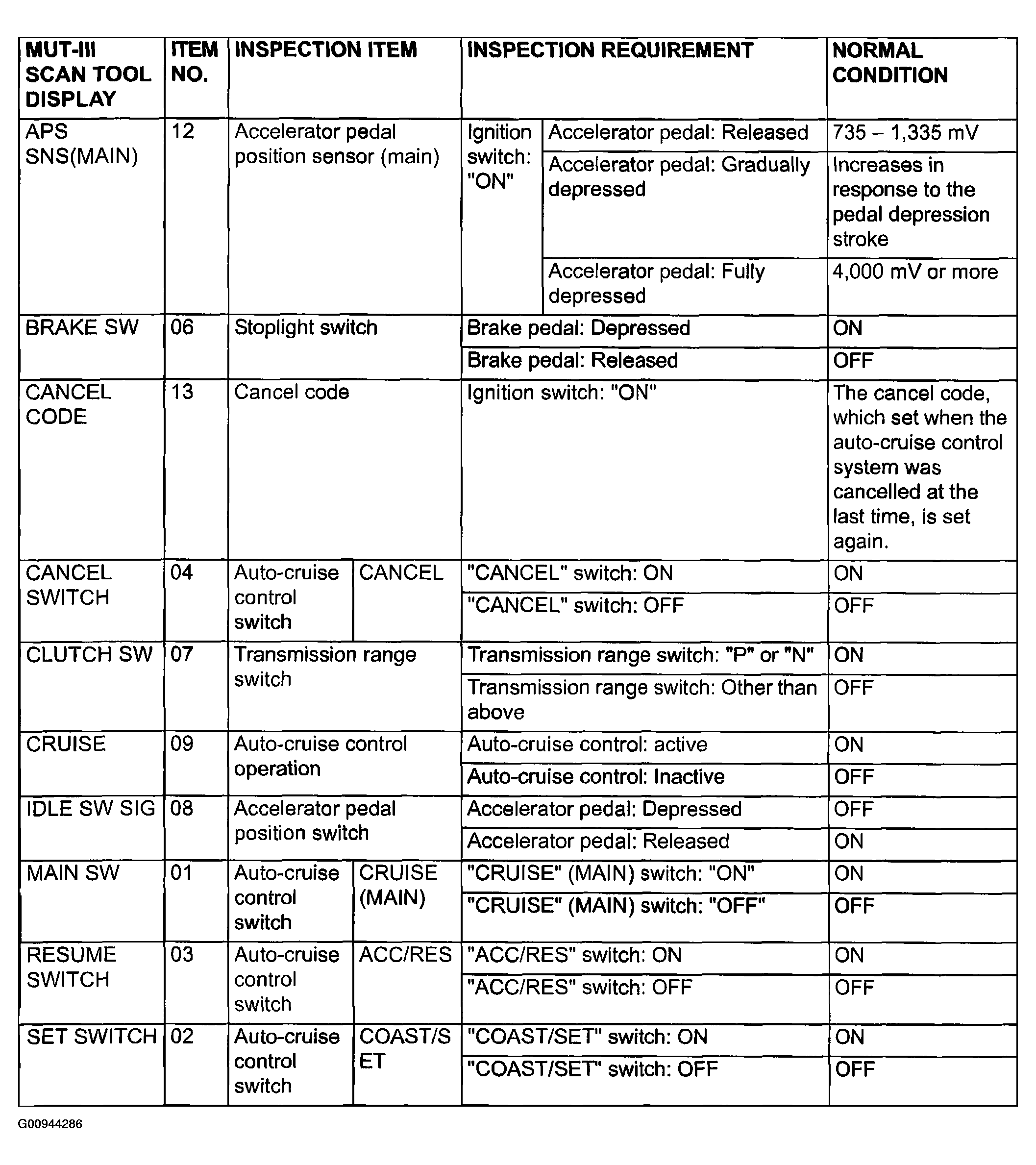

Fig 2: Identifying Data List Reference Table (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
