DTC 15: Auto-cruise Control Switch System: Notes

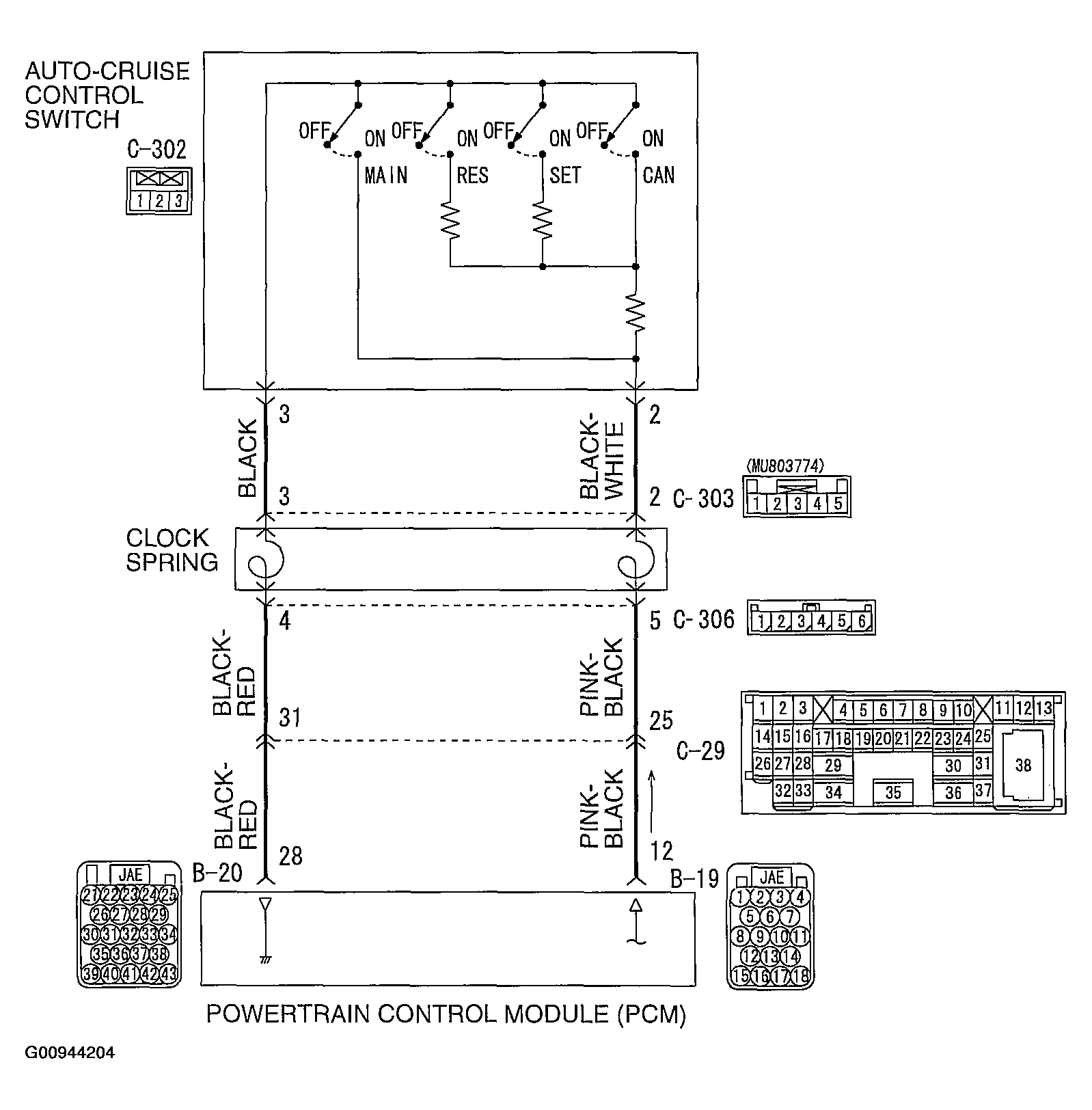

Fig 1: Identifying Auto-Cruise Control Switch System Circuit Diagram
G00944204Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

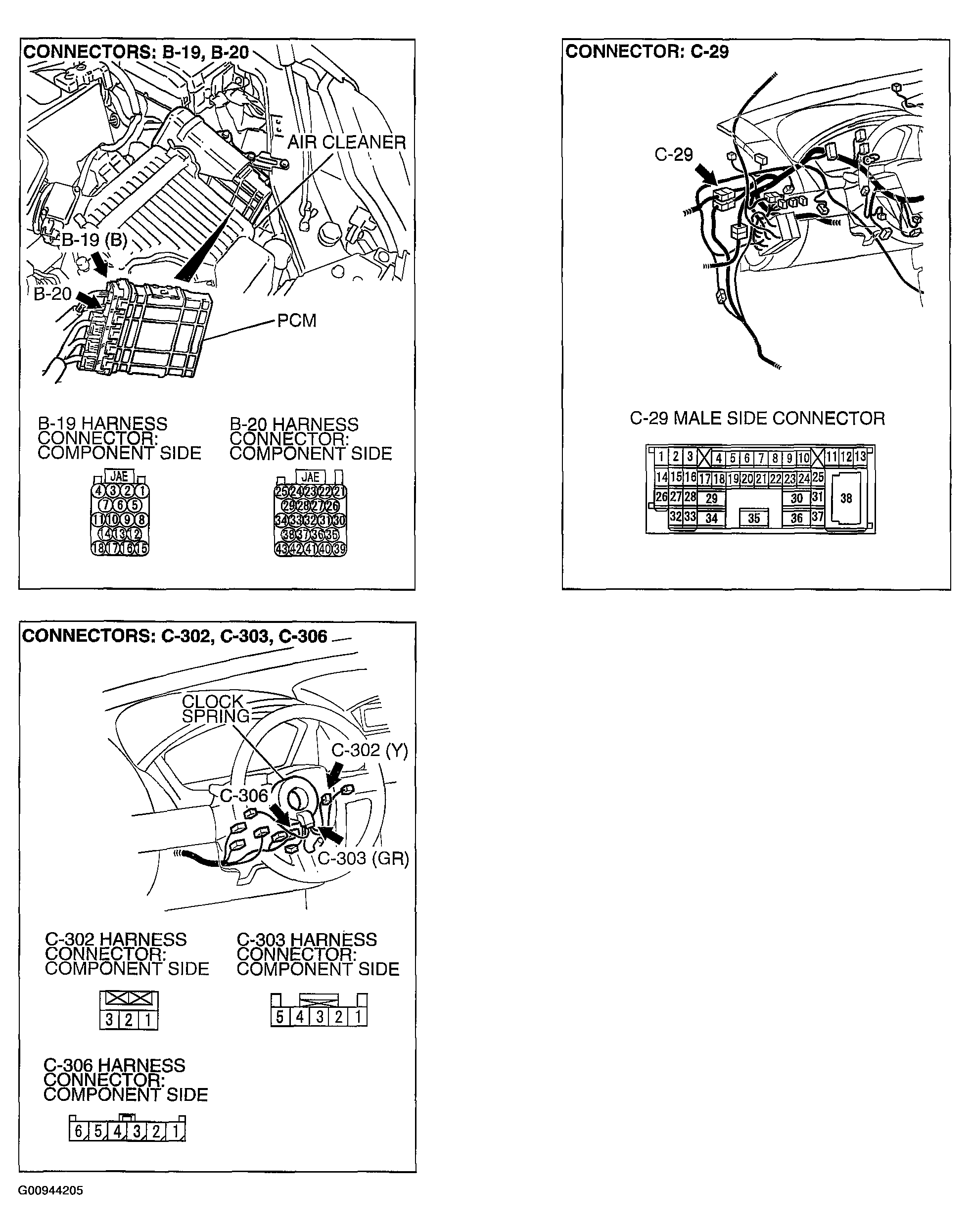

Fig 2: Identifying Connectors: B-19, B-20, C-29, C-302, C-303, C-306
G00944205Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
