Disassembly And Assembly

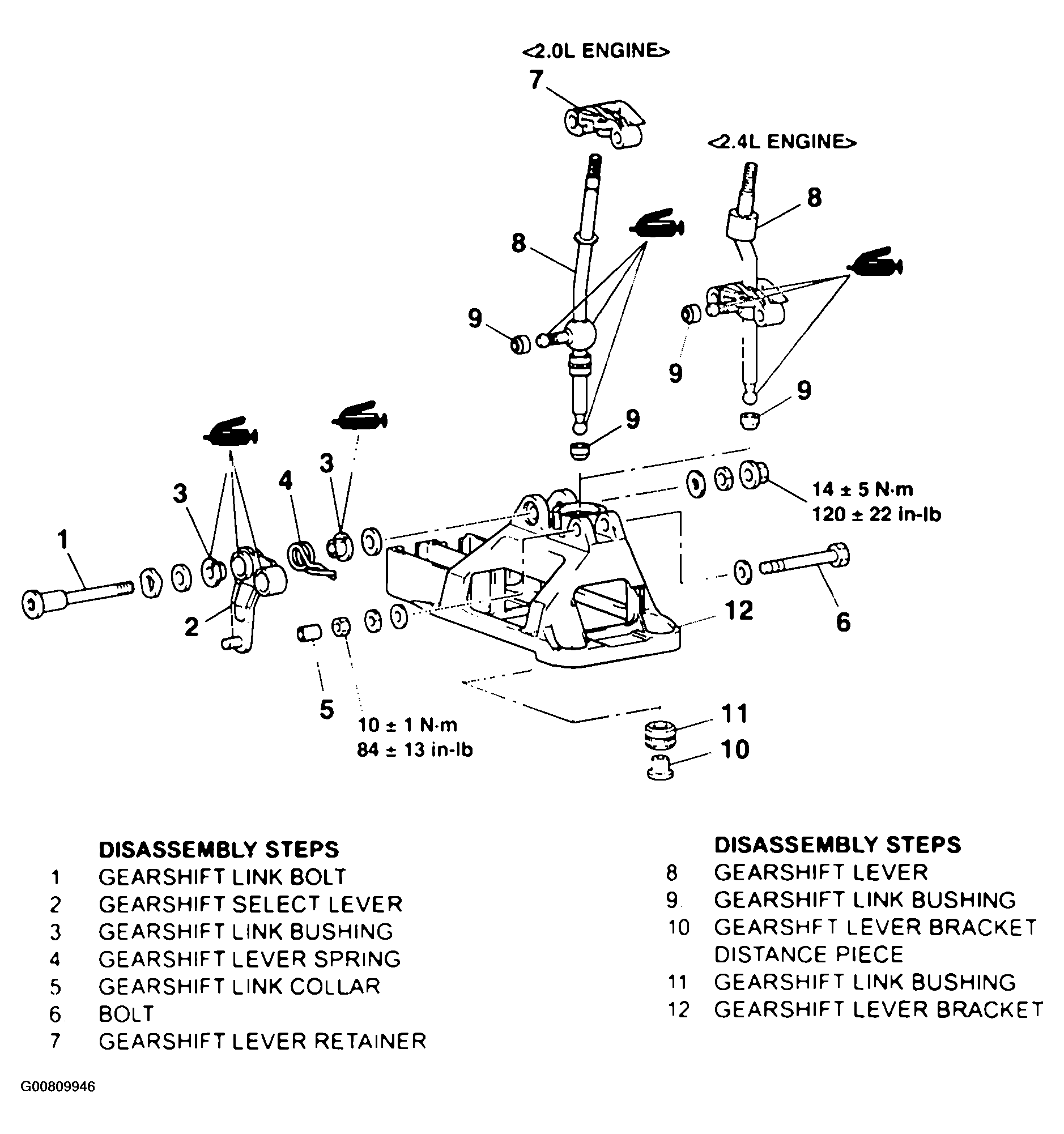

Fig 1: Identifying Shift Lever Assembly
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
