Firewall

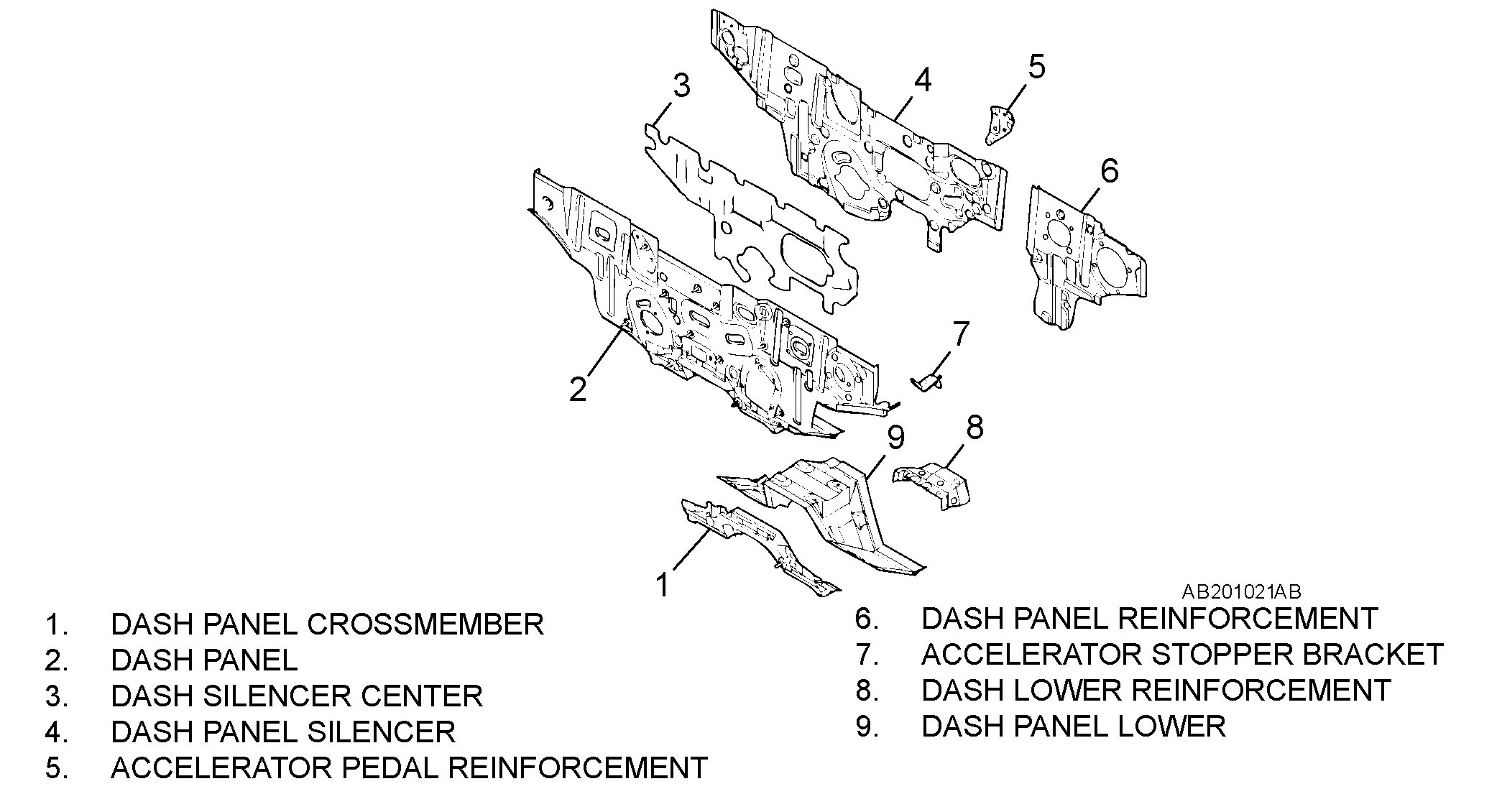

DASH PANEL




- A dash panel crossmember has been added and the thickness of the dash panel lower has been increased to improve collision stability.
- A silencer (steel sheet biding type vibration damping material) has been added between the dash panel and dash panel silencer to control the penetrating sound and vibration from the engine.
