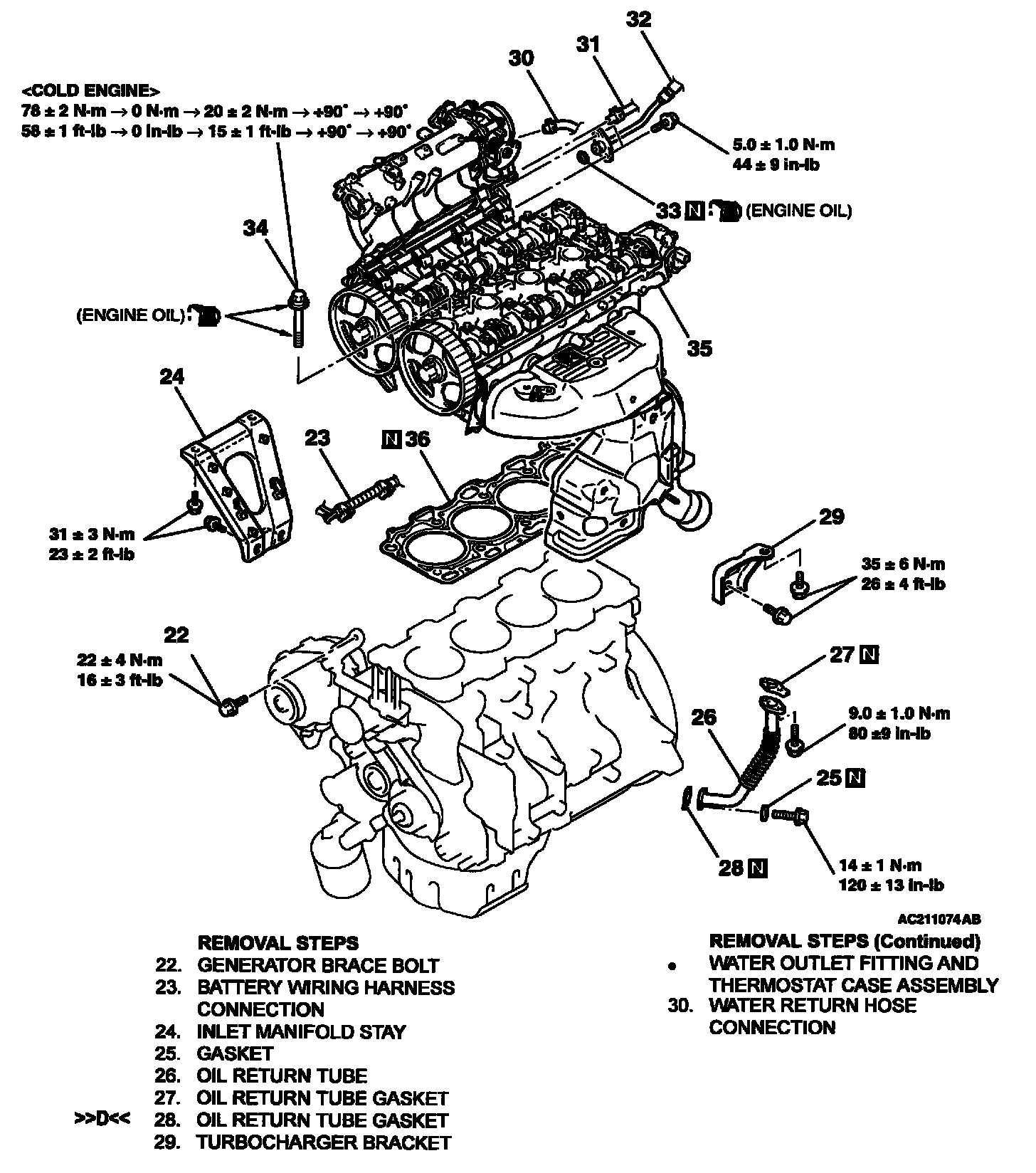

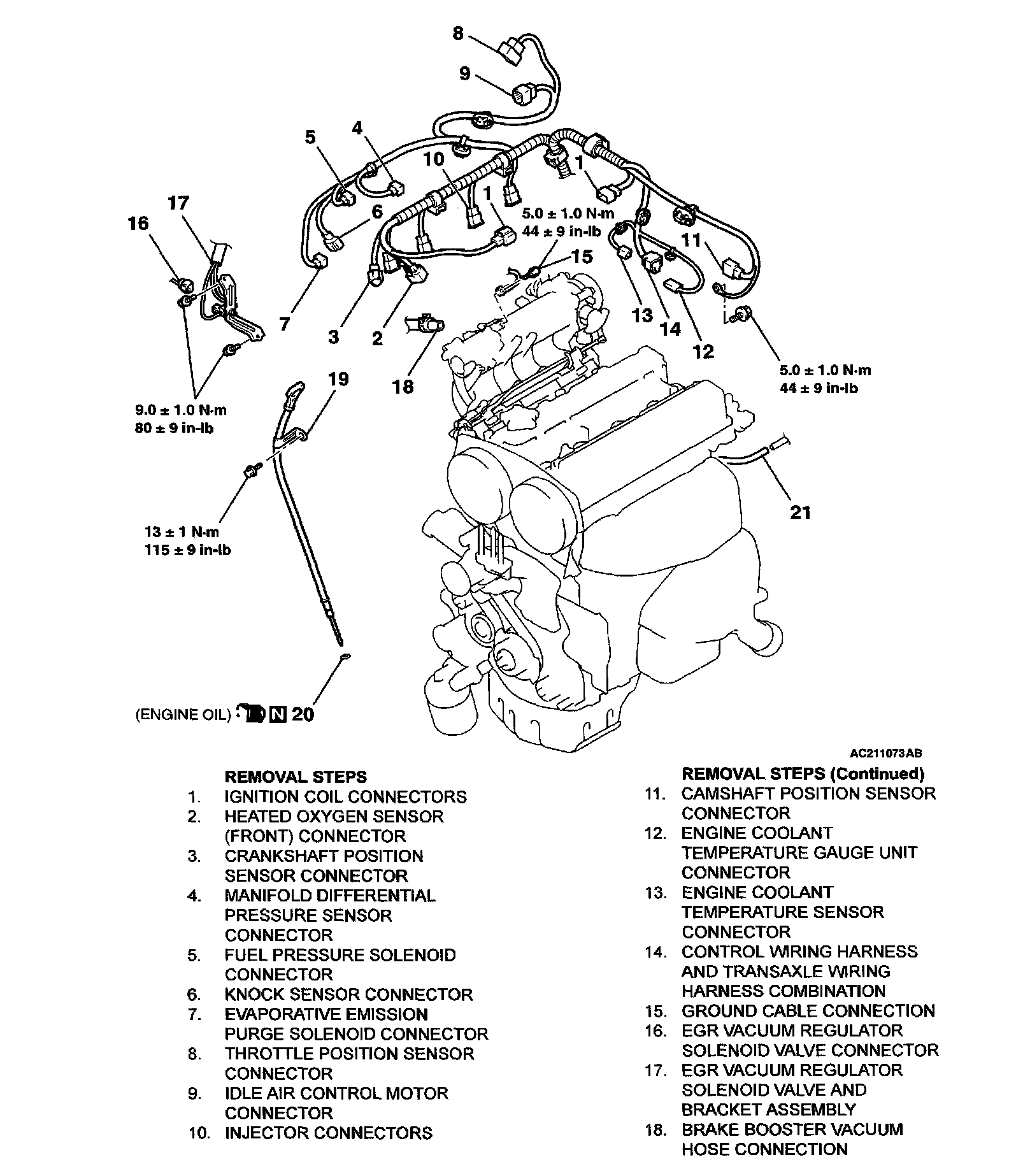

Cylinder Head Assembly

Part 1 Of 5:




Part 2 Of 5:




Part 3 Of 5:




Part 4 Of 5:




Part 5 Of 5:

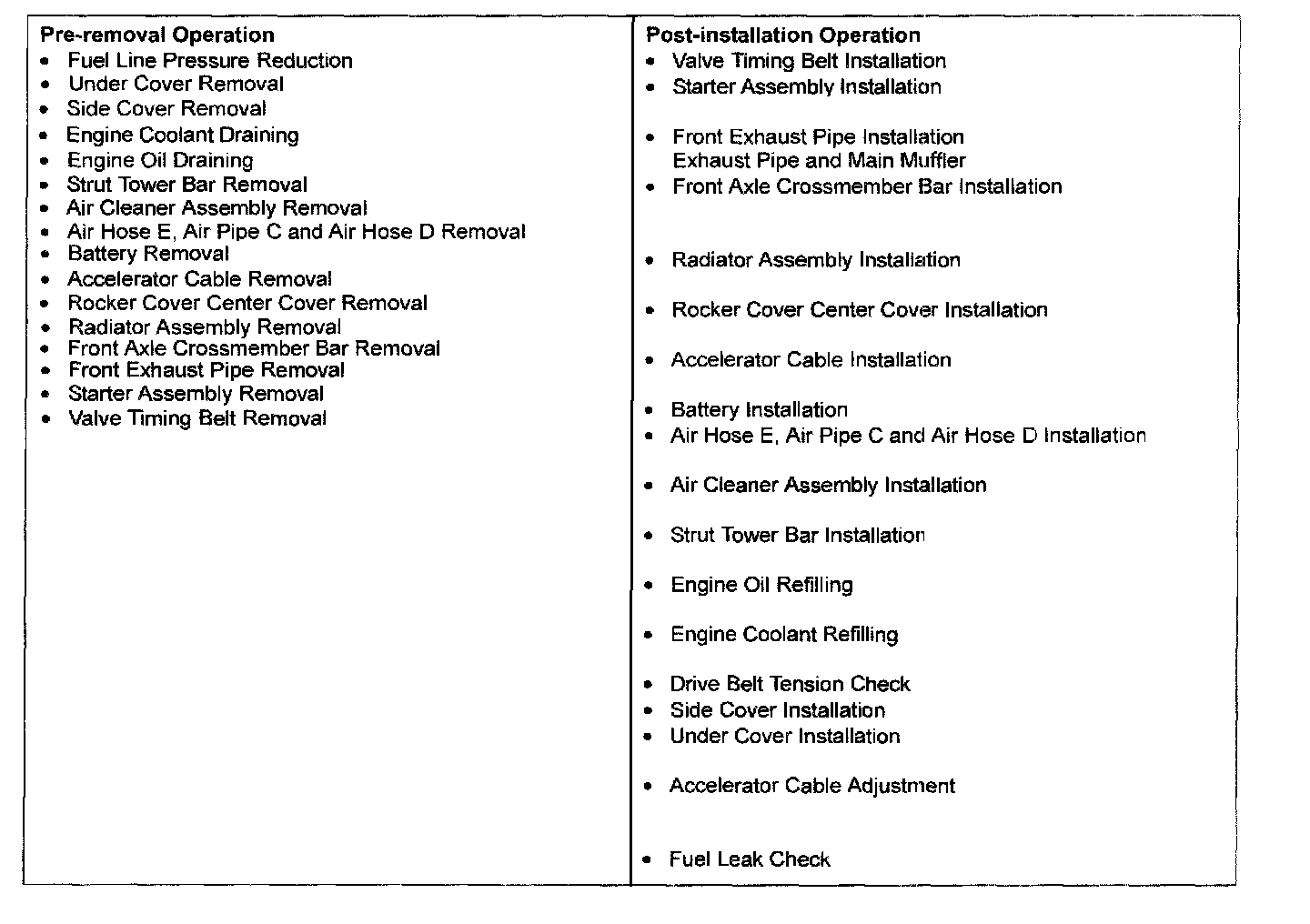

CYLINDER HEAD GASKET REPLACEMENT W/ RELATED COMPONENTS
