Compressor HVAC

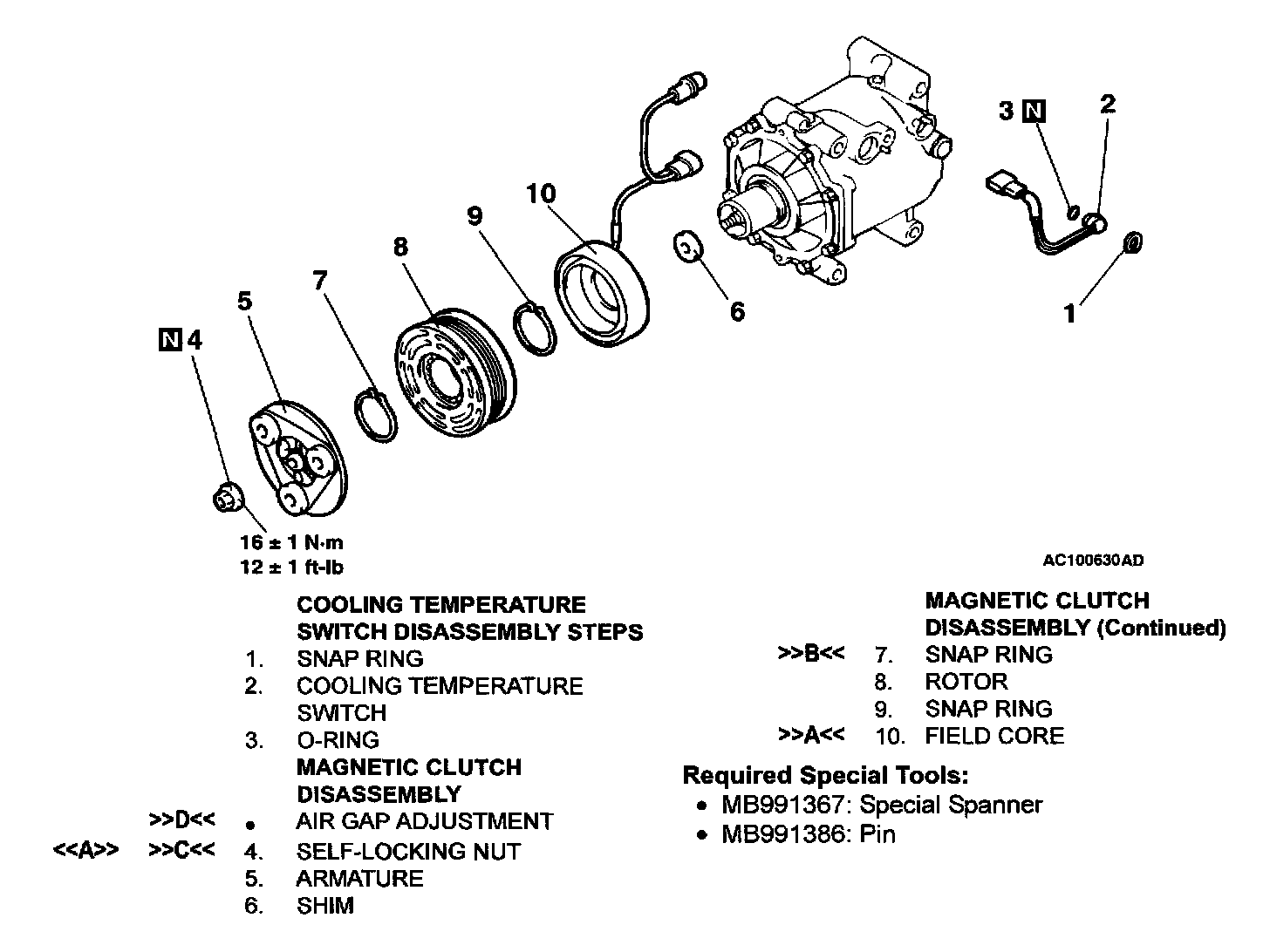

Magnetic Clutch:

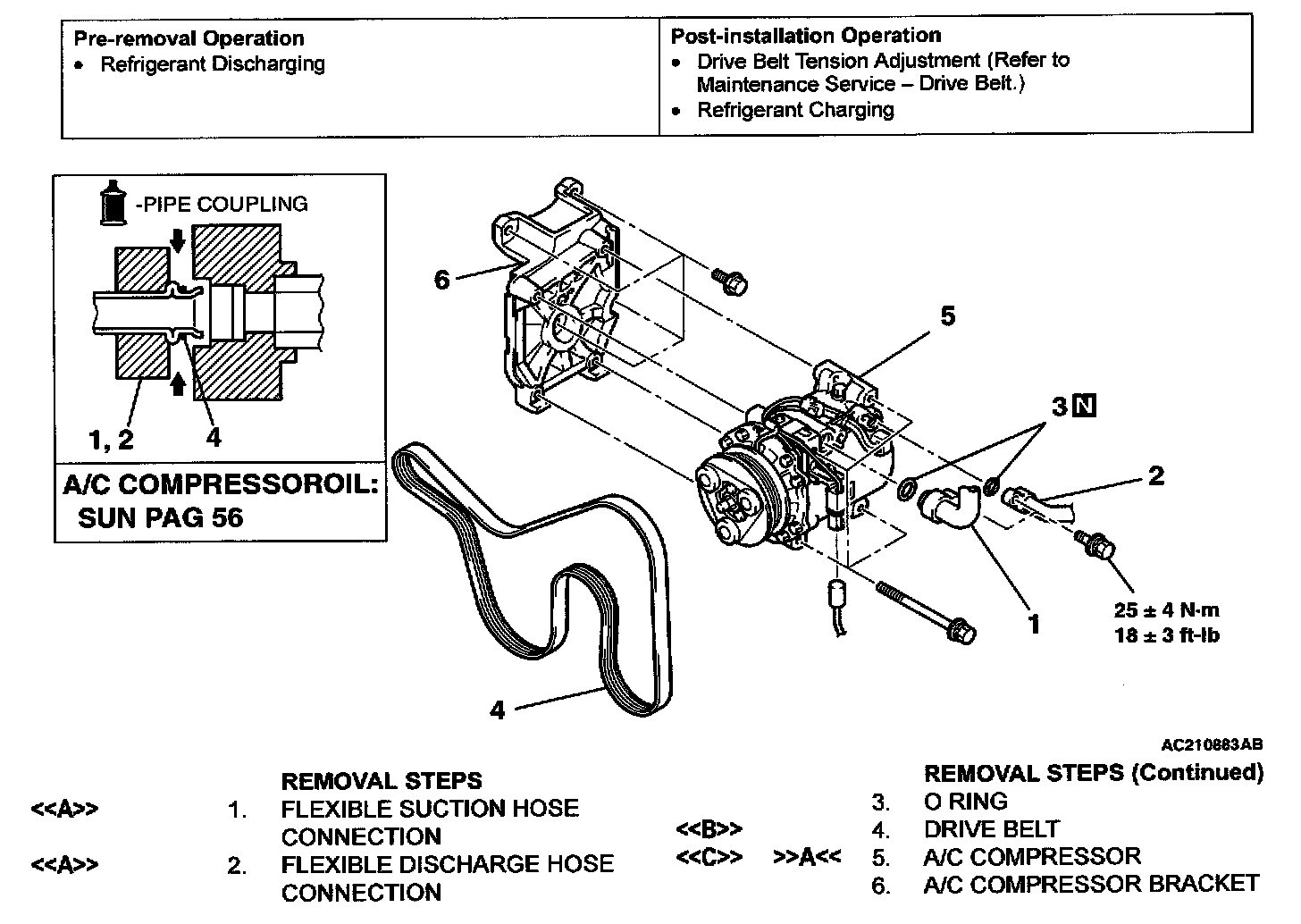

Compressor Assembly And Tension Pulley:






ITEM MANUAL AIR CONDITIONING
Compressor MSC90C (Scroll type)
