Power Window Relay Check

POWER WINDOW RELAY CHECK

BATTERY VOLTAGE	TESTER CONNECTION	SPECIFIED CONDITION
Not applied	4 - 5	Open circuit
Connect terminal No. 1 and the positive battery terminal. Connect terminal No. 3 and the negative battery terminal.	Less than 2 ohms

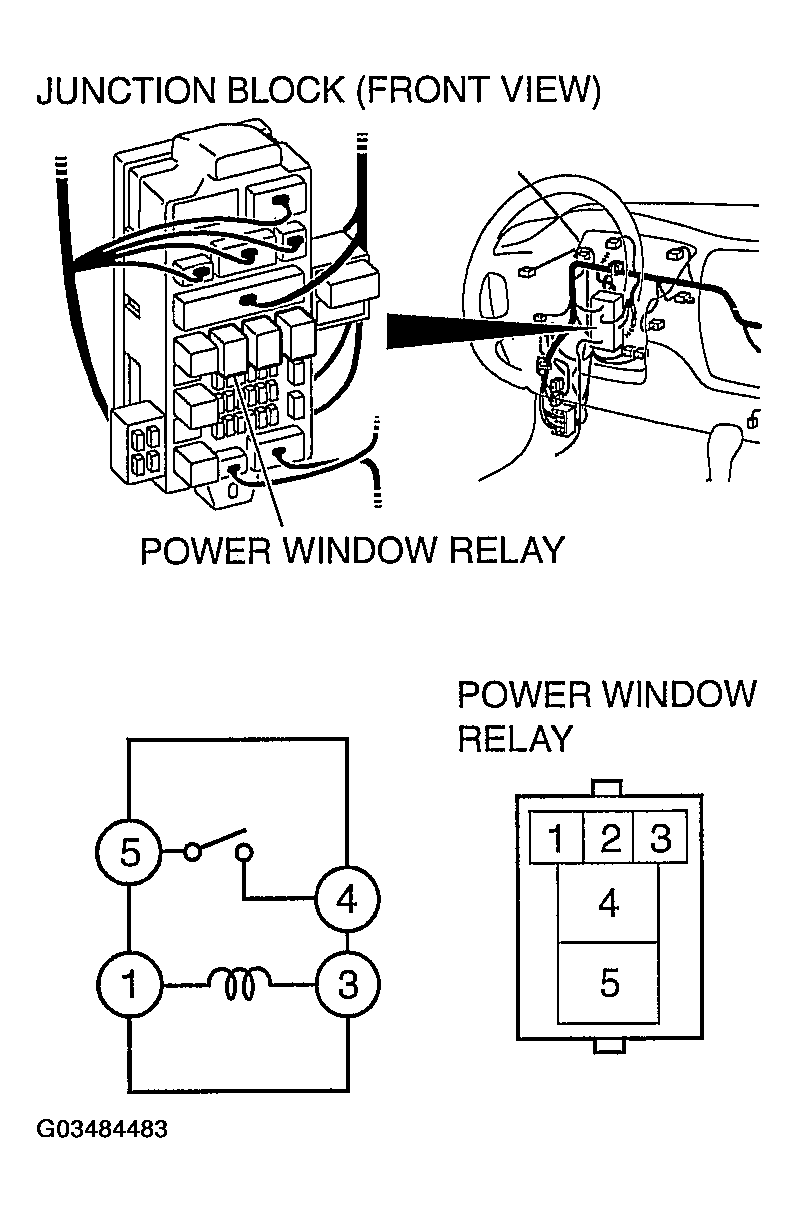

Fig 1: Checking Power Window Relay

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
