Removal And Installation: Notes

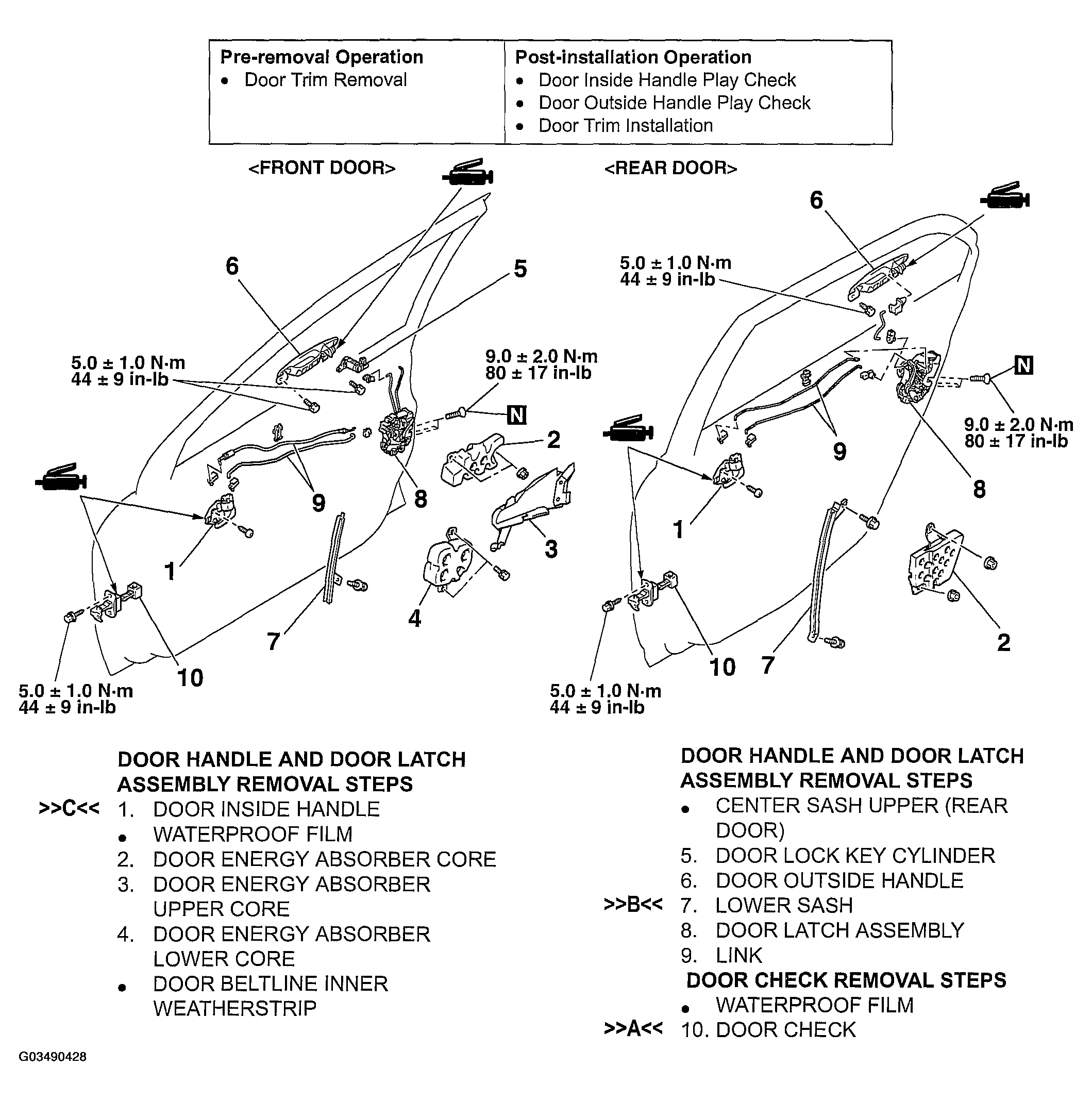

Fig 1: Exploded View Of Door Handle And Latch
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
