EGR Port Vacuum Check

  1. Disconnect the vacuum hose (yellow stripe) from the throttle body EGR vacuum nipple and connect a hand vacuum pump to the nipple.

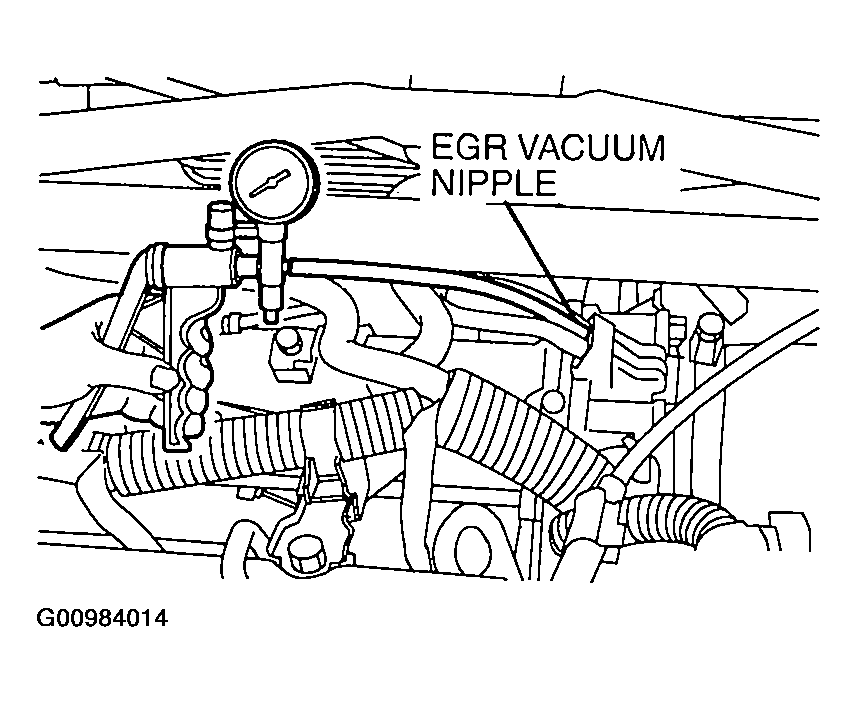

    Fig 1: Locating Throttle Body EGR Vacuum Nipple
    G00984014Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. Start the engine.
  3. Measure engine vacuum at idle.
    1. Standard value: 51 kPa (15 in Hg) or more
  4. Reset the vacuum pump to "0" (Release vacuum).
  5. Using a stop watch, measure how long it takes for the vacuum gauge to reach 51 kPa (15 in Hg).
    1. Standard value: 1.0 second or less
  6. If it takes more than 1.0 second for the gauge to reach 51 kPa (15 in Hg), the EGR may be restricted and should be cleaned.
