Removal And Installation: Notes

WARNING: This page is about a different car, the 2004 Mitsubishi Eclipse. However, it is still accessible from the selected car via links, so may be relevant.

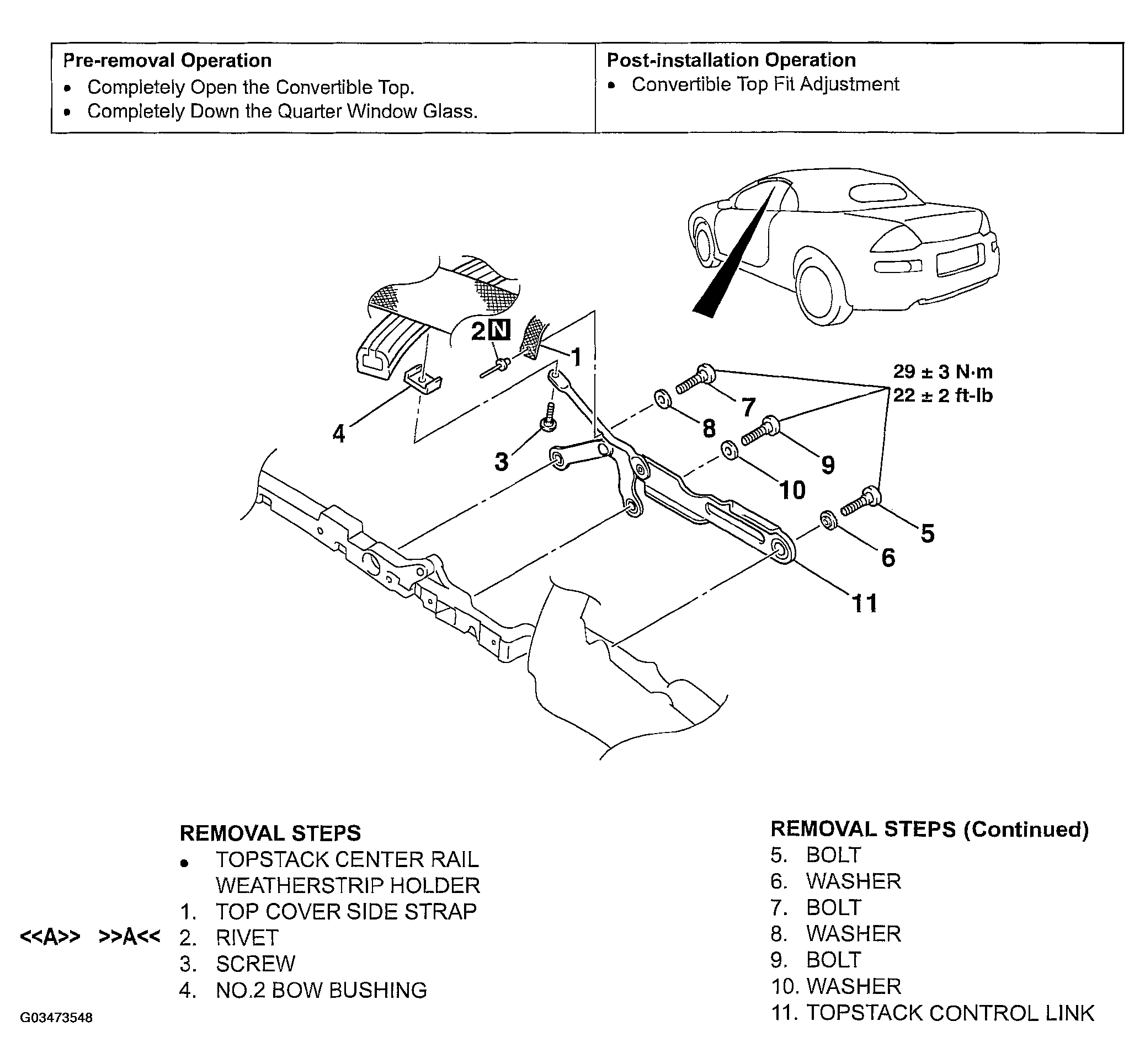

Fig 1: Removing And Installing Topstack Control Link Assembly
G03473548Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
