Transmitter "Trunk" Input Signal

WARNING: This page is about a different car, the 2004 Mitsubishi Galant. However, it is still accessible from the selected car via links, so may be relevant.

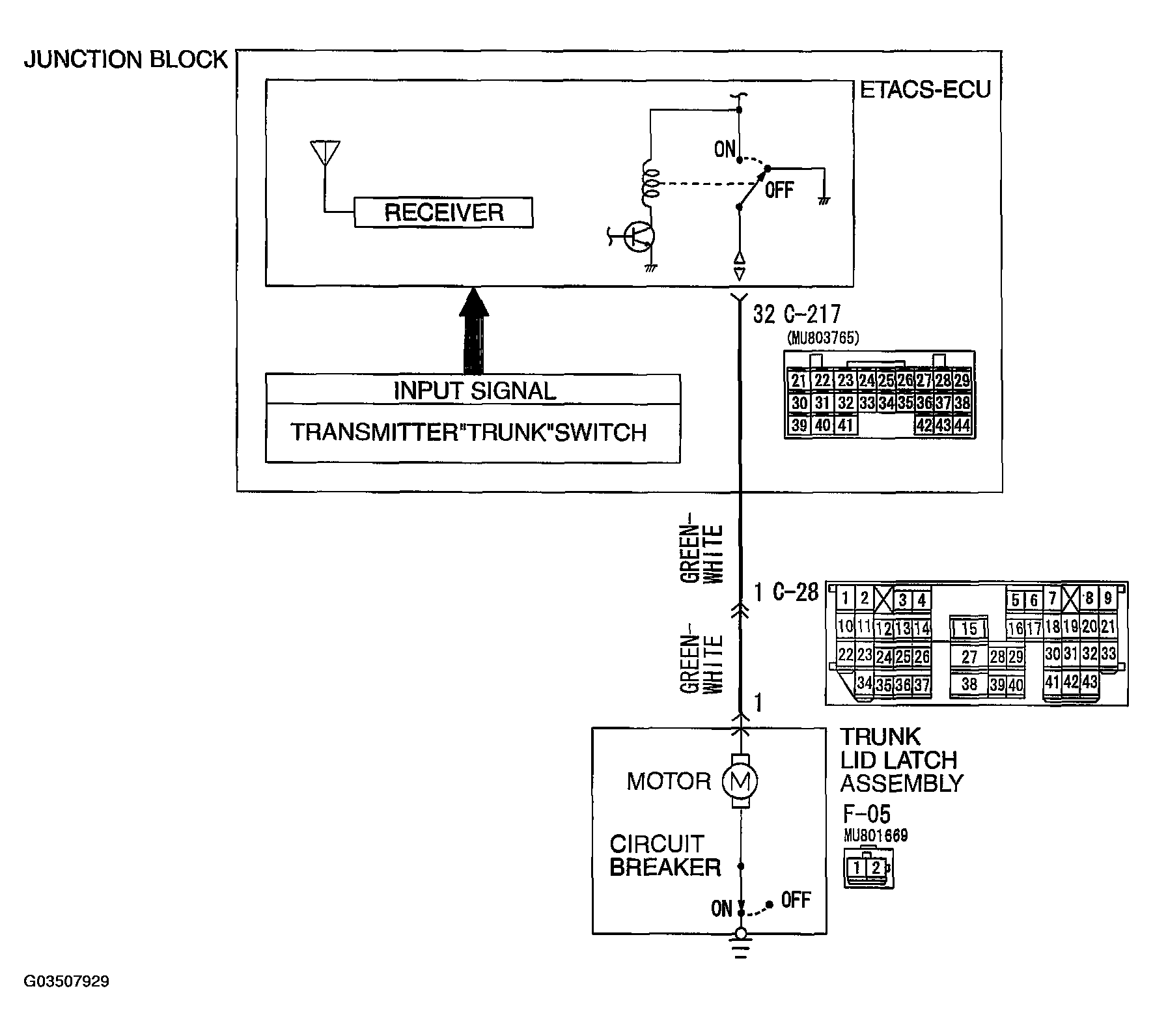

Fig 1: View Of Transmitter "Trunk" Input Signal Circuit Diagram
G03507929Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

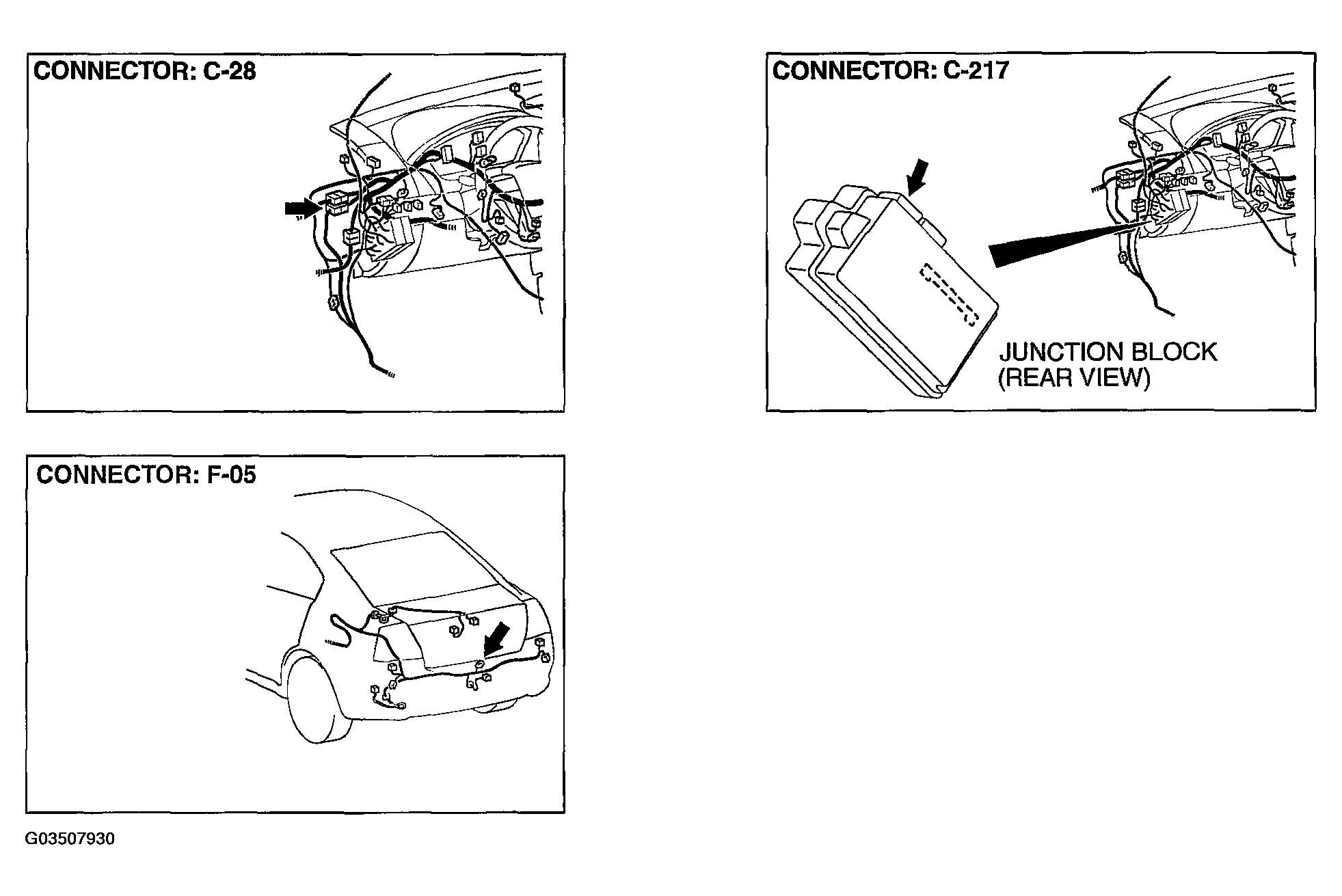

Fig 2: Identifying Connector Terminals
G03507930Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
