Data List Reference Table

WARNING: This page is about a different car, the 2004 Mitsubishi Galant. However, it is still accessible from the selected car via links, so may be relevant.

The following items can be read by the scan tool from the ABS/TCL-ECU input data.

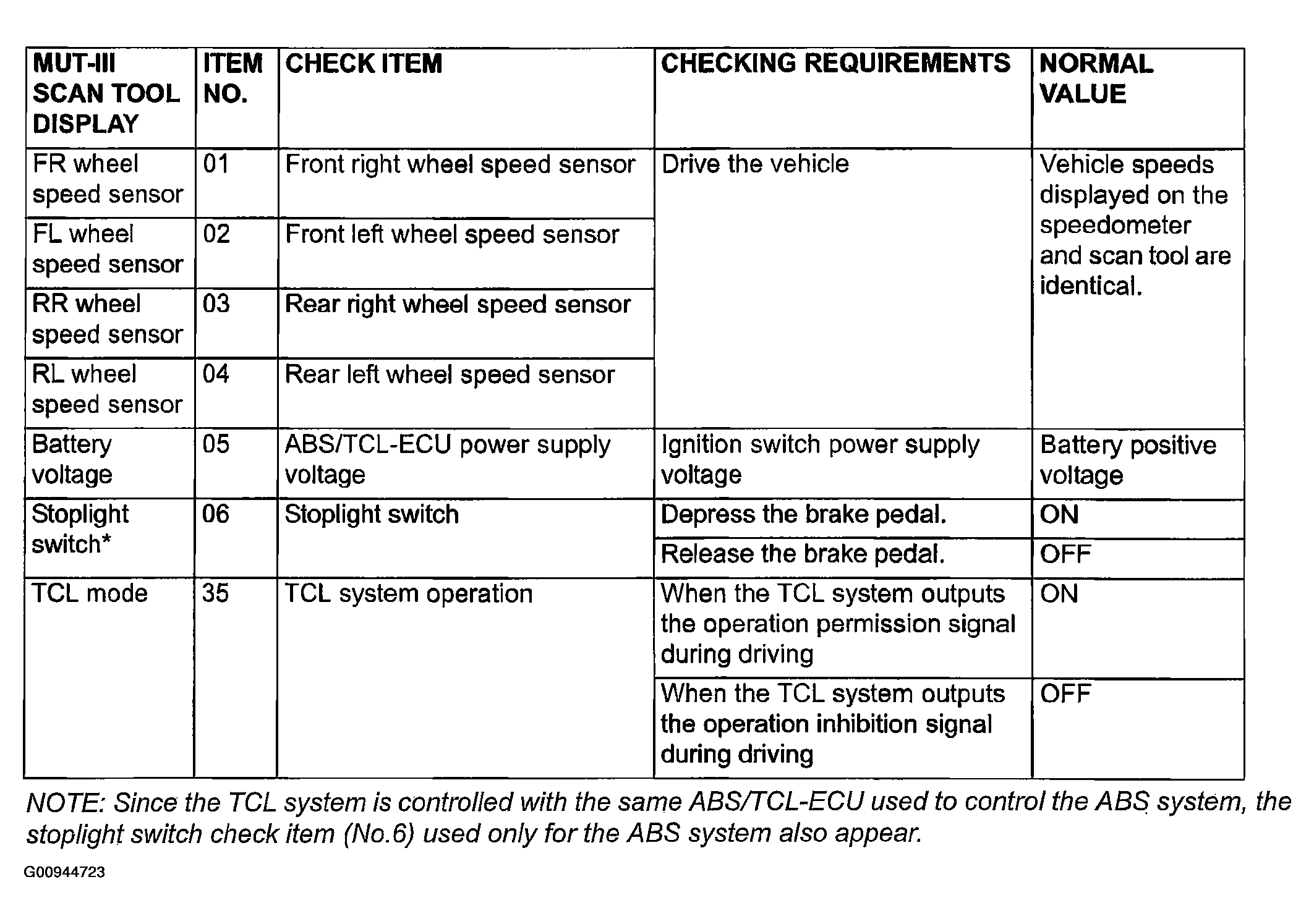

Fig 1: Data List Reference Table

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

NOTE: Since the TCL system is controlled with the same ABS/TCL-ECU used to control the ABS system, the stoplight switch check item (No. 6) used only for the ABS system also appear.
