Downshift Pattern

WARNING: This page is about a different variant/trim than selected.

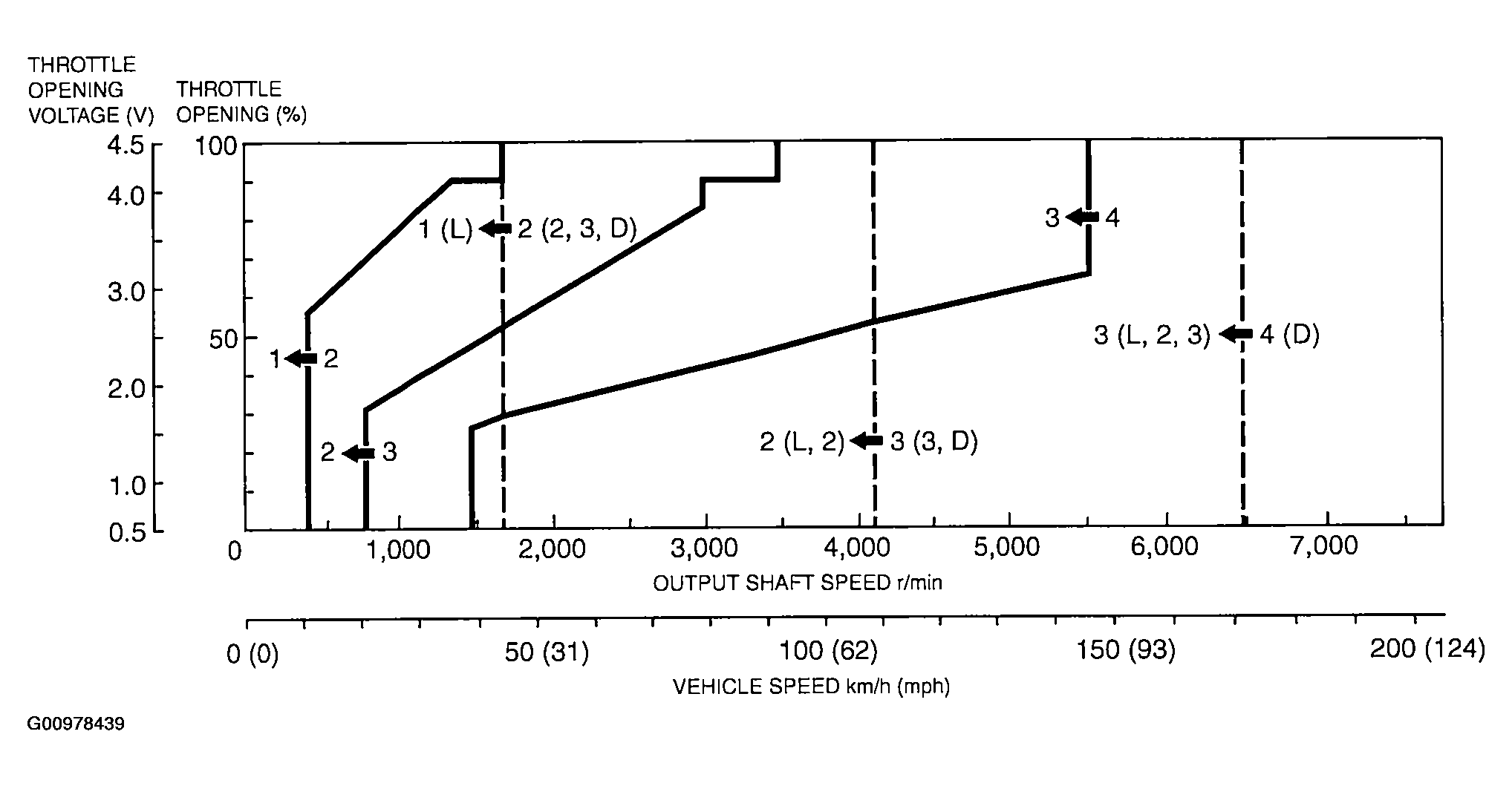

Fig 1: Downshift Pattern Graph
G00978439Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
