Valve Body Spring Identification Table

WARNING: This page is about a different variant/trim than selected.

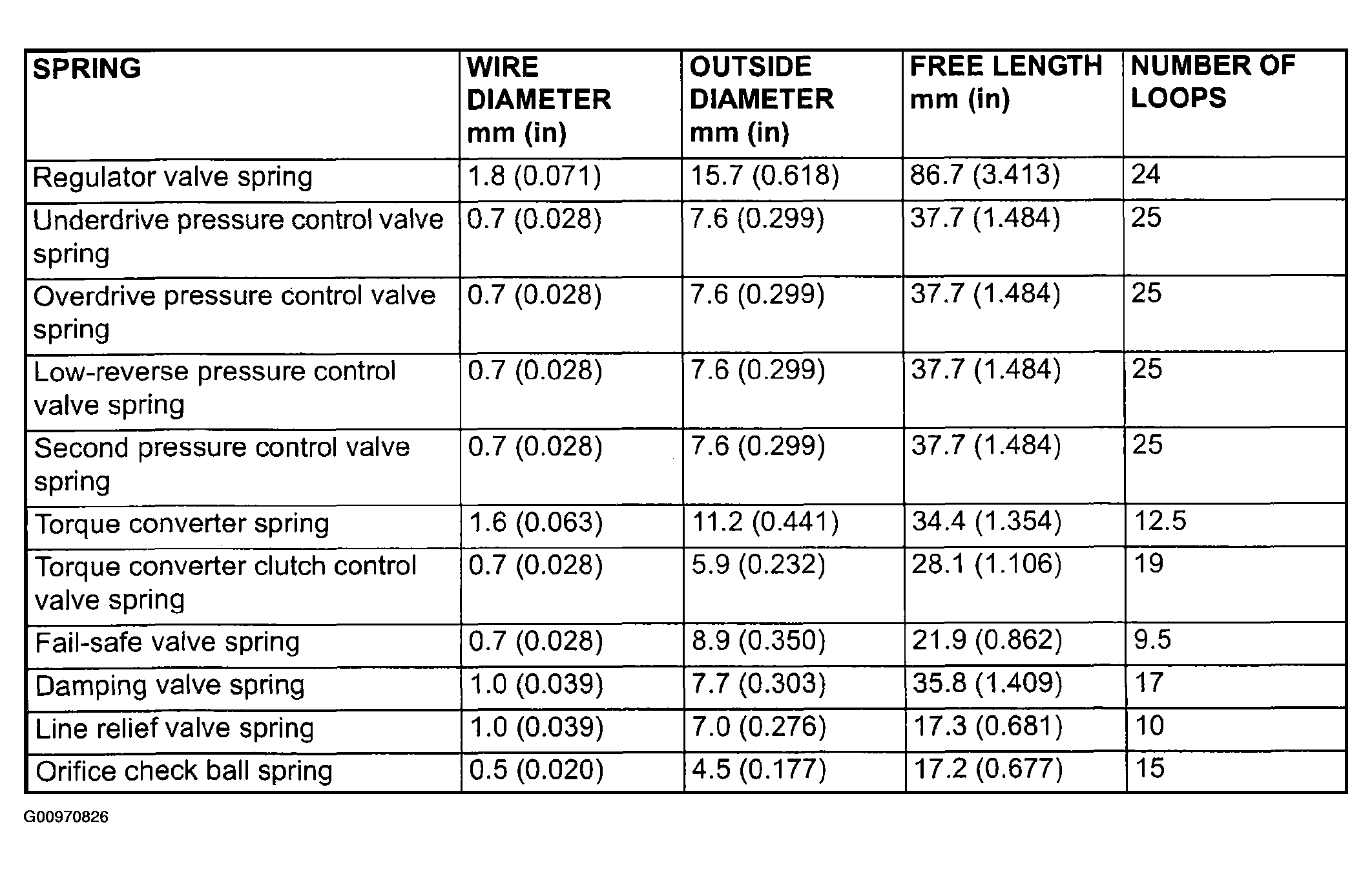

Fig 1: Valve Body Spring Identification Table
G00970826Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
