Disassembly And Assembly: Notes

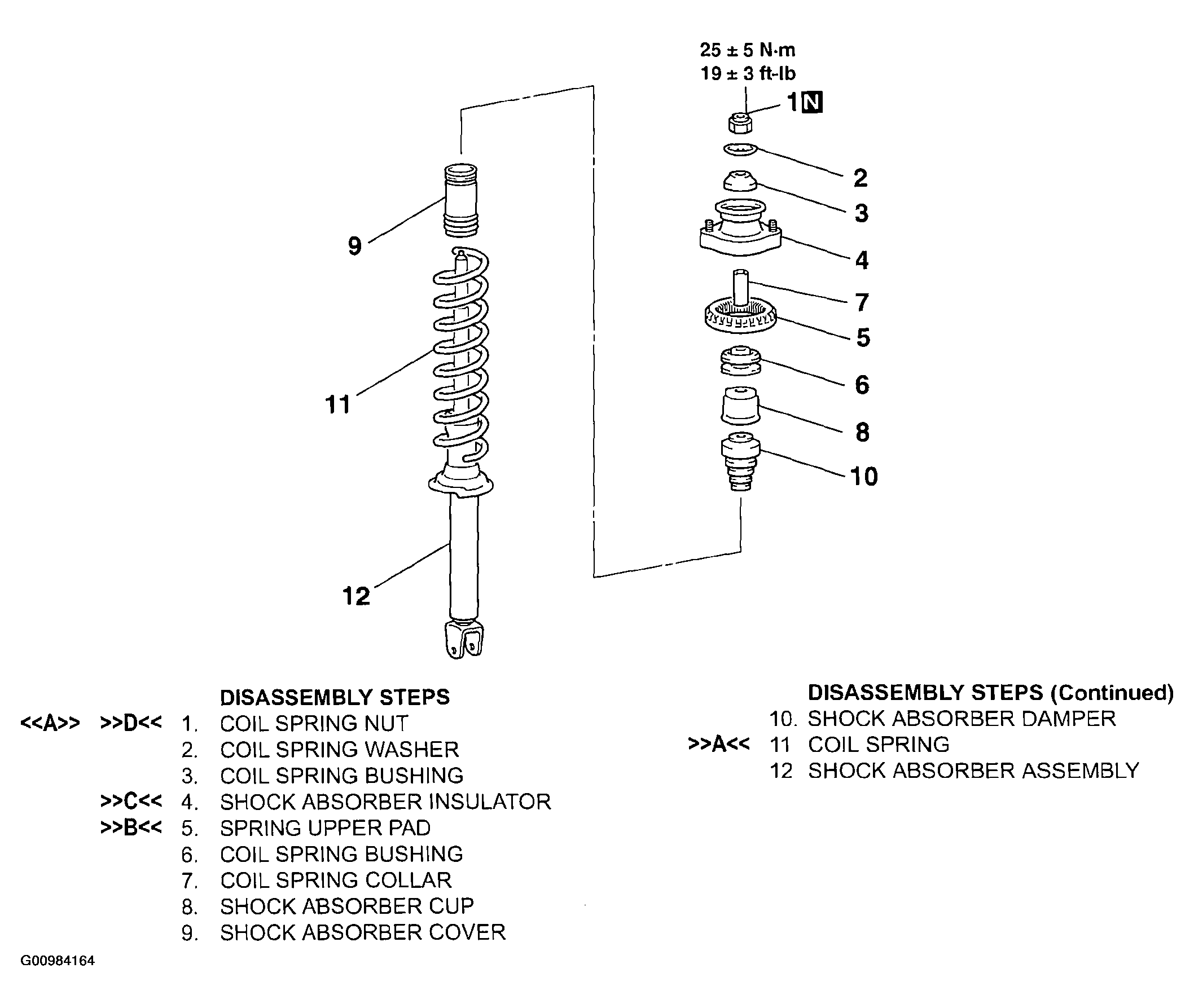

Fig 1: Disassembling Shock Absorber Assembly
G00984164Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
