Combination Meter Internal Resistance Check

Use circuit tester to measure combination meter internal resistance.

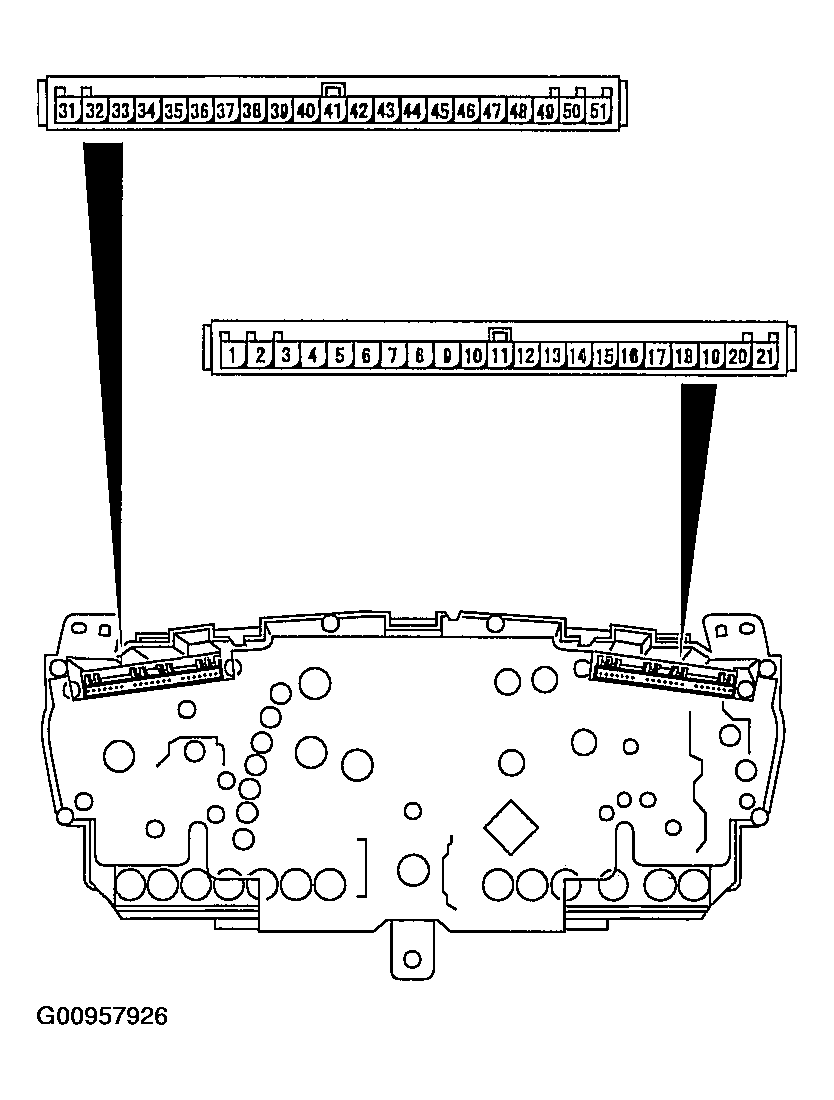

Fig 1: Identifying Combination Meter Internal Terminals
G00957926Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 2: Combination Meter Internal Resistance Specification Table
G00957925Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
