Starter Relay Check
For starter relay location see
Fig 1
.

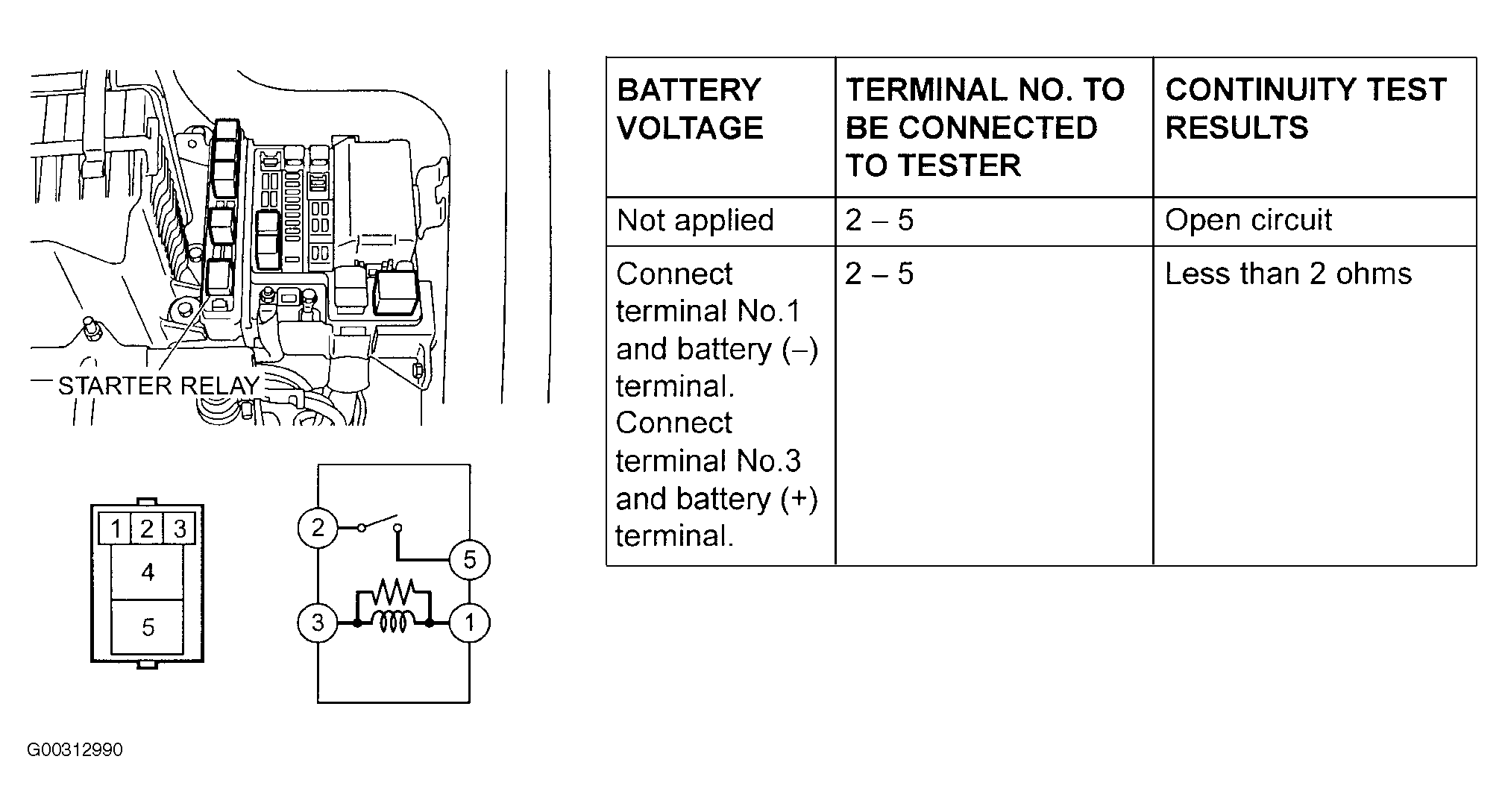

Fig 1: Testing Starter Relay
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
