Fan Control Relay Continuity Check

WARNING: This page is about a different variant/trim than selected.

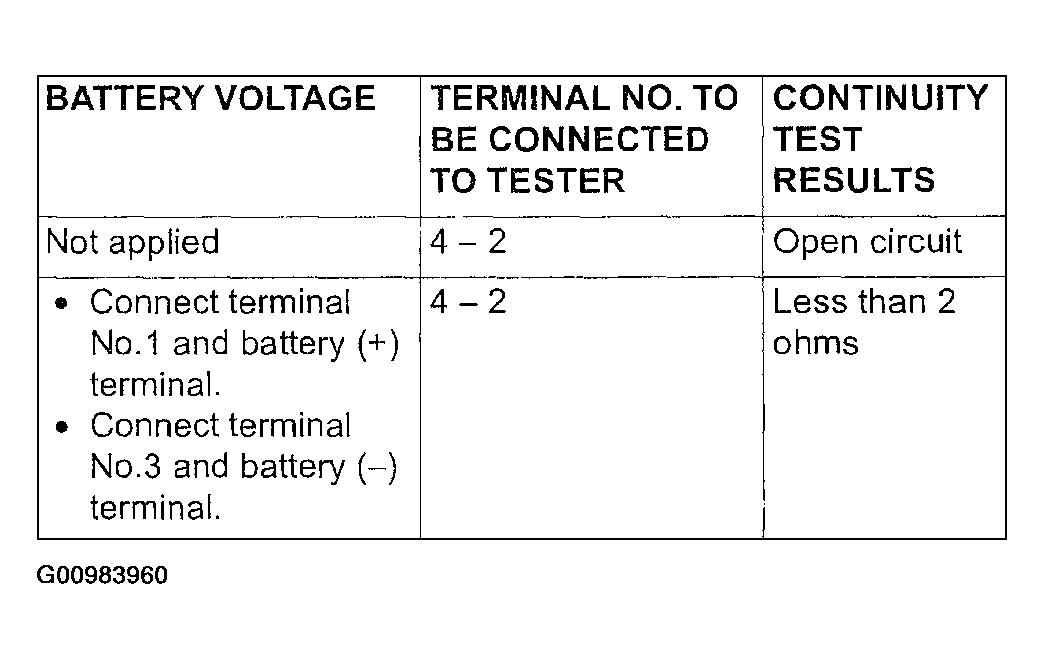

Fig 1: Identifying Fan Control Relay Continuity
G00983960Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

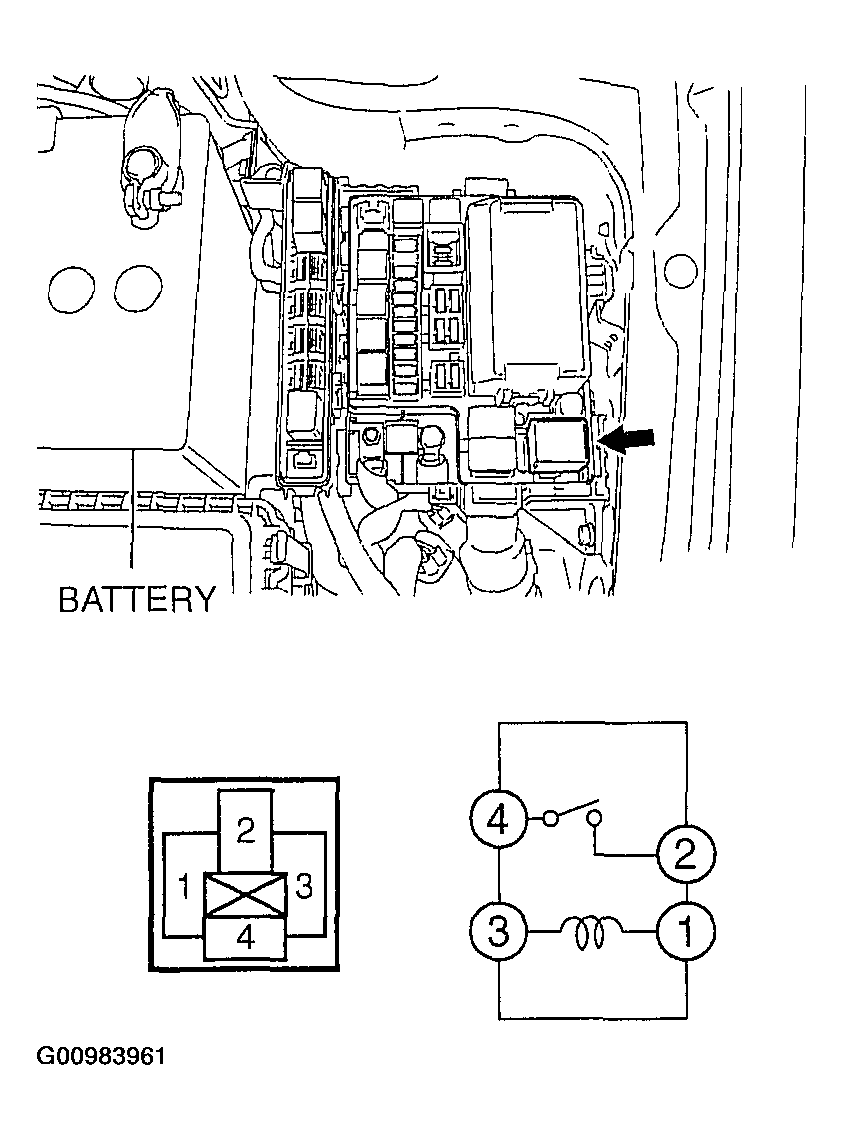

Fig 2: Identifying Fan Control Relay
G00983961Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
