Removal And Installation: Notes

WARNING: This page is about a different variant/trim than selected.

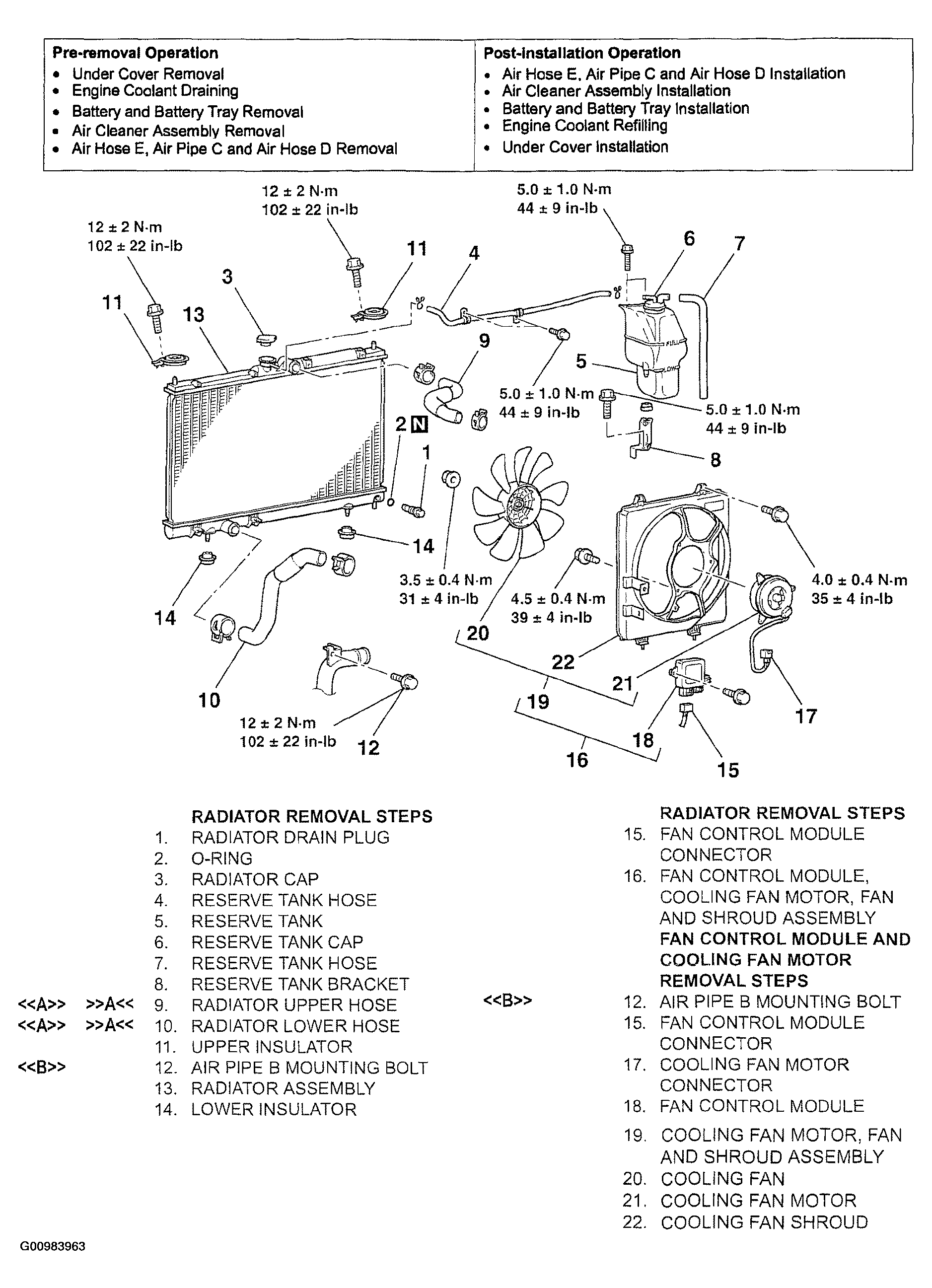

Fig 1: Removing Radiator
G00983963Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
