Special Tools

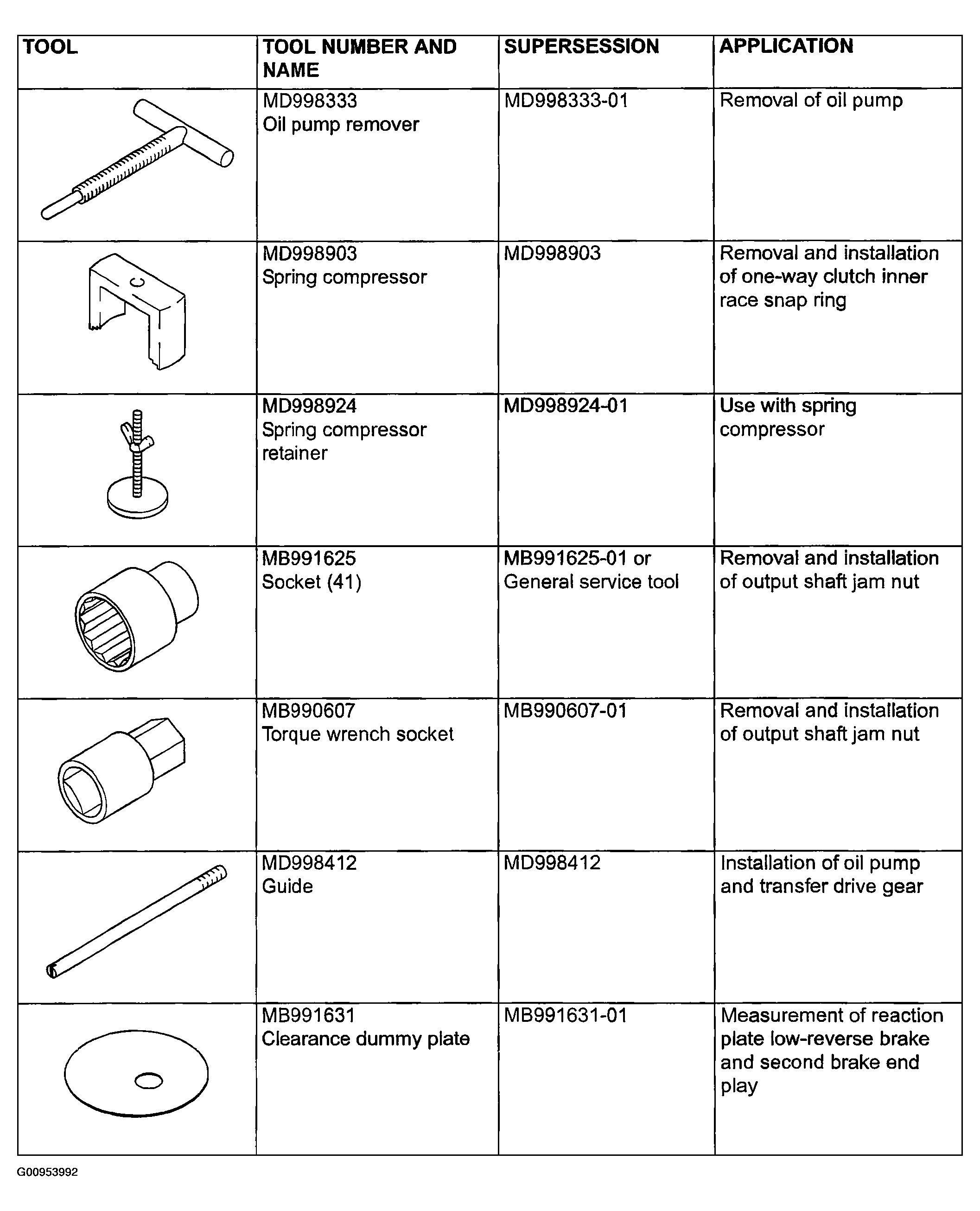

Fig 1: Special Tools Specifications (1 Of 4)
G00953992Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

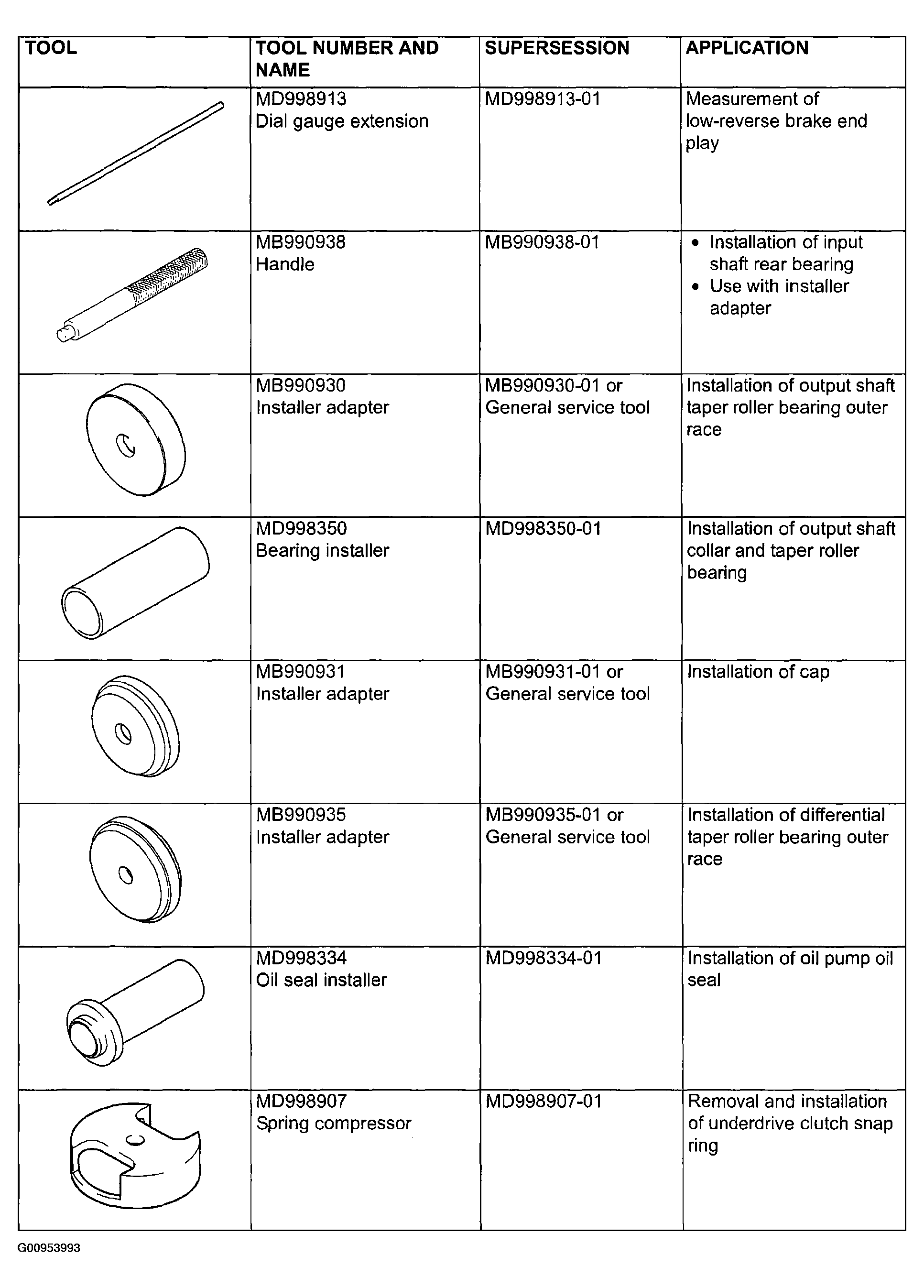

Fig 2: Special Tools Specifications (2 Of 4)
G00953993Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

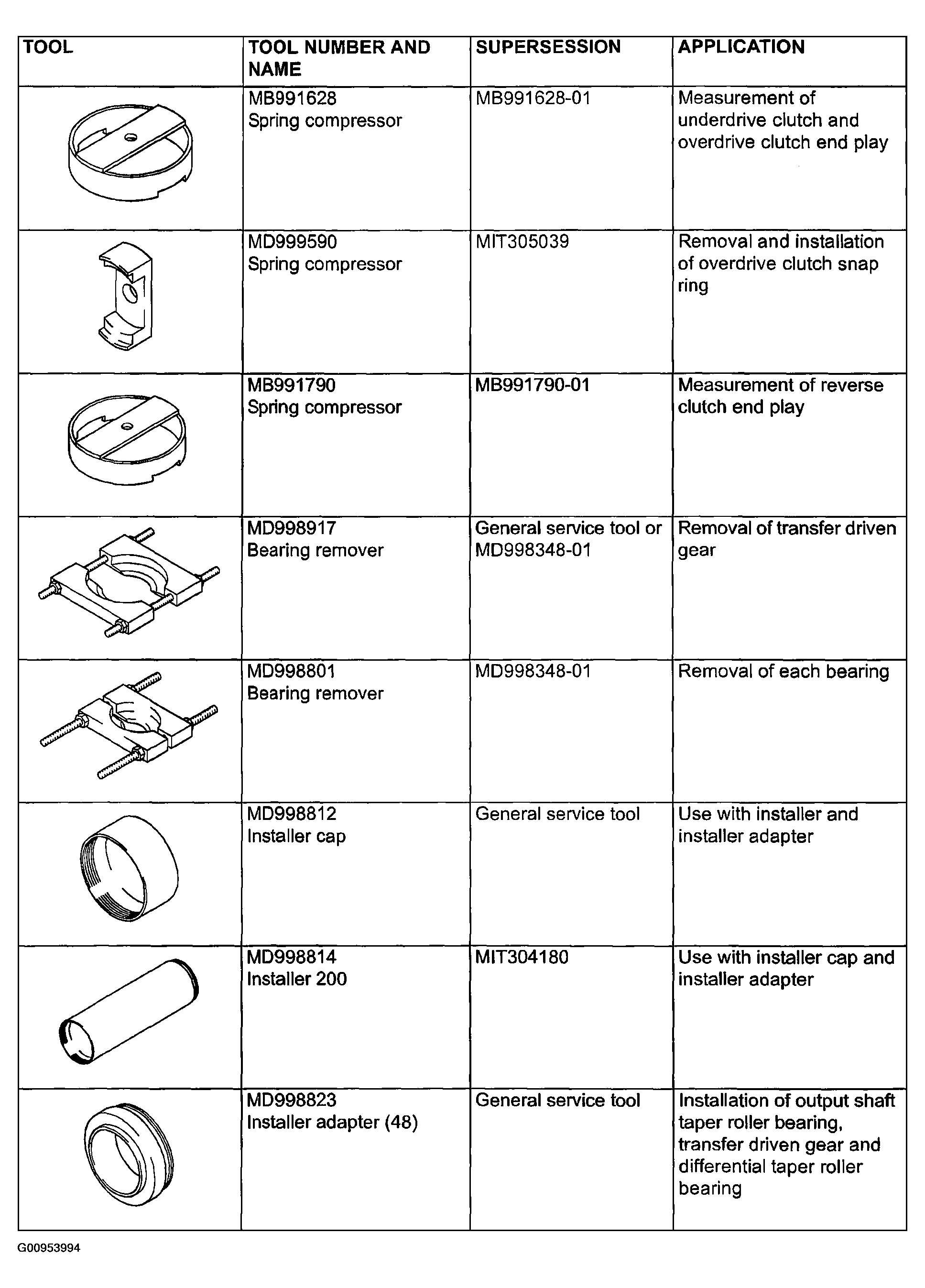

Fig 3: Special Tools Specifications (3 Of 4)
G00953994Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

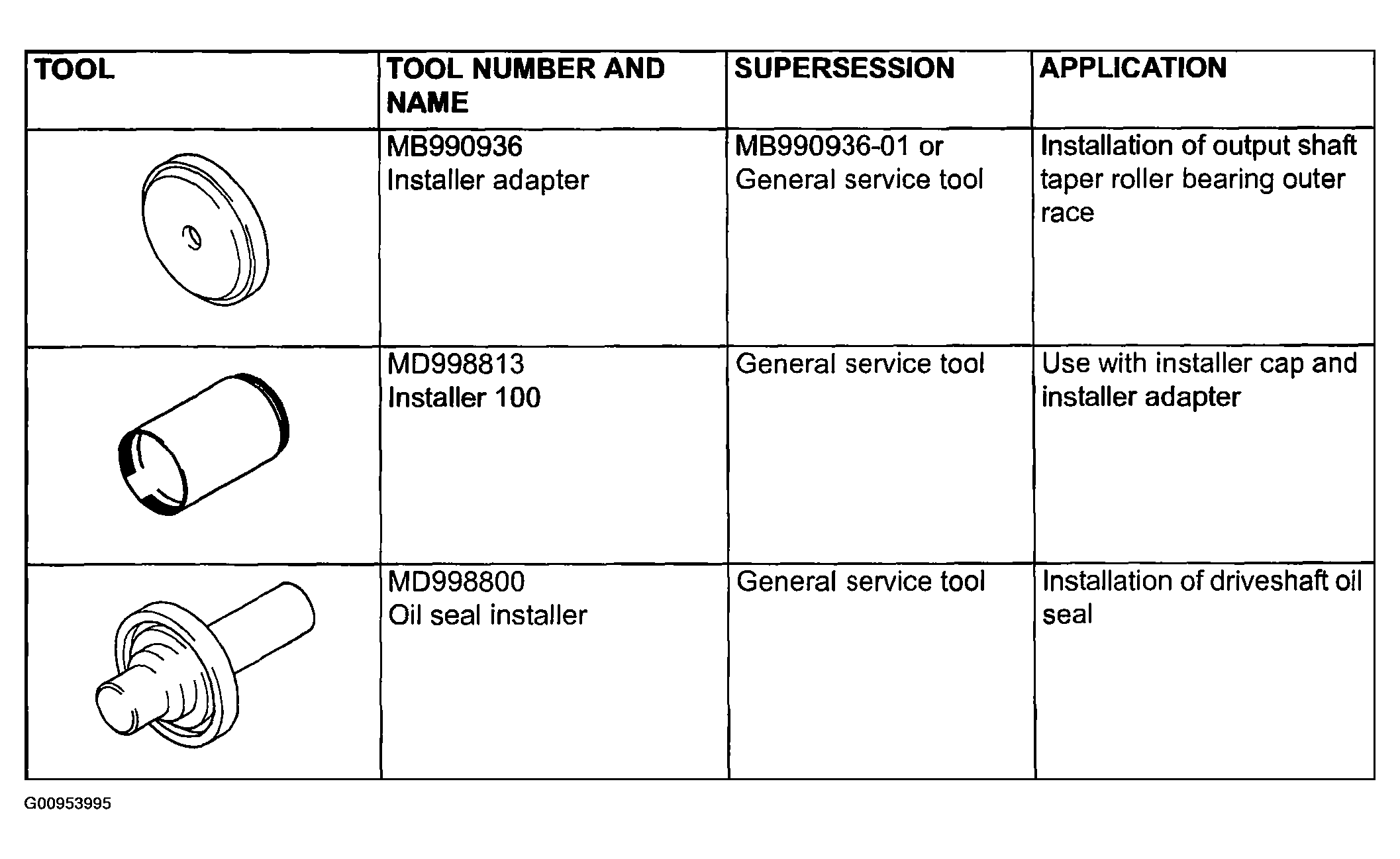

Fig 4: Special Tools Specifications (4 Of 4)
G00953995Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
