Disassembly and Assembly

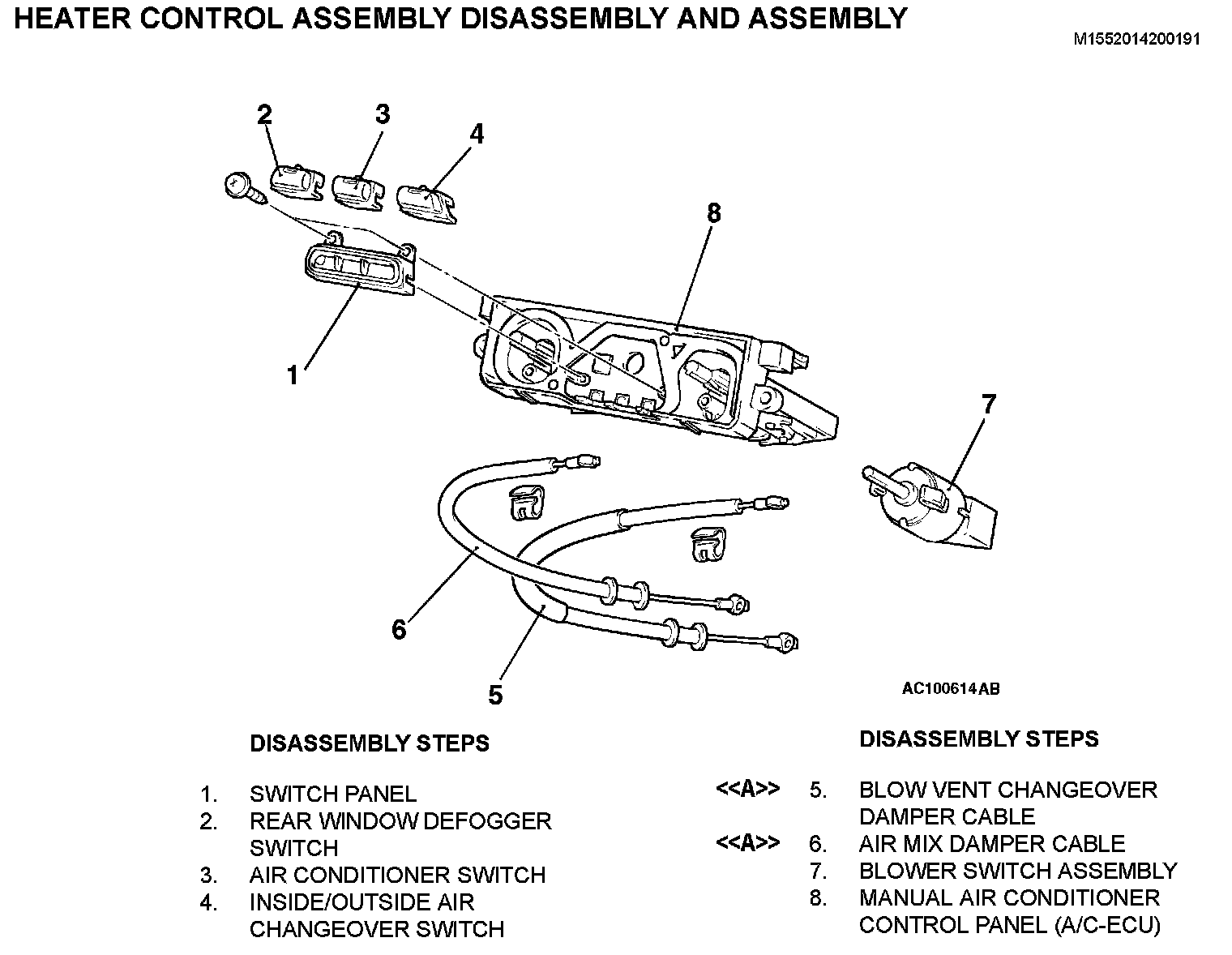

HEATER CONTROL ASSEMBLY DISASSEMBLY AND ASSEMBLY
DISASSEMBLY SERVICE POINT
<> BLOW VENT CHANGEOVER DAMPER CABLE AND AIR MIX DAMPER CABLE REMOVAL
Insert a flat-tipped screwdriver into the clip through the inside of the control base and prize out the clip claw to disconnect the cables.
