How To Read Data List
Required Special Tool:
- MB991958: Scan tool (MUT-III sub assembly)
- MB991824: V.C.I.
- MB991827: MUT-III USB cable
- MB991911: MUT-III main harness B
CAUTION:
To prevent damage to scan tool MB991958, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991958.

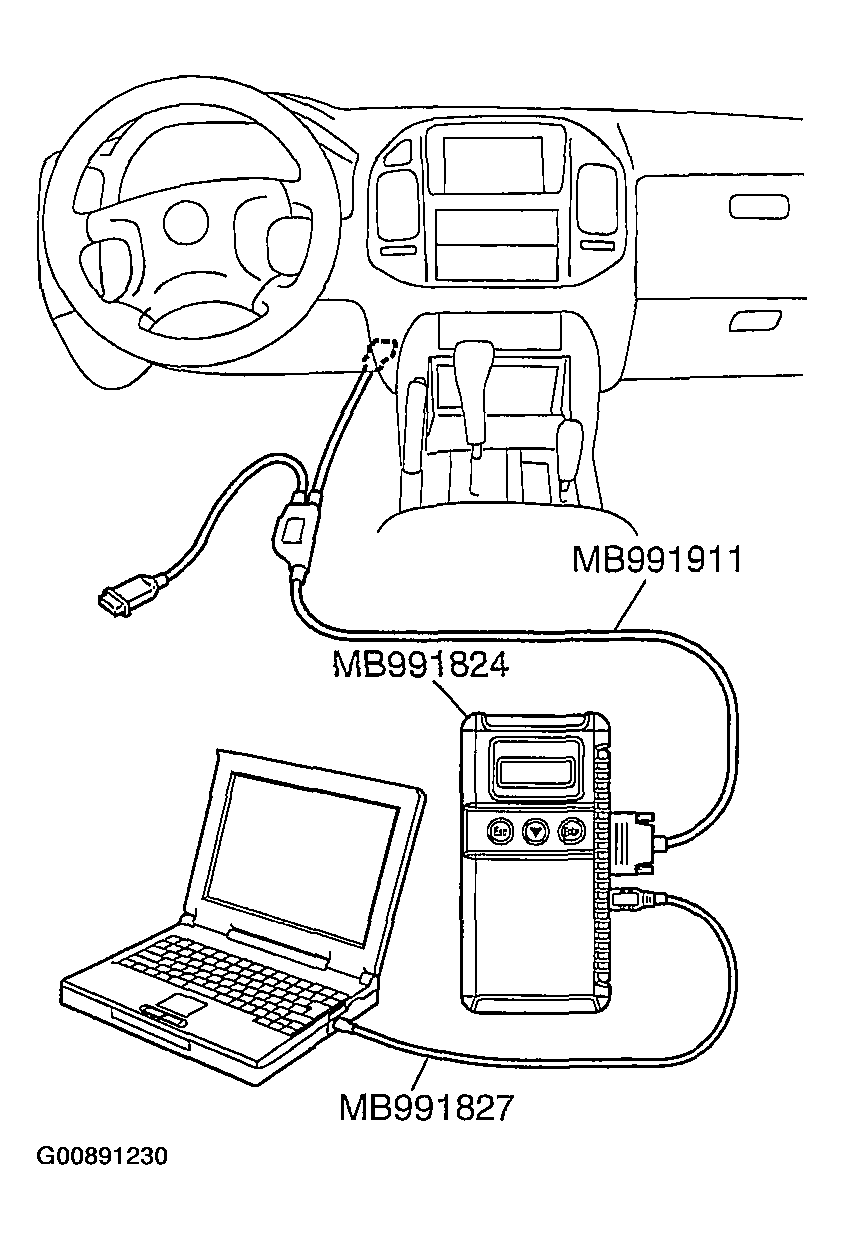

- Connect scan tool MB991958 to the data link connector.
- Turn the ignition switch to the "ON" position.
- Select "Interactive Diagnosis" from the start-up screen.
- Select "System Select."
- Choose "AUTO-CRUISE" from the "POWERTRAIN" tab.
- Select "Data List."
- Choose an appropriate item.
- Turn the ignition switch to the "LOCK" (OFF) position.
- Disconnect scan tool MB991958.
