DTC 15: Auto-cruise Control Switch System: Notes

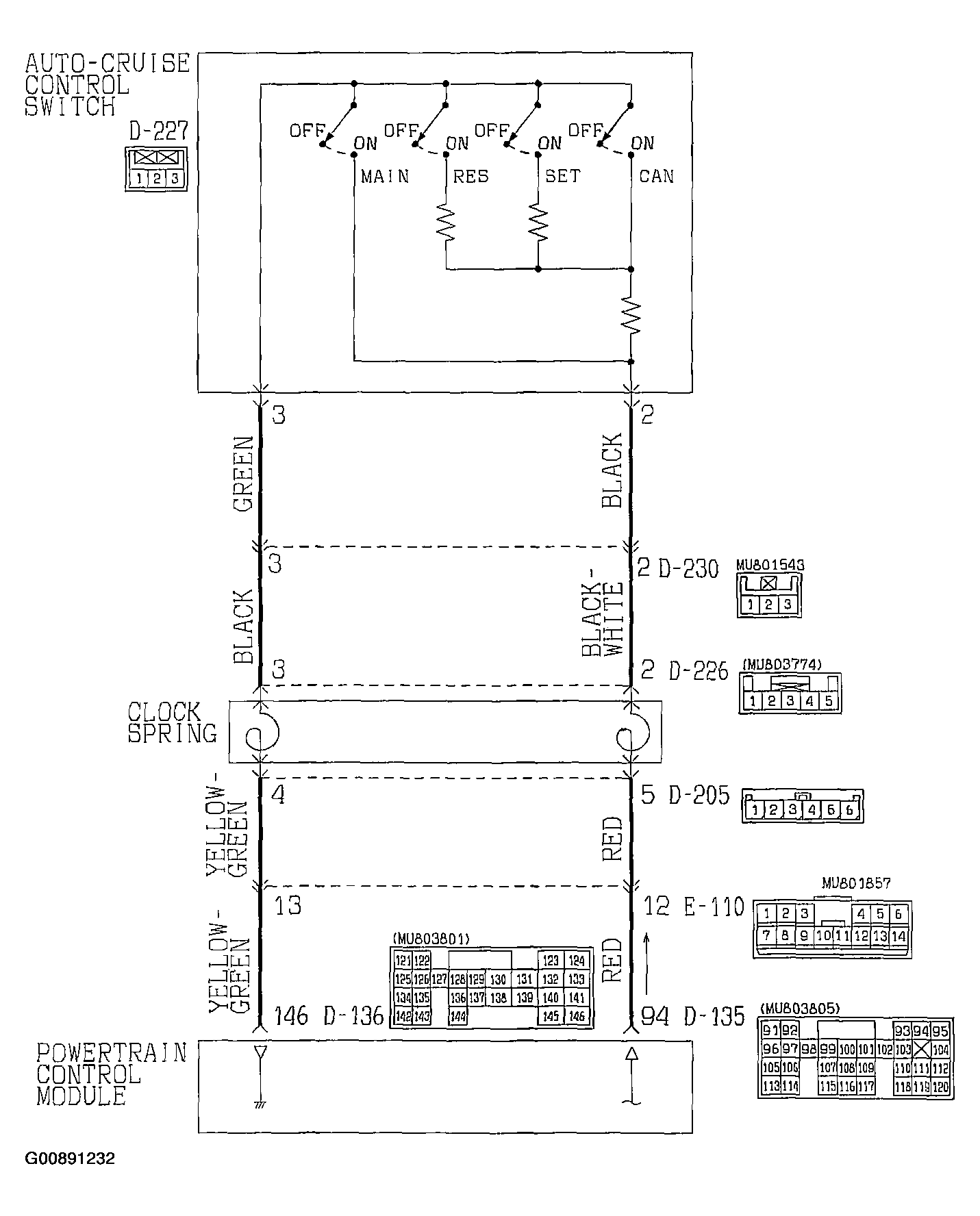

Fig 1: Circuit Auto-Cruise Control Switch System Circuit Diagram
G00891232Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

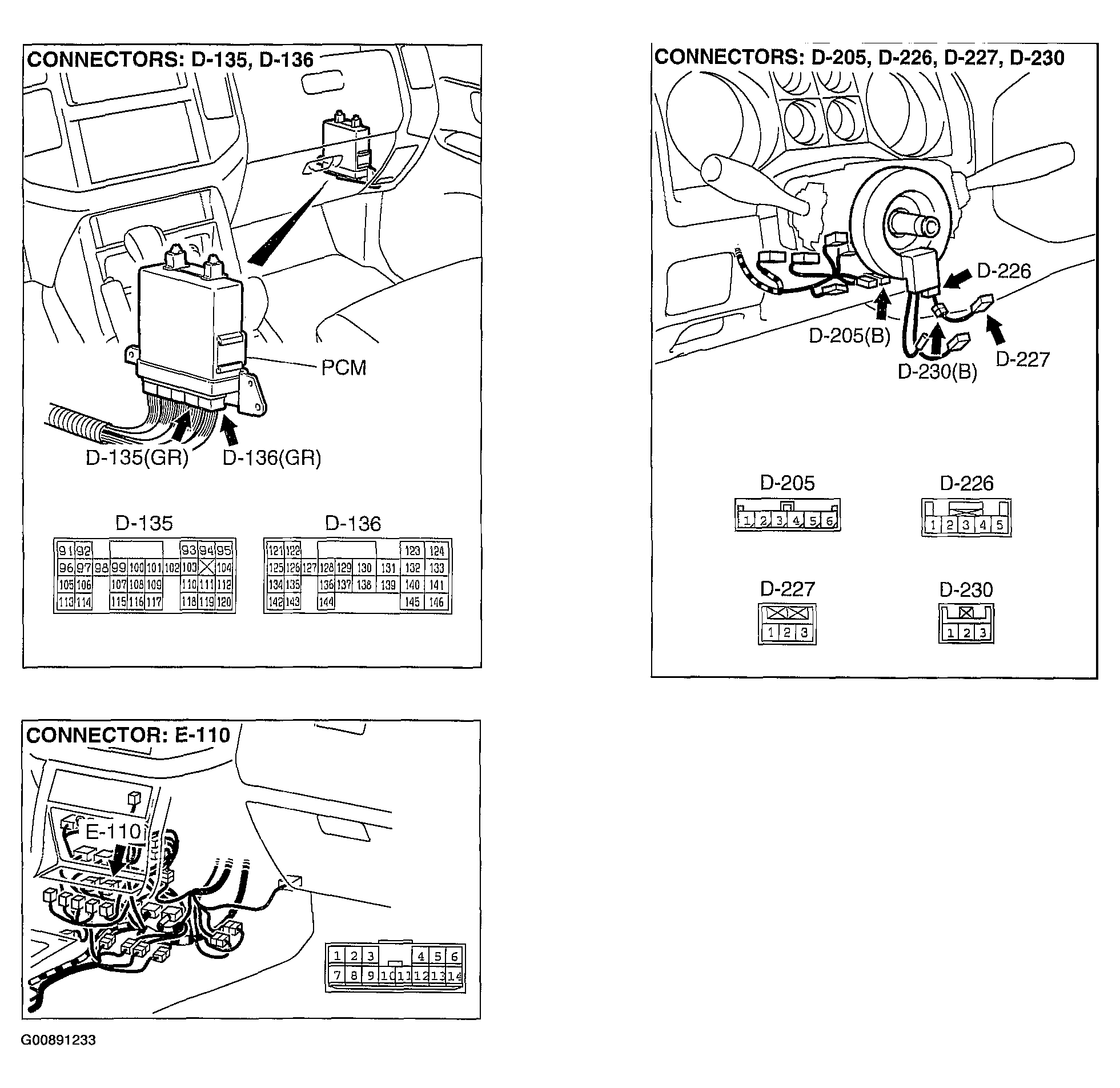

Fig 2: Identifying Connectors: D-135, D-136, D-205, D-227, D-230, E-110
G00891233Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
