DTC 22: Stoplight Switch System: Notes

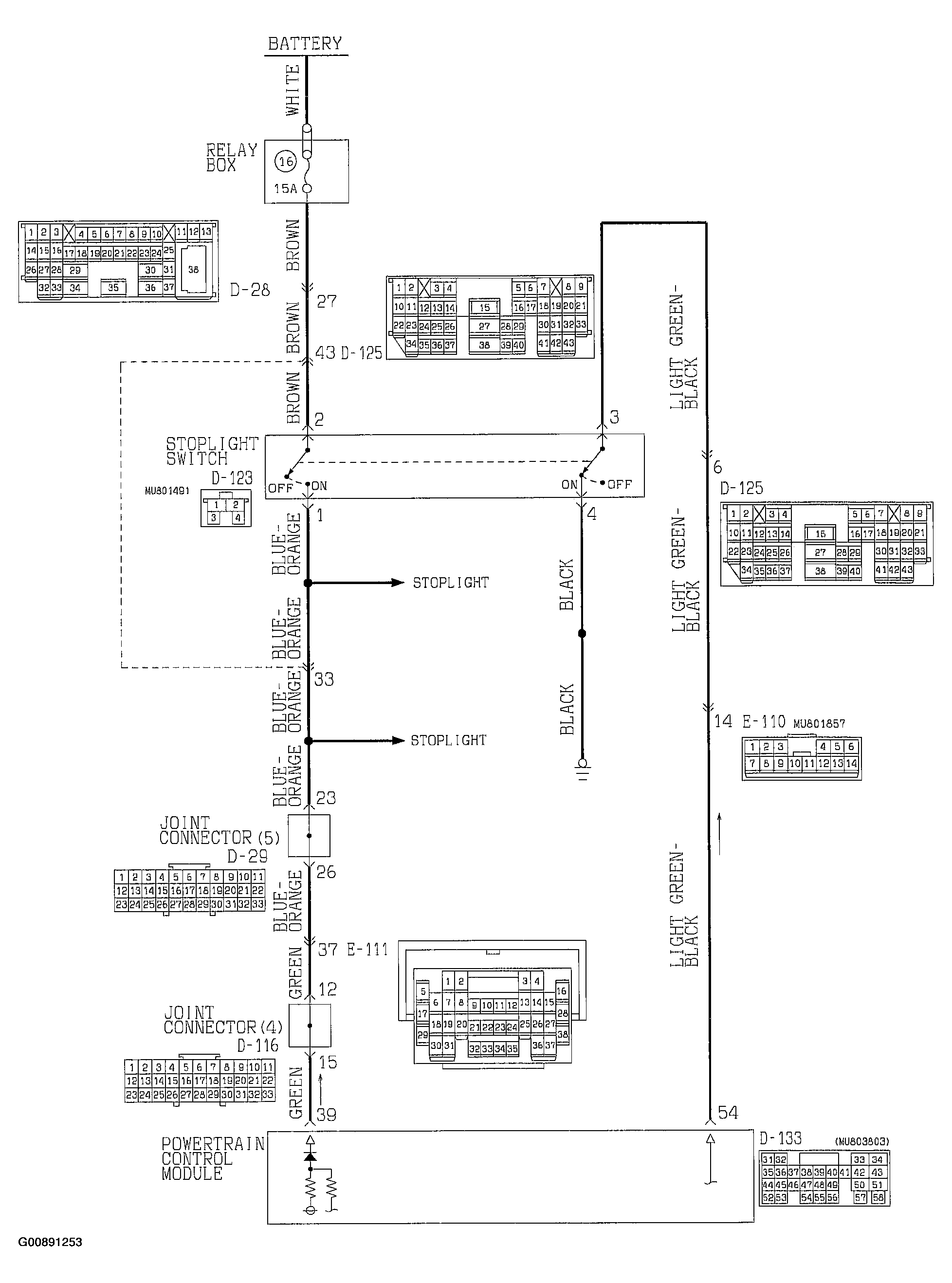

Fig 1: Identifying Stoplight Switch System Circuit Diagram
G00891253Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

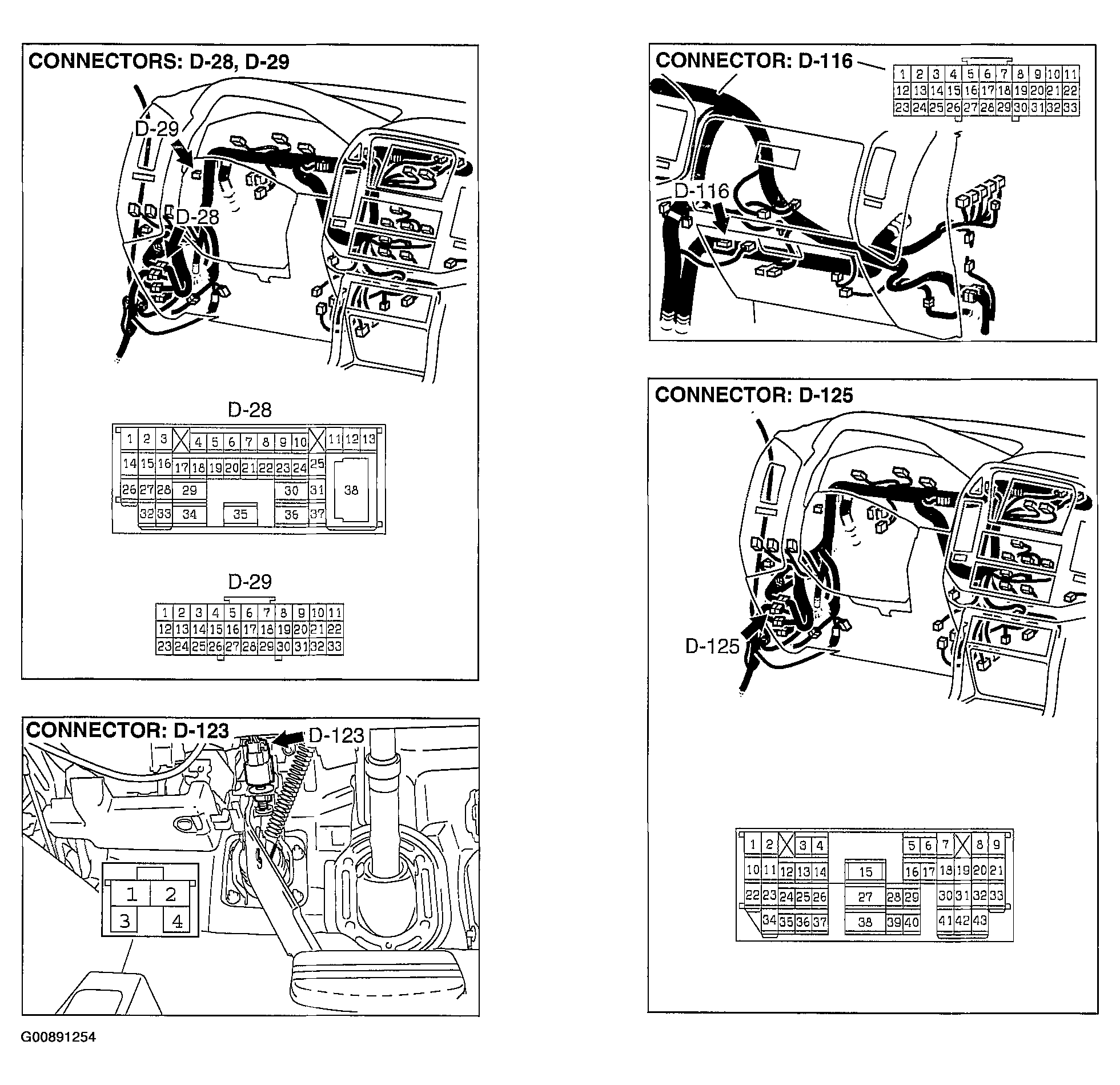

Fig 2: Identifying Auto Cruise Control Connectors: D-28, D-29, D-123, D-116, D-125
G00891254Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

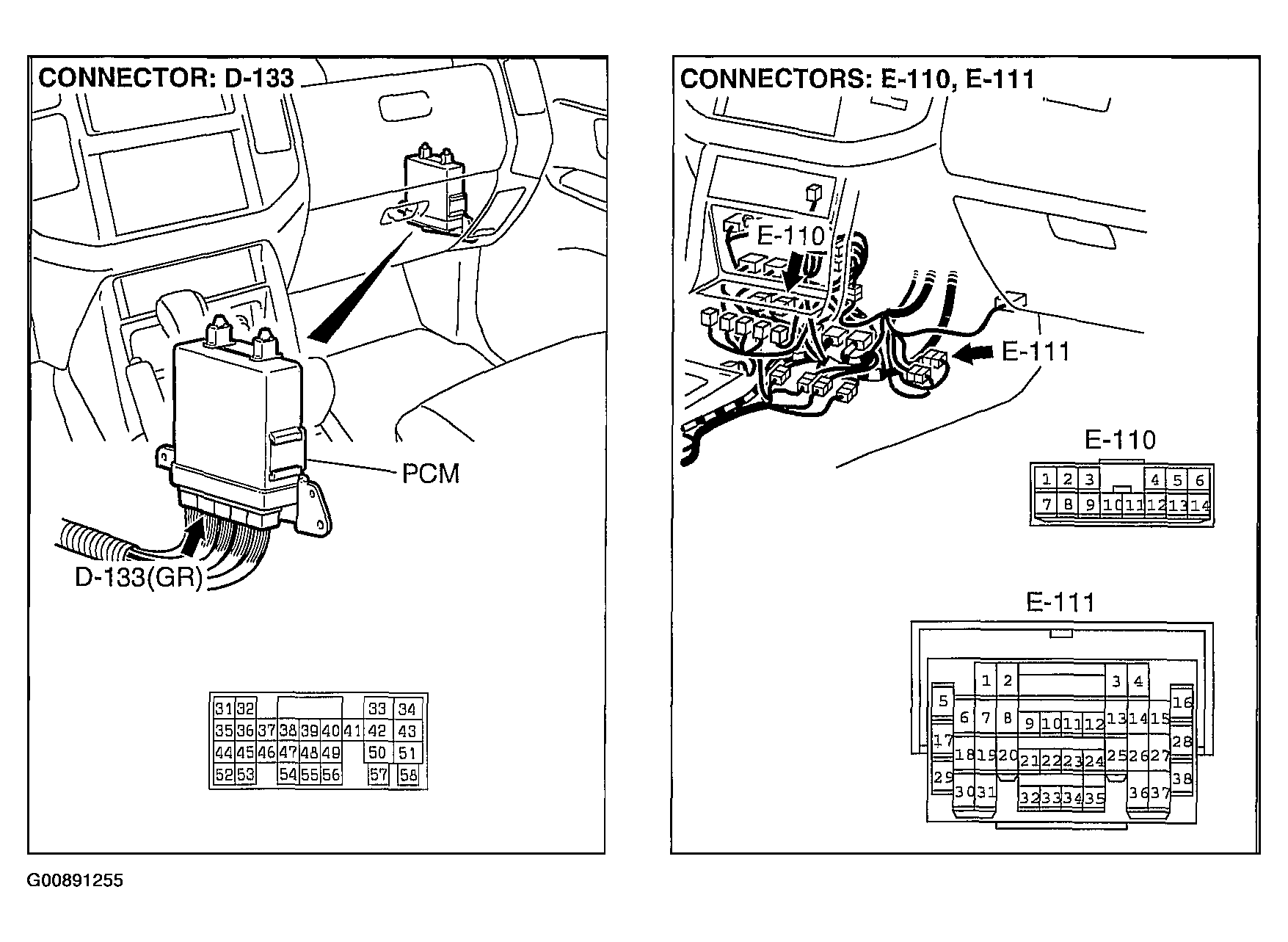

Fig 3: Identifying Auto Cruise Control Connectors: D-133, E-110, E-111
G00891255Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
