Construction Diagram: Notes

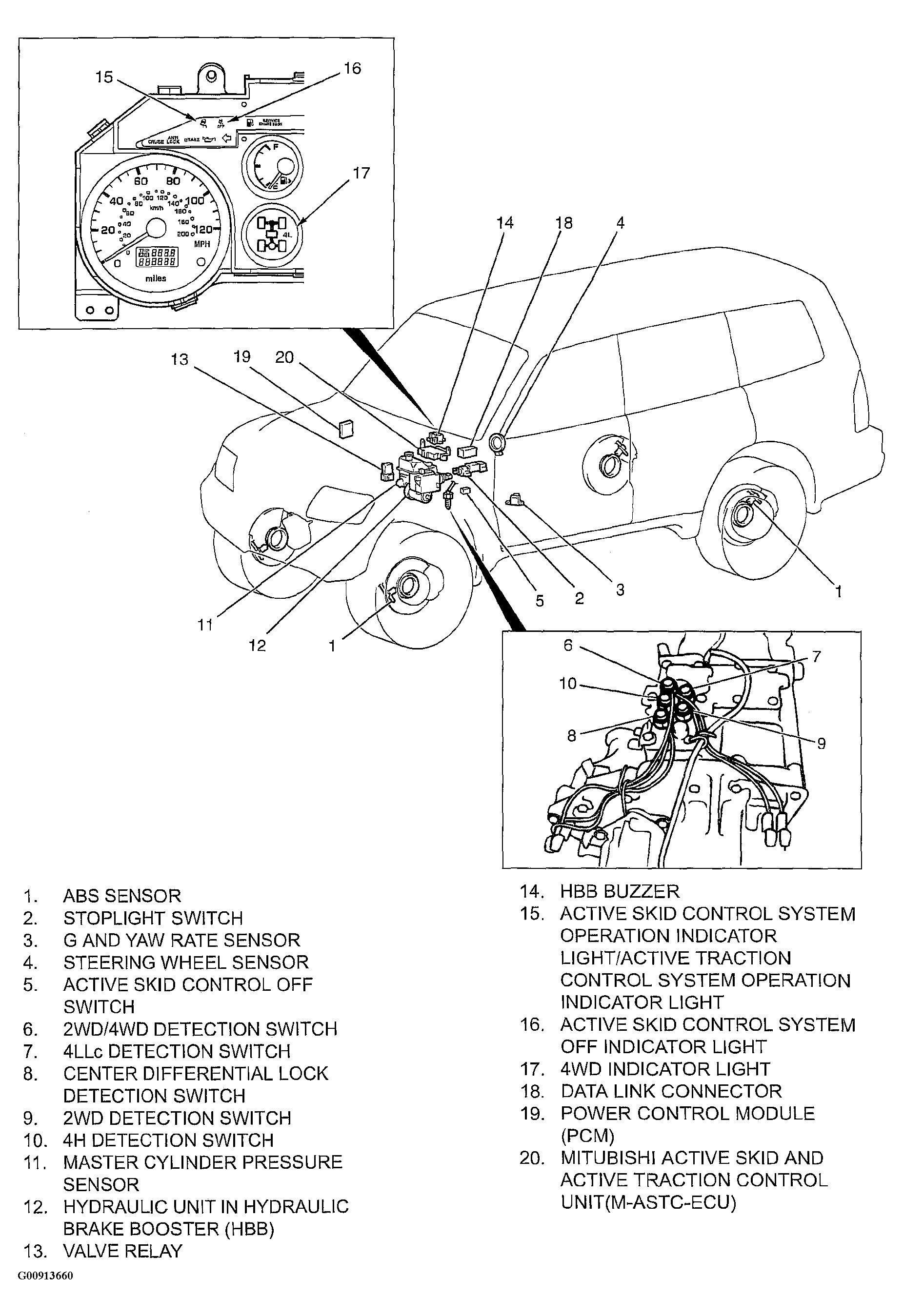

Fig 1: Identifying Traction Control System Construction
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
