Service Specifications: Transfer

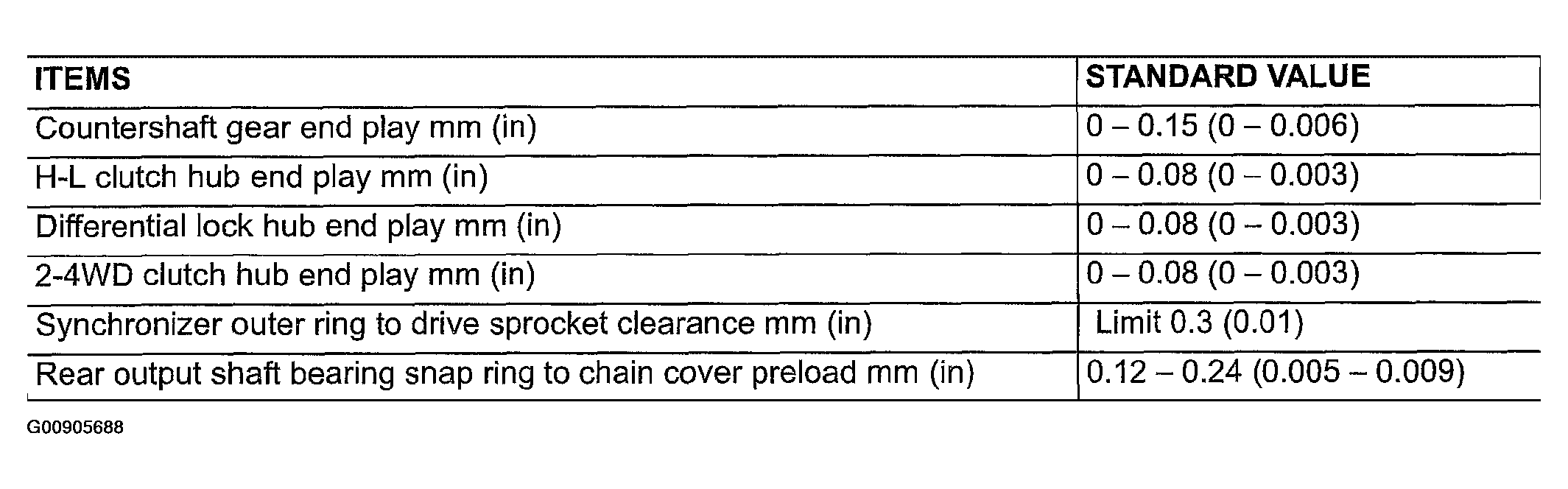

Fig 1: Service Specifications Transfer (1 Of 2)
G00905688Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

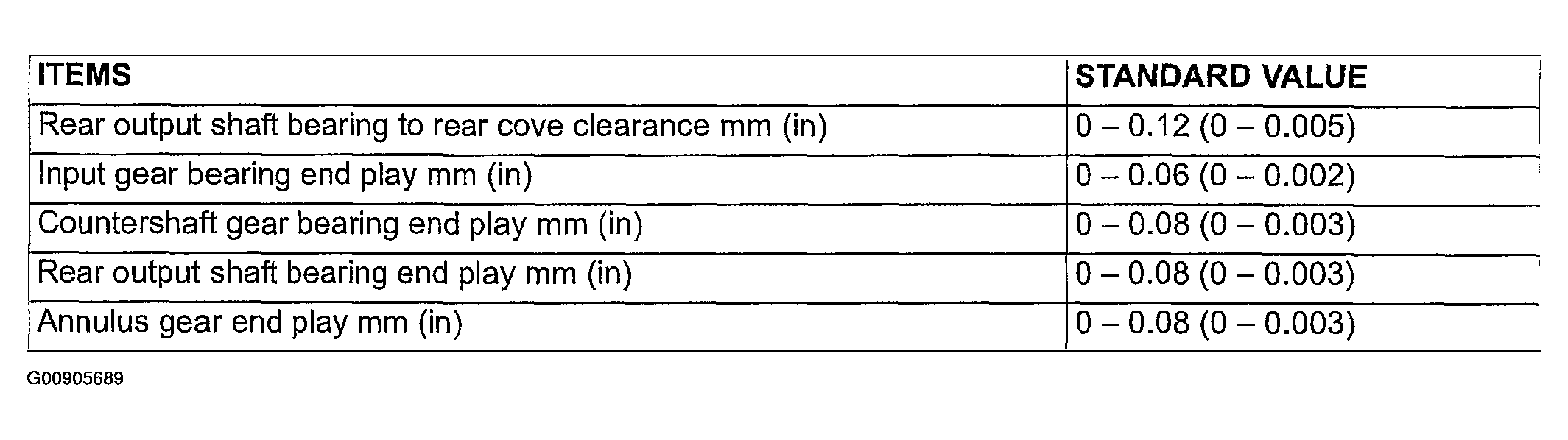

Fig 2: Service Specifications Transfer (2 Of 2)
G00905689Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
